Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

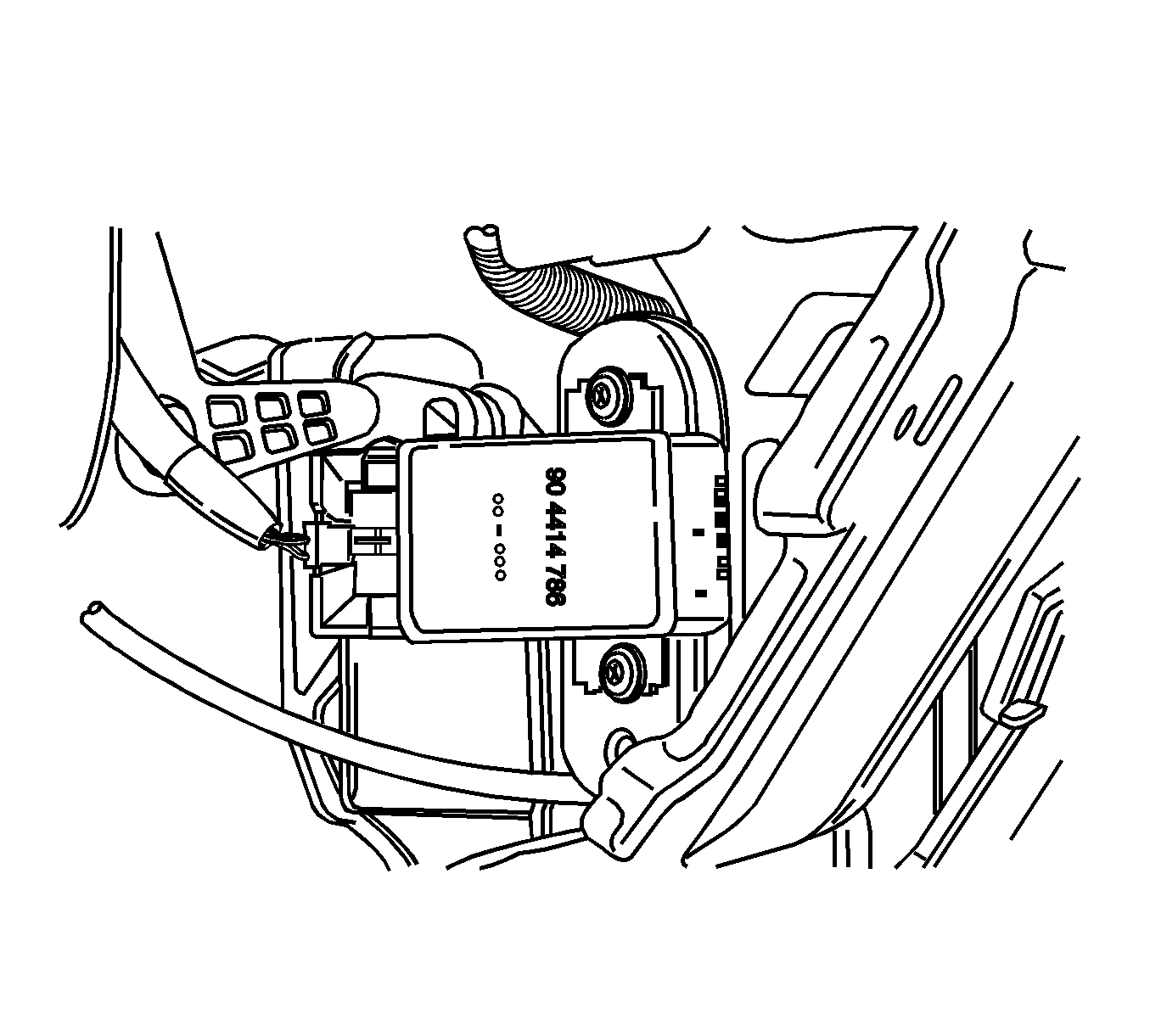

    Fig 1: View of Daytime Running Lap Module and Bolts
    GM1248415Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the daytime running lamp module with the bolts.

    Tighten:  Tighten the daytime running lamp module bolts to 2.5 N.m (22 lb in).

  2. Connect the electrical connector.
  3. Install the instrument panel lower cover.
  4. Connect the negative battery cable.
