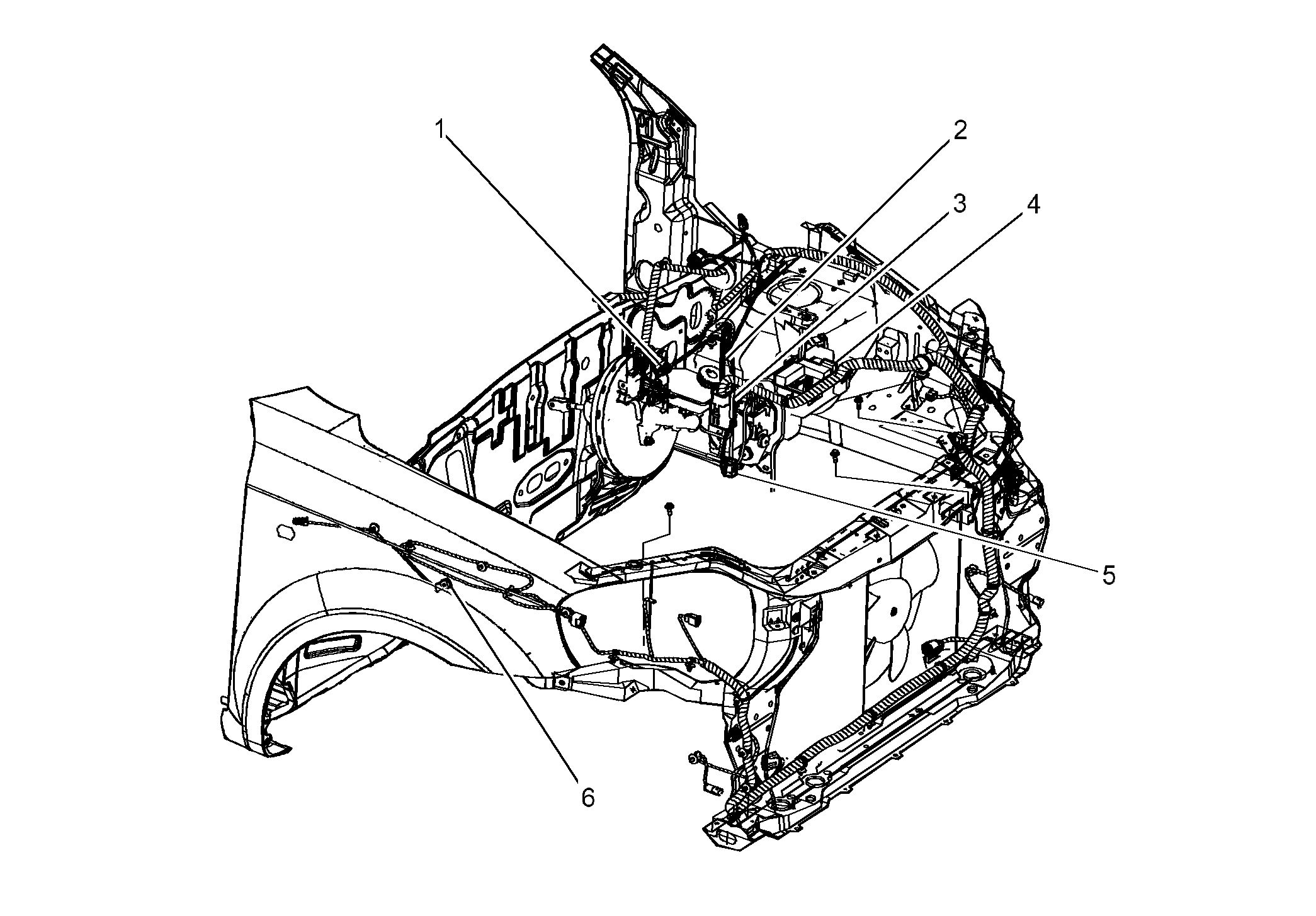

Antilock Brake System Component Views (Notchback)
WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Brake Fluid Sensor |
| 2 |
Front Wheel Speed Sensor - Left |
| 3 |
Electronic Brake Control Module (EBCM) and Brake Pressure Modulator Valve (BPMV) |
| 4 |
Engine Compartment Fuse Block |
| 5 |
Lamp Driver Module |
| 6 |
Front Wheel Speed Sensor - Right |
