P/S Pump Assembly Installation

  1. Install the power steering pump into the vehicle and install the two long power steering pump bolts.
    1. Tighten the power steering pump bolts to 25 N.m (18 lb-ft).
  2. Swing the power steering pump bracket down and install the front right side bolt.
    1. Tighten both of the right side power steering pump bracket bolts to 35 N.m (26 lb-ft).

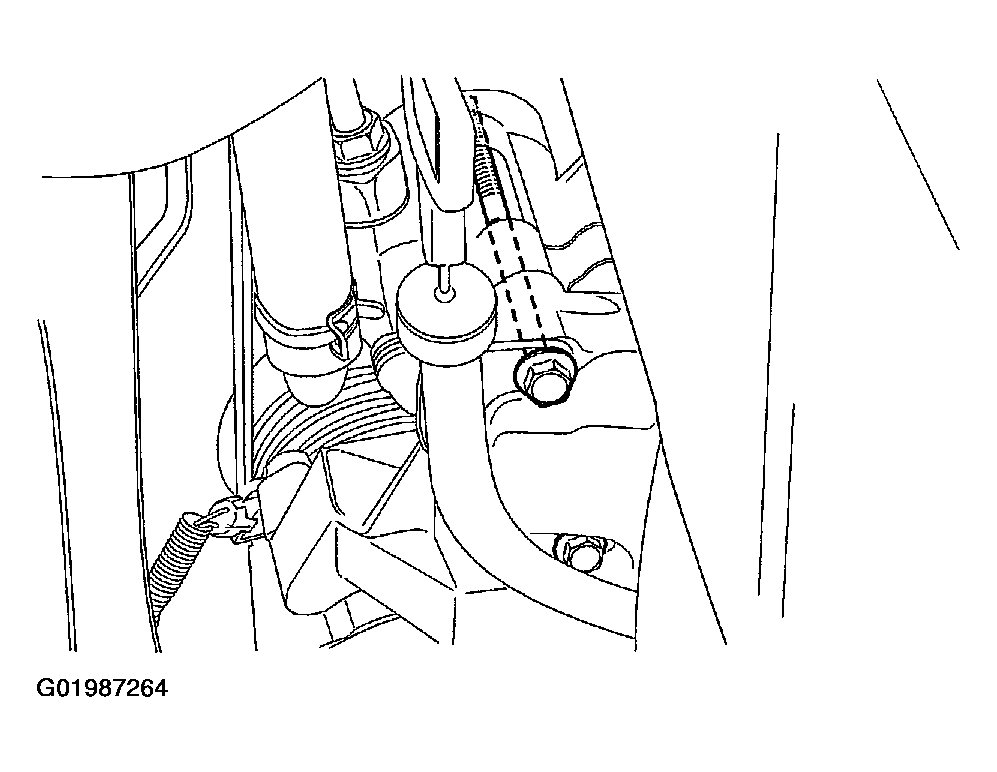

    3. Fig 1: Installing Front Right Side Bolt
    G01987264Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect the supply hose to the power steering pump.
  4. Connect the high-pressure hose fitting to the power steering pump.
    1. Tighten the high-pressure hose fitting to 28 N.m (21 lb-ft).

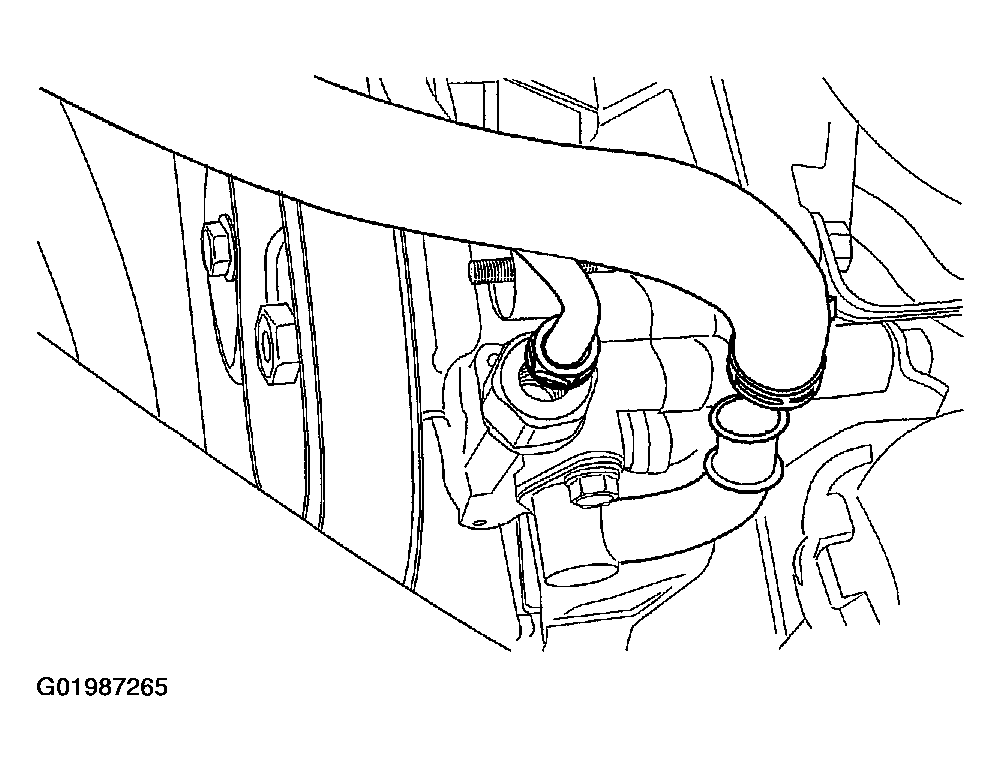

    5. Fig 2: Connecting High-Pressure Hose Fitting To Power Steering Pump
    G01987265Courtesy of SUZUKI OF AMERICA CORP.
  5. Install the serpentine accessory drive belt. Refer to Serpentine Accessory Drive Belt Installation  .
  6. Refill the power steering fluid. Refer to CHECKING AND ADDING FLUID .
  7. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
Fig 3: Bleeding Power Steering System
G01987266Courtesy of SUZUKI OF AMERICA CORP.
