VIS Solenoid Installation

  1. Installation should follow the removal procedure in the reverse order.

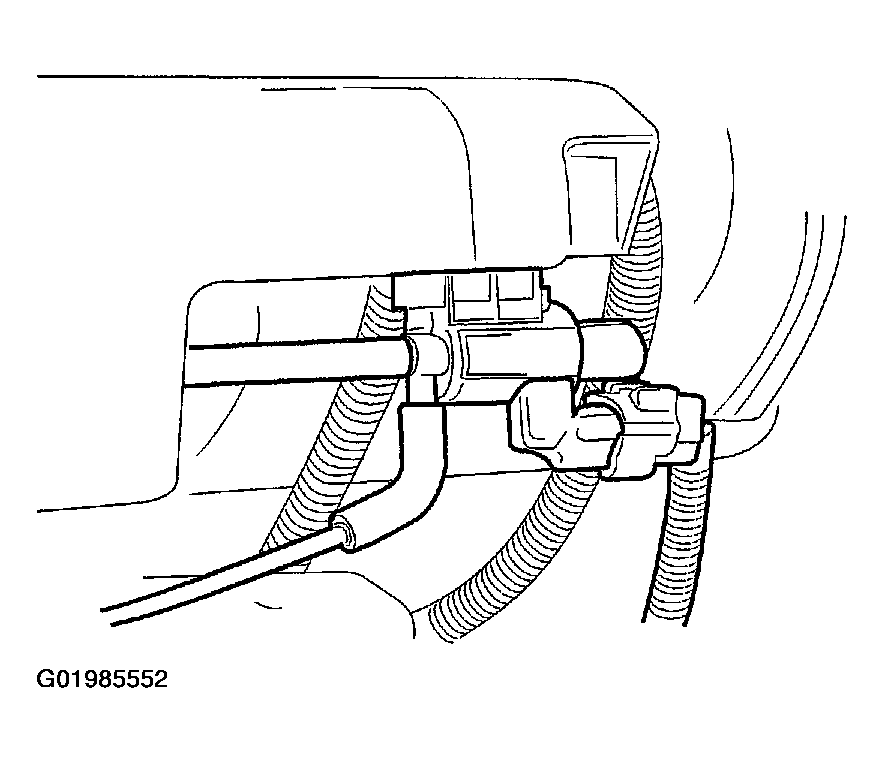

Fig 1: Installing VIS Solenoid In Reverse Order
G01985552Courtesy of SUZUKI OF AMERICA CORP.
