DTC P1670: CAN Communication Error (No Message from ABS Module): Notes

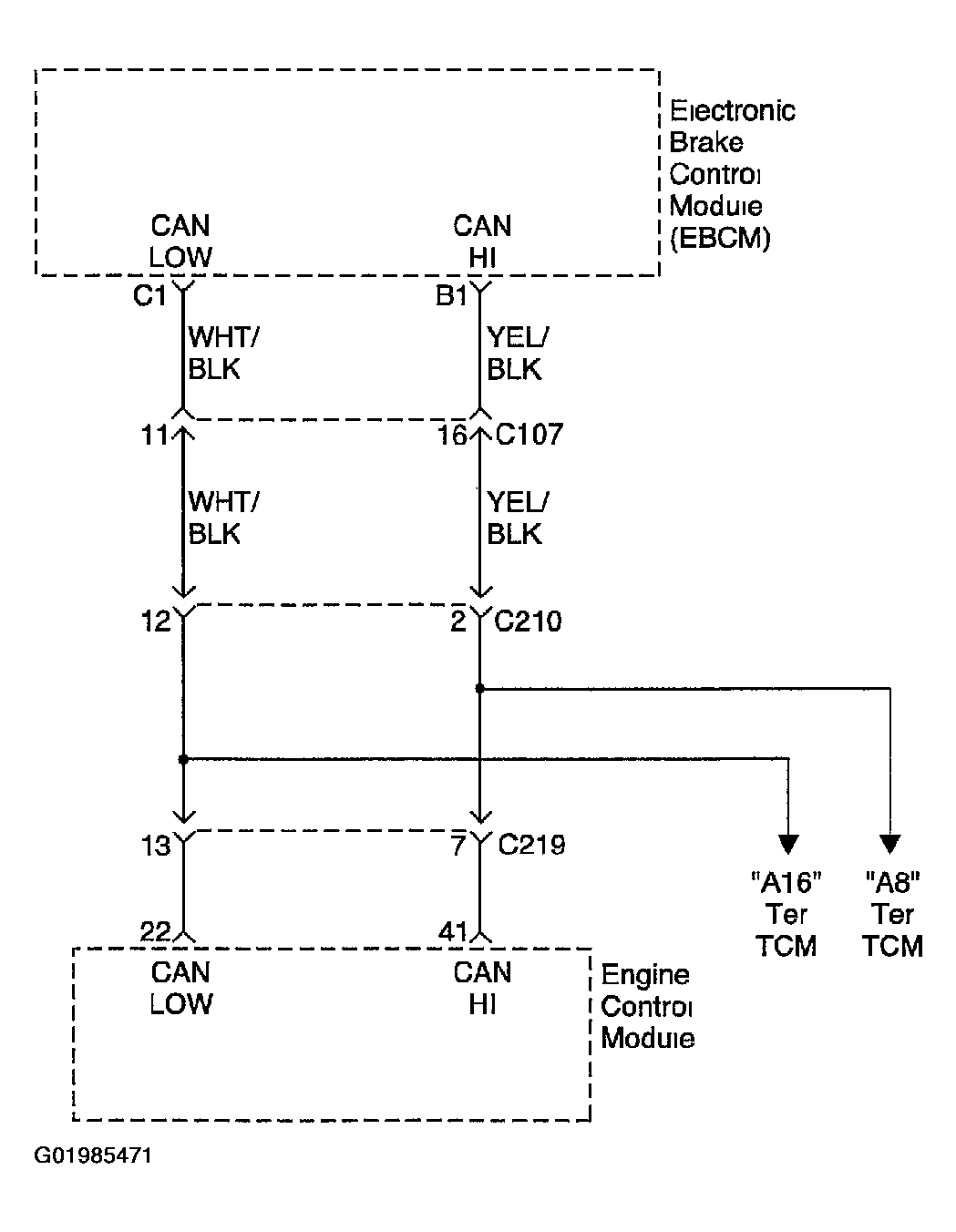

Fig 1: DTC P1670: CAN Communication Error (No Message from ABS Module) - System Wiring Diagram
G01985471Courtesy of SUZUKI OF AMERICA CORP.
