DTC P1673: CAN Communication Error (ECM Cannot Emit Message): Notes

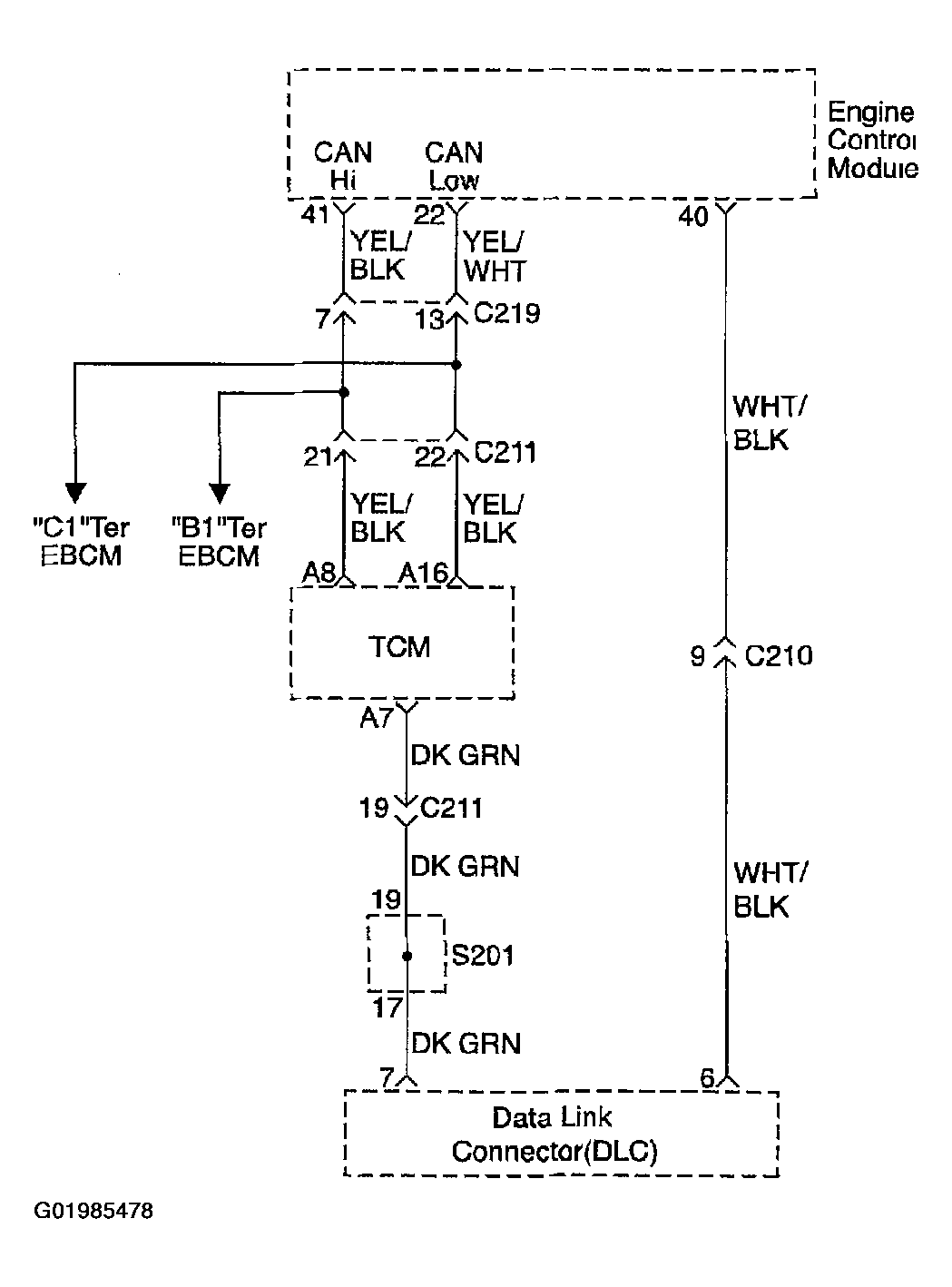

Fig 1: DTC P1673 CAN Communication Error (ECM Cannot Emit Message) - System Wiring Diagram
G01985478Courtesy of SUZUKI OF AMERICA CORP.
