Main Relay Circuit Check: Notes

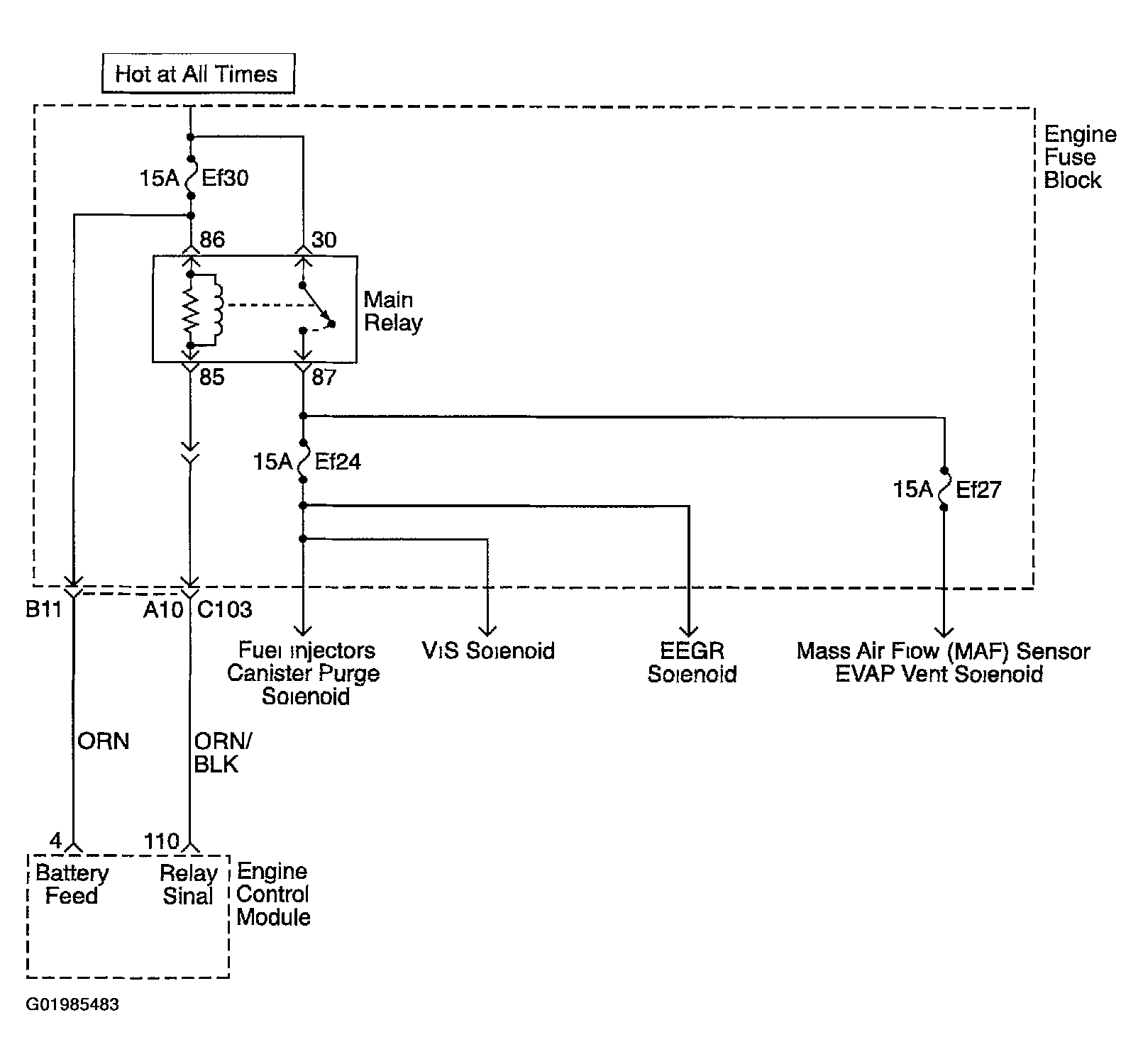

Fig 1: Main Relay Circuit Check - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
