Speed Sensitive Power Steering (SSPS) Control Module Installation

1. Connect the electrical connector to the SSPS control module.

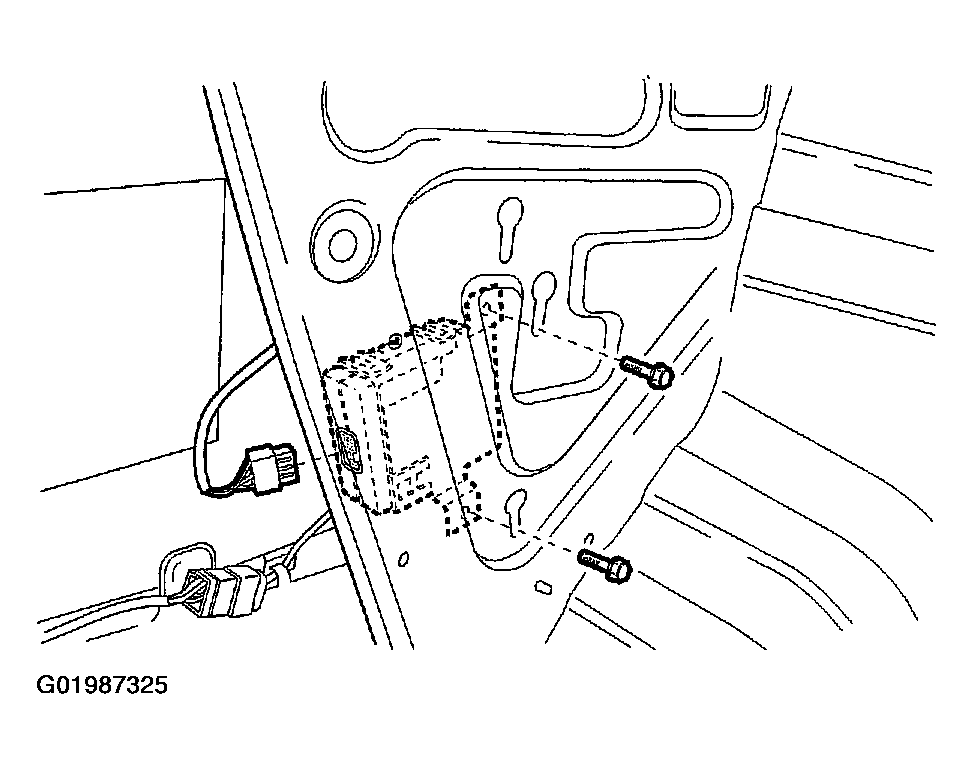

Fig 1: Connecting Electrical Connector To SSPS Control Module
Courtesy of SUZUKI OF AMERICA CORP.
2. Install the SSPS control module with bolts.
   1. Tighten the SSPS control module securing bolts to 9 N.m (80 lb-in).
3. Install the luggage compartment wheel house trim panel. Refer to LUGGAGE COMPARTMENT WHEELHOUSE TRIM PANEL INSTALLATION .

Fig 2: Installing Luggage Compartment Wheel House Trim Panel

Courtesy of SUZUKI OF AMERICA CORP.
