Speed Sensitive Power Steering (SSPS) Control Module Removal

1. Disconnect negative battery cable.
2. Remove the luggage compartment wheel house trim panel. Refer to LUGGAGE COMPARTMENT WHEELHOUSE TRIM PANEL REMOVAL .
3. Release the SSPS control module securing bolts and remove the module by sliding upwards.

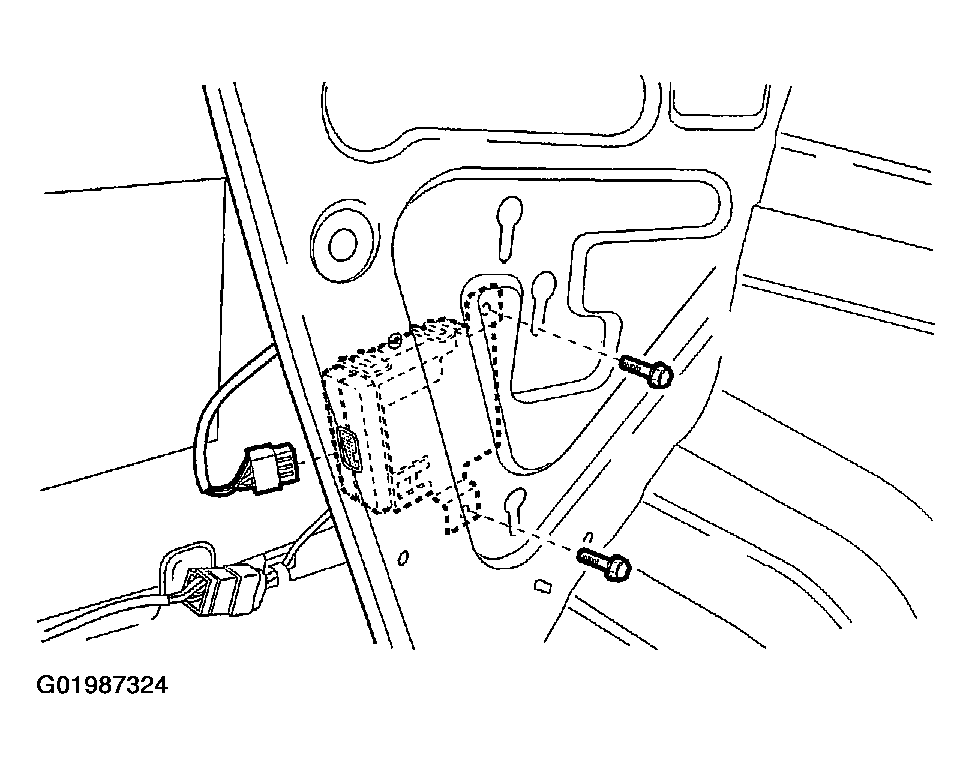

Fig 1: Removing Module Sliding Upwards
Courtesy of SUZUKI OF AMERICA CORP.
4. Disconnect the electrical connector from the SSPS control module.

Fig 2: Disconnecting Electrical Connector From SSPS Control Module

Courtesy of SUZUKI OF AMERICA CORP.
