Refrigerant Filter: Service and Repair

A/C Filter Element Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Open glove box, then remove screw.
3. Remove glove box.




4. Remove filter cover (1).




5. Pull out filter element (1).

Installation




Reverse removal procedure for installation noting the followings:
- Install filter into blower unit by paying attention to direction of arrow on filter.
- Enable air bag system after installation of filter. Refer to Enabling Air Bag System.




A/C Filter Element Cleaning

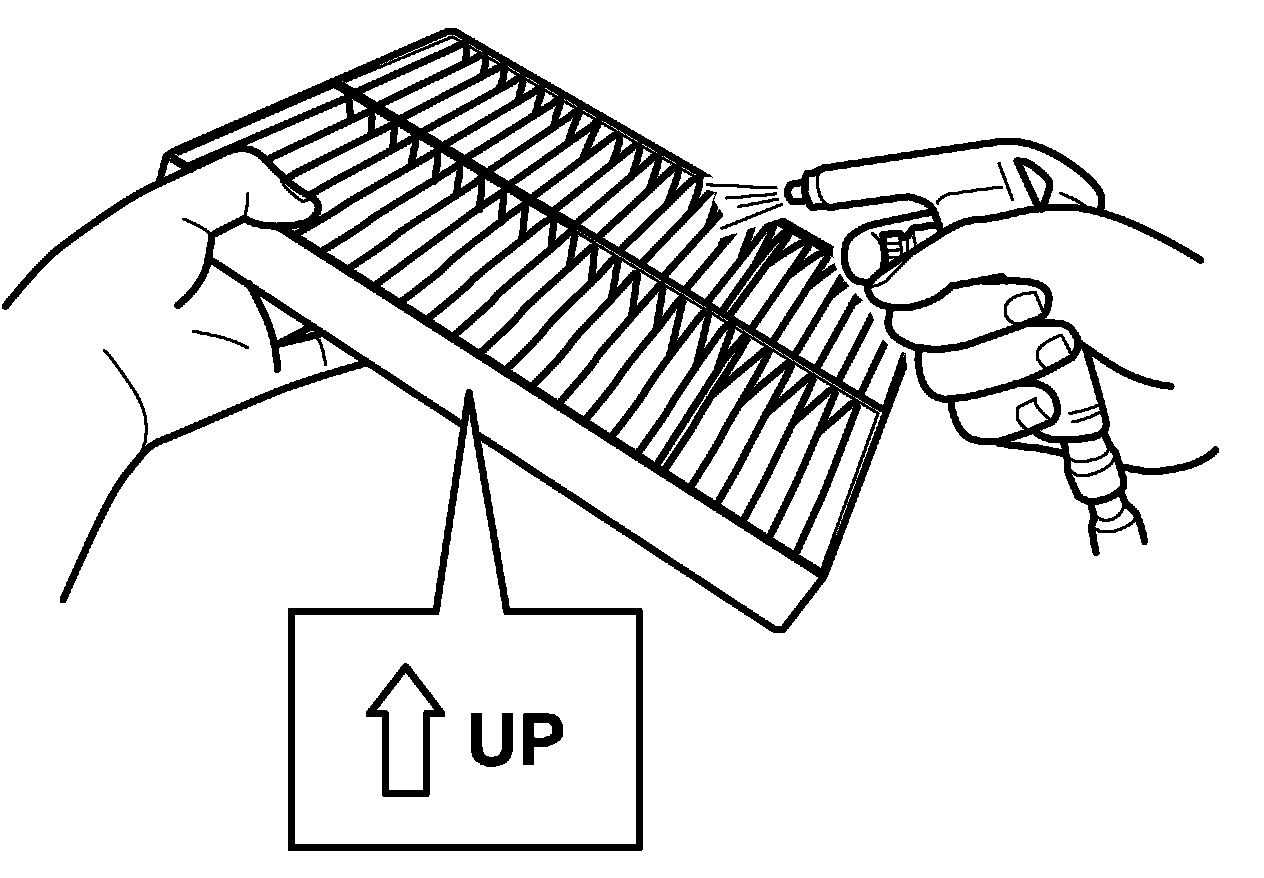

Blow compressed air on air outlet side of the filter element.
