PCV System Location

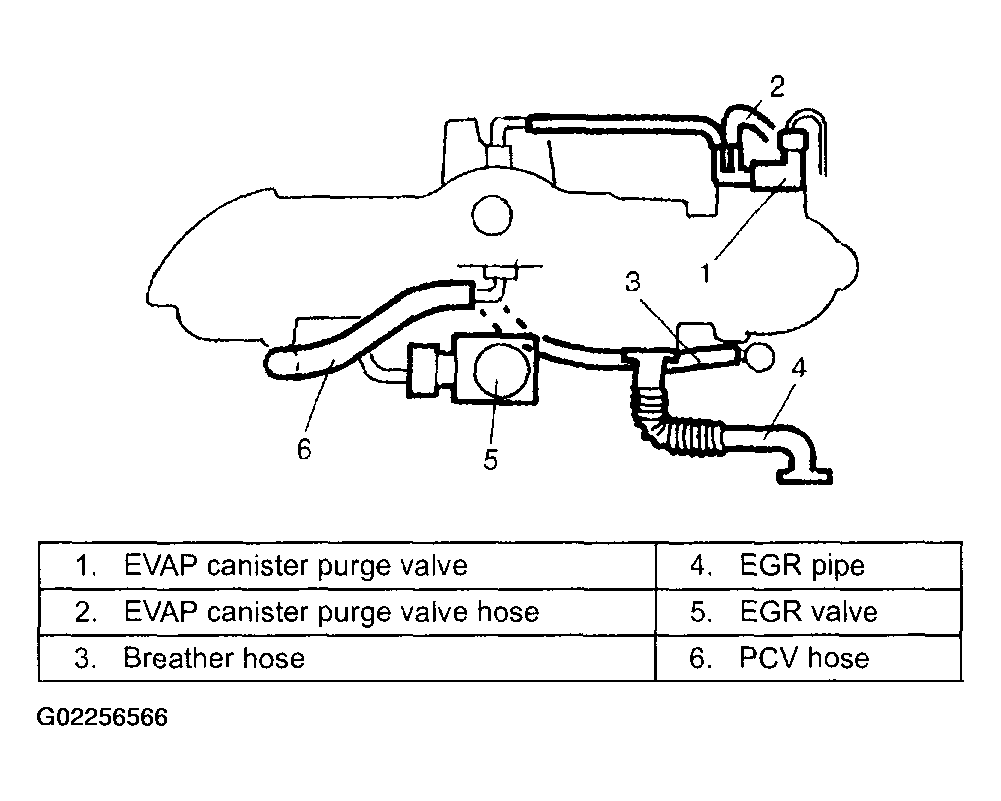

Fig 1: Identifying PCV System Location

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Be sure to check that there is no obstruction in PCV valve or its hoses before checking engine idle speed / IAC duty for obstructed PCV valve or hose hampers its accurate checking.
