Electronic Control System Flow Chart

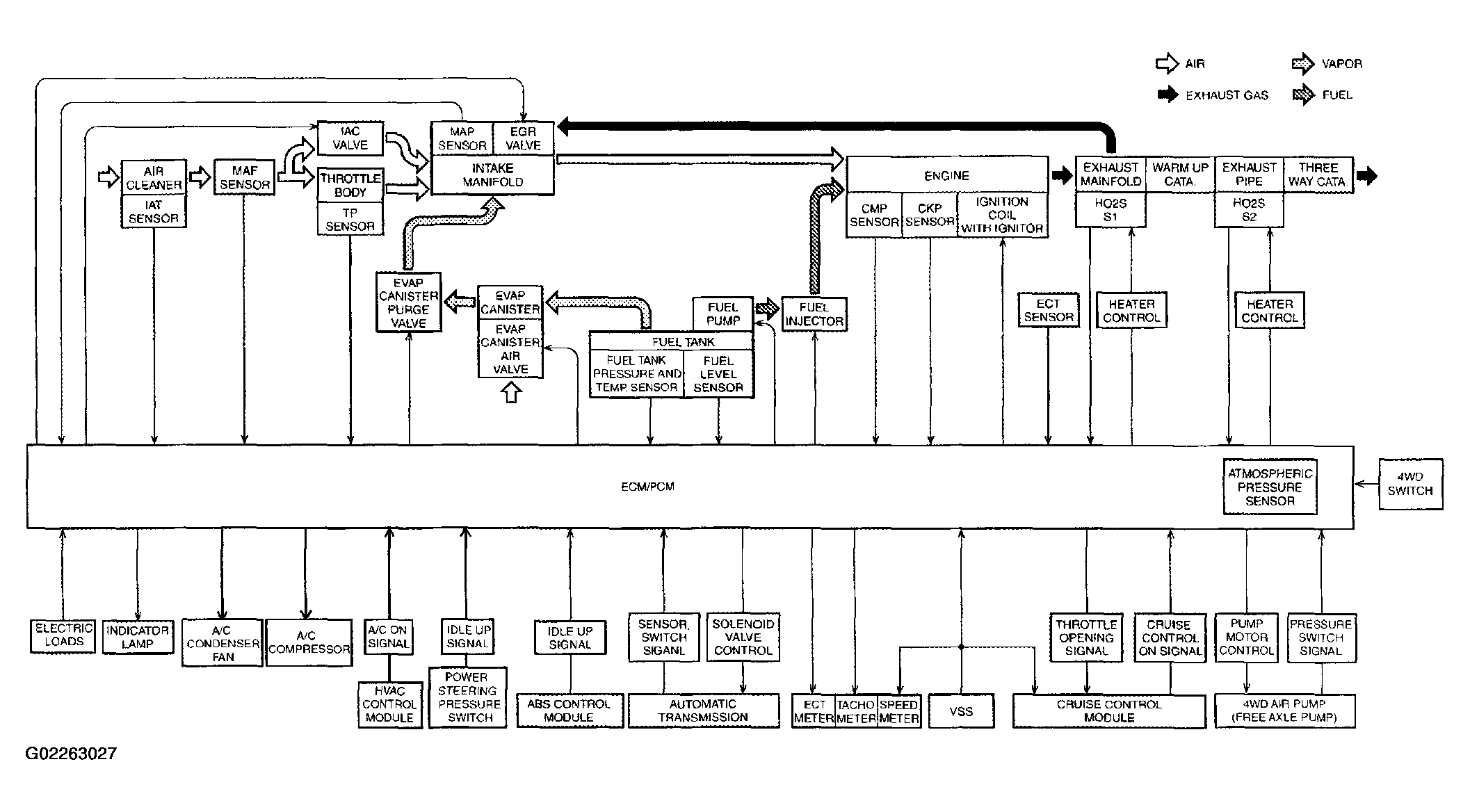

Fig 1: Electronic Control System Flow Chart
Courtesy of SUZUKI OF AMERICA CORP.
