XL-7 EX, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine General Information & Diagnosis
>>
H25 Engine
>>
General Description
>>
Electronic Control System Description
>>
Electronic Control System Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Electronic Control System Location

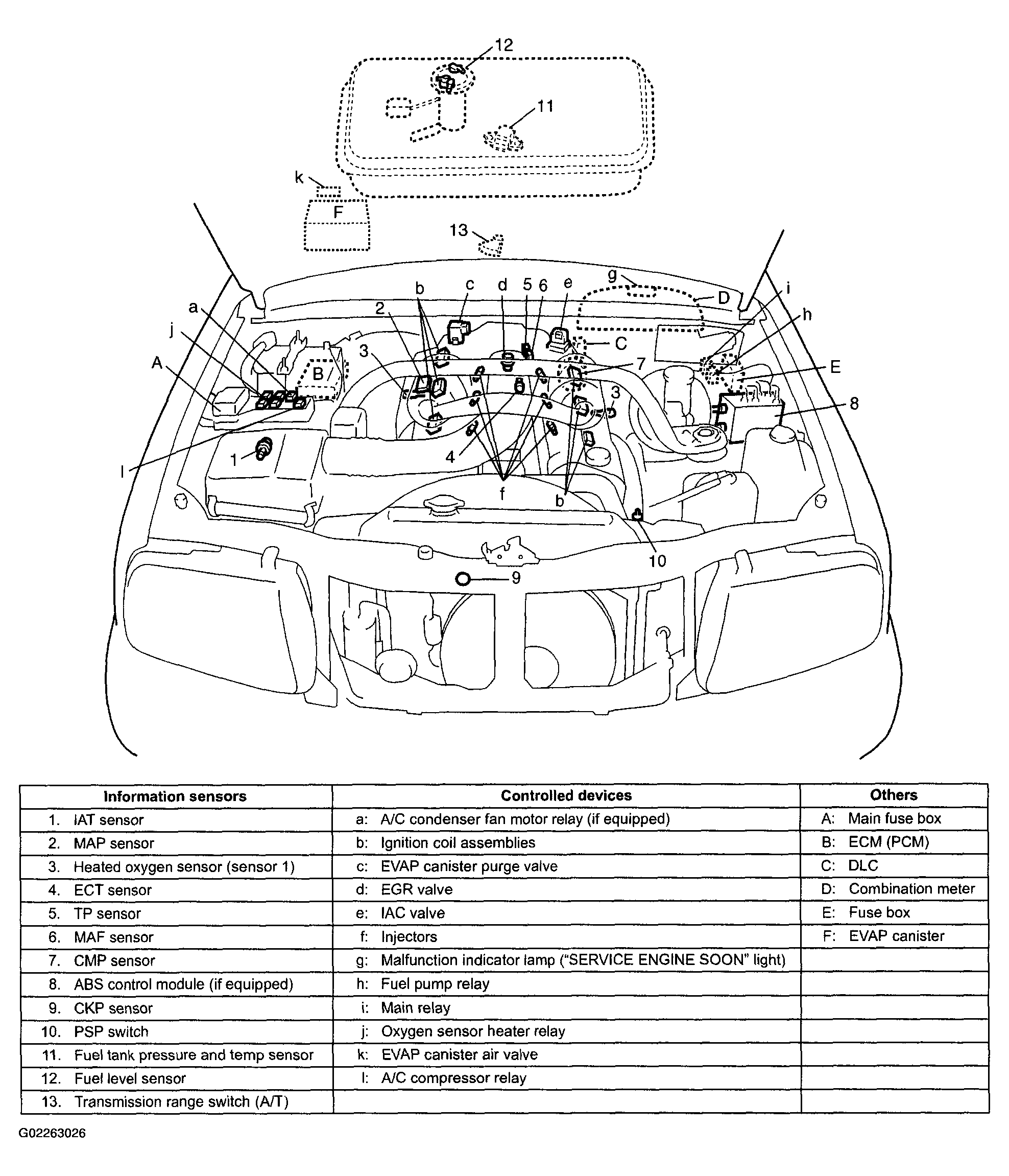

Fig 1: Locating Electronic Control System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
