Registered VIN Data Check

Connect SUZUKI scan tool to data link connector (DLC) (1) located on underside of instrument panel at driver's seat side.
Special tool

(A): SUZUKI scan tool

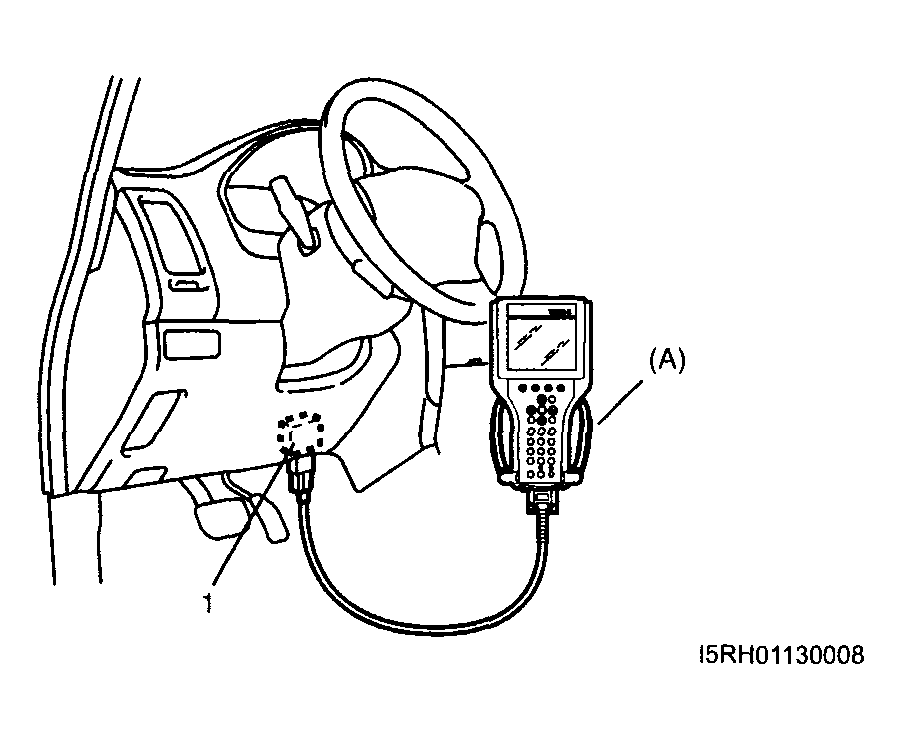

Fig 1: Connecting SUZUKI Scan Tool To Data Link Connector (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Turn ignition switch to ON position.
Select "VIN registration" command in SELECT MODE menu of SUZUKI scan tool.
Confirm whether code of 17 digits displayed on SUZUKI scan tool is corresponding to VIN shown on the left side of instrument panel.
If does not correspond, register VIN (vehicle identification number) data into ECM referring to "VIN REGISTRATION :".
Push "EXIT" button of SUZUKI scan tool.
