Electronic Shift Control System Components Location

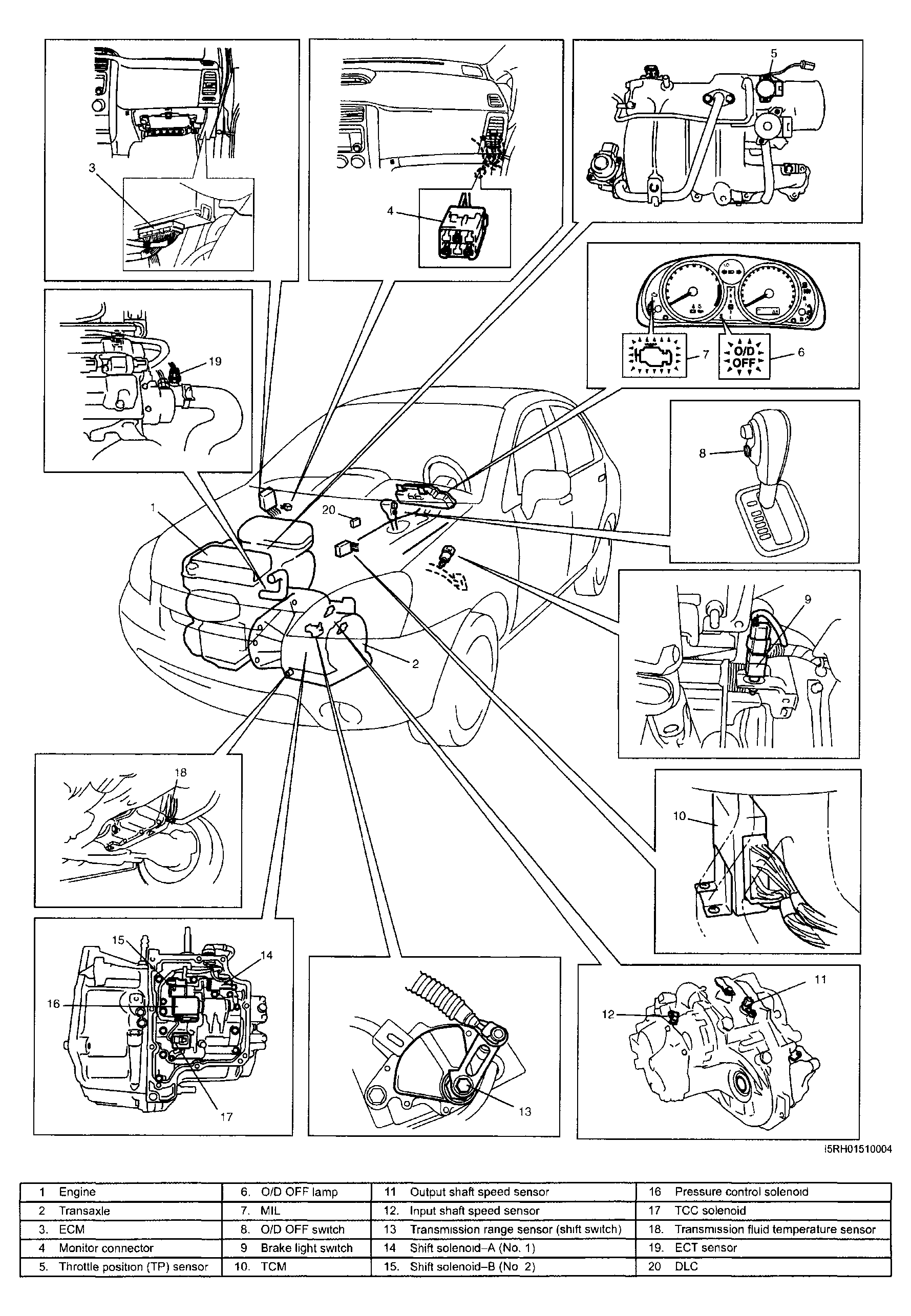

Fig 1: Identifying Electronic Shift Control System Components Location
G04014937Courtesy of SUZUKI OF AMERICA CORP.
