Automatic Transaxle Assembly Components

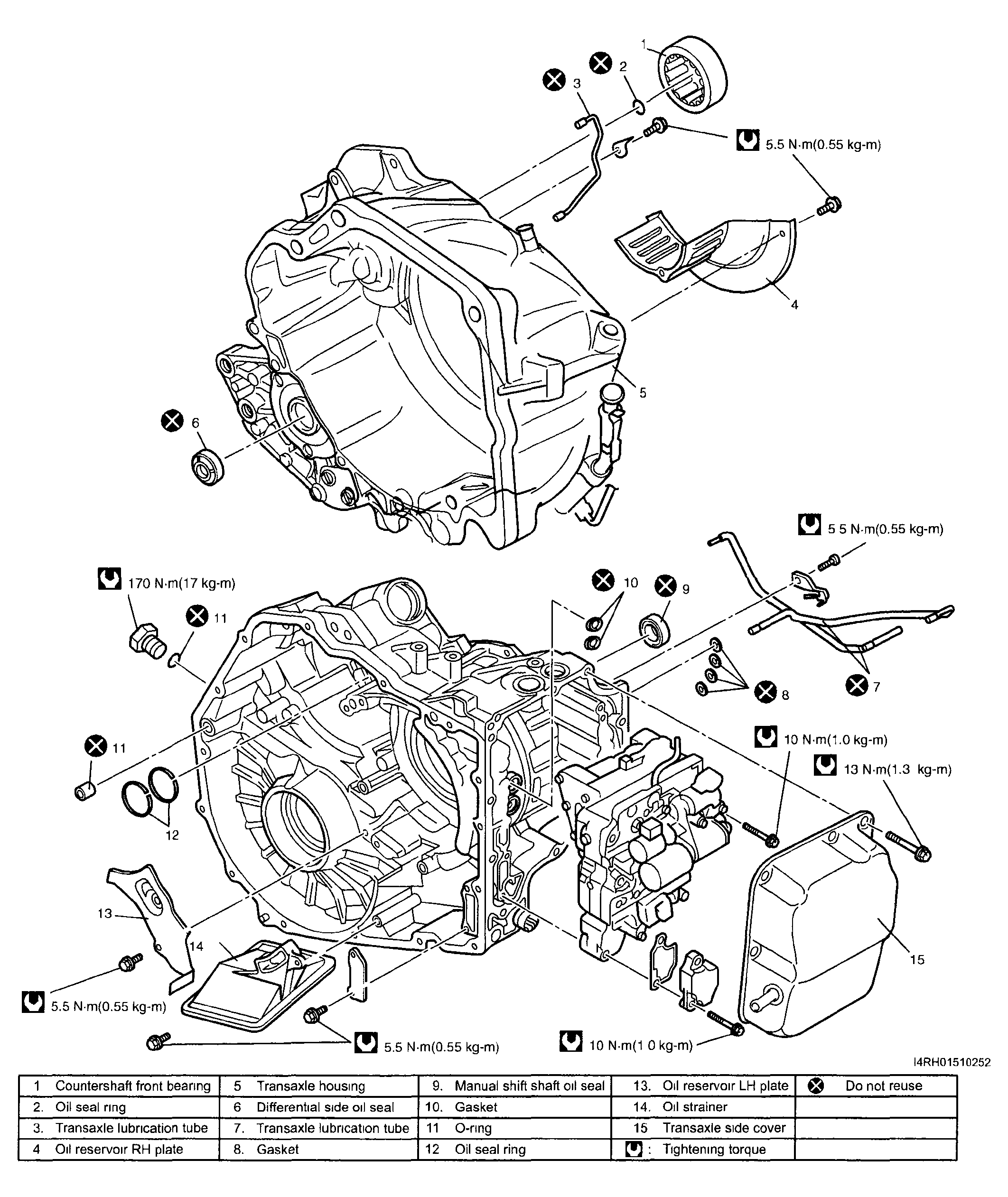

Fig 1: Exploded View Of Automatic Transaxle Assembly Components (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

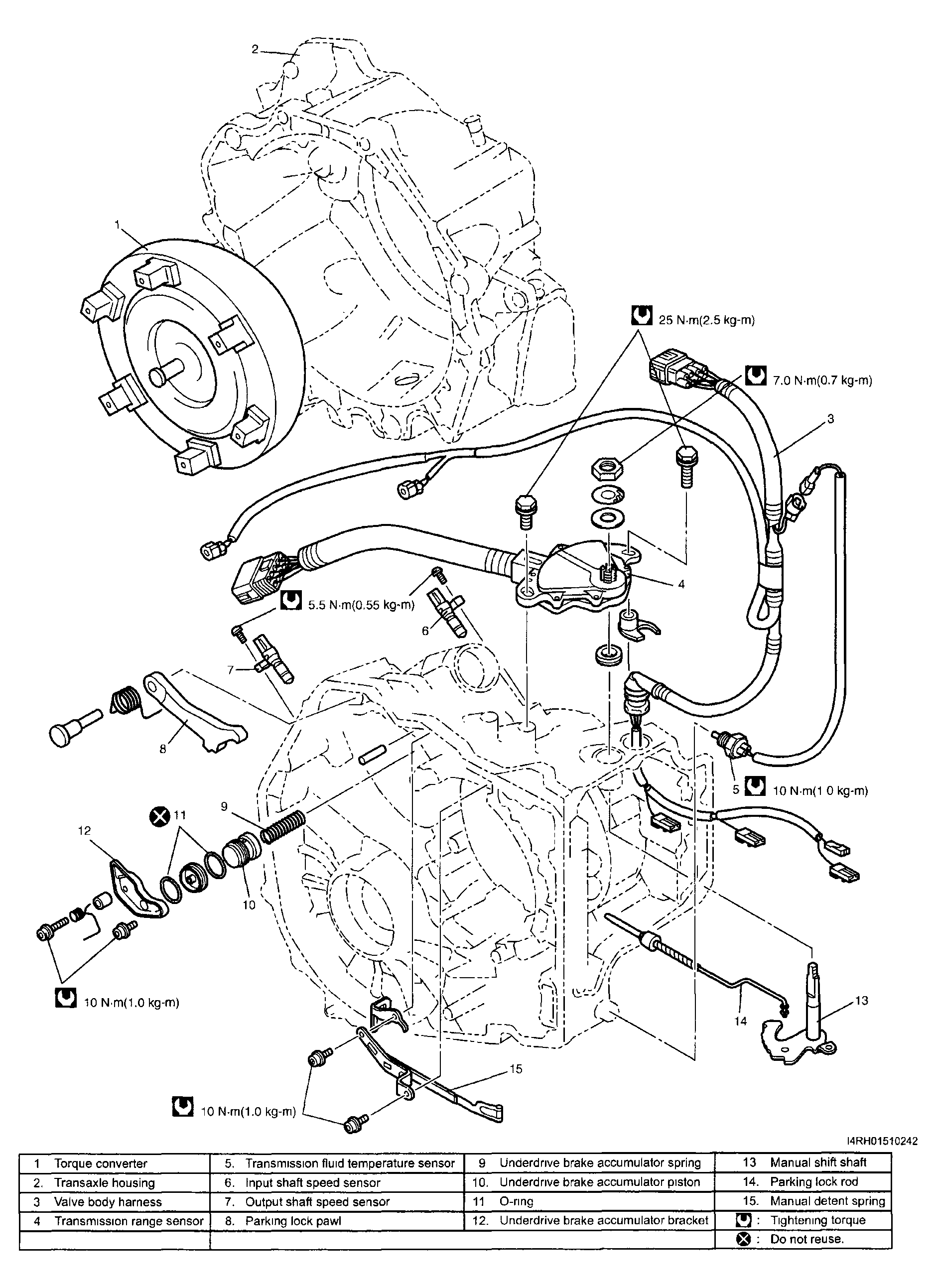

Fig 2: Exploded View Of Automatic Transaxle Assembly Components (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

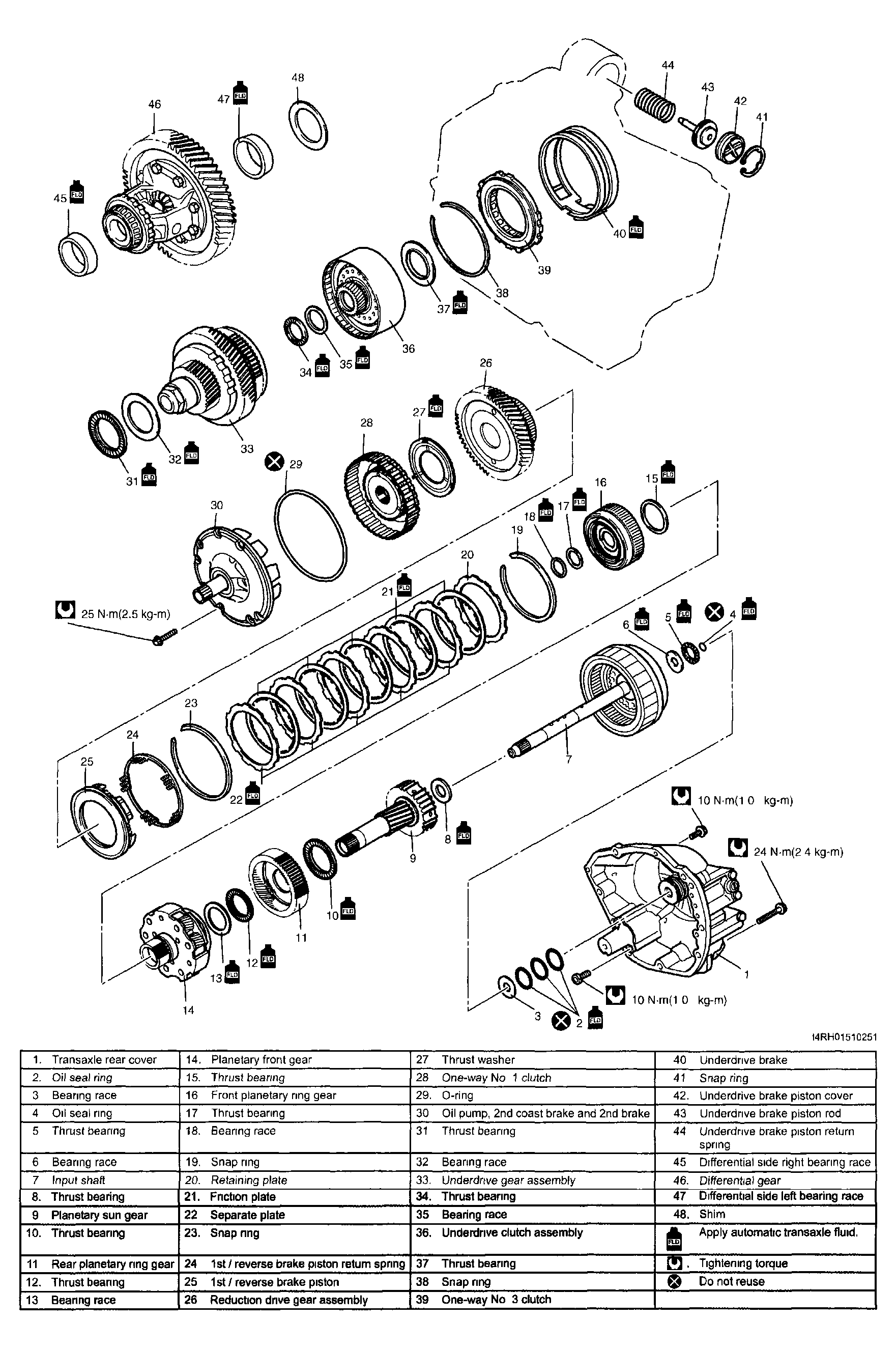

Fig 3: Exploded View Of Automatic Transaxle Assembly Components (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
