Automatic Transaxle Unit Components

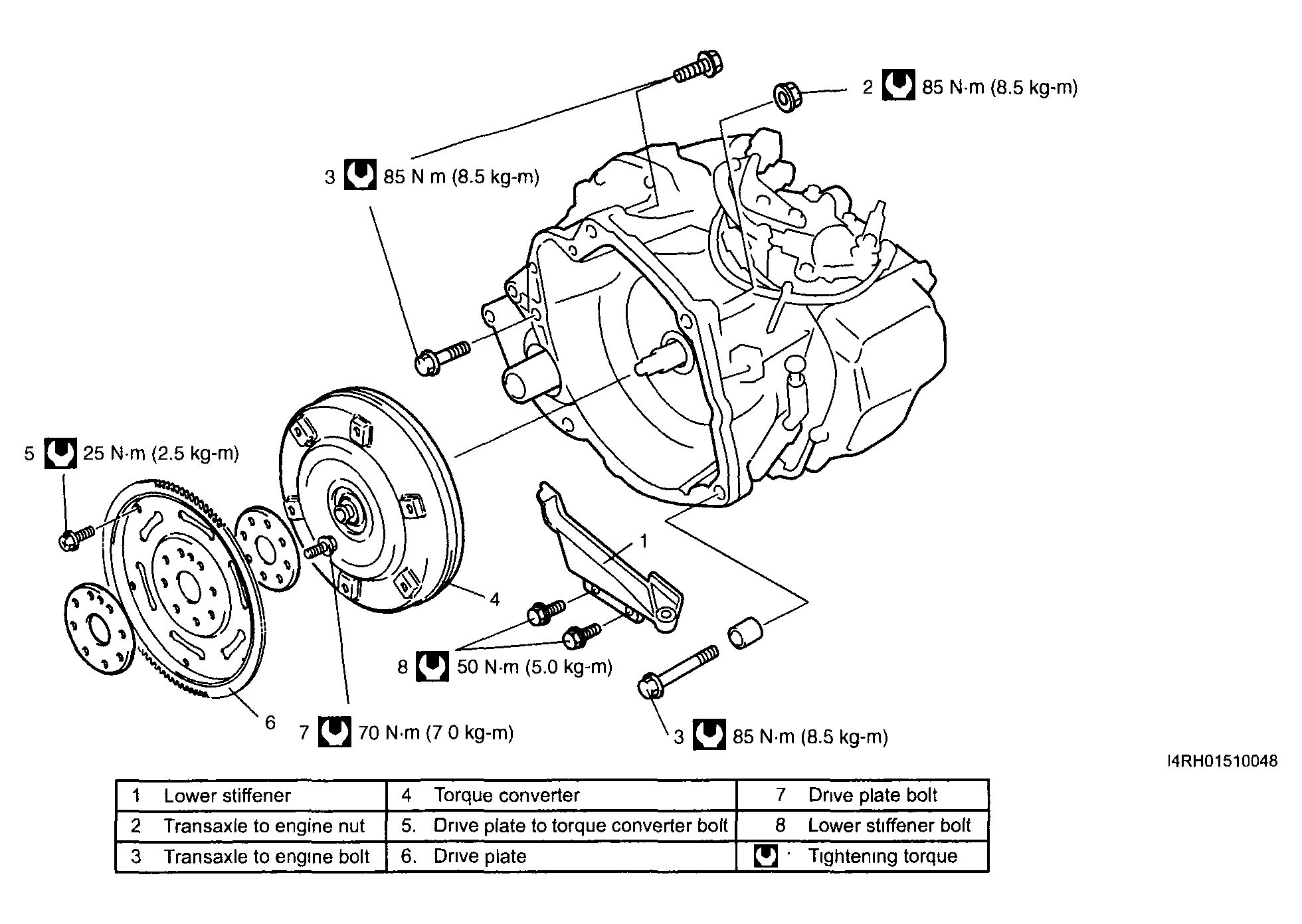

Fig 1: Exploded View Of Automatic Transaxle Unit Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
