Engine Control Module (ECM) Removal and Installation: Removal

1. Disconnect battery negative cable at battery.
2. Disable air bag system, refer to DISABLING AIR BAG SYSTEM .
3. Remove glove box. See INSTRUMENT PANEL REMOVAL AND INSTALLATION .
4. Disconnect connectors (1) from ECM while releasing connectors lock.
5. Remove ECM from body after removing its nuts (2).

NOTE: Be careful not to damage ventilation duct.

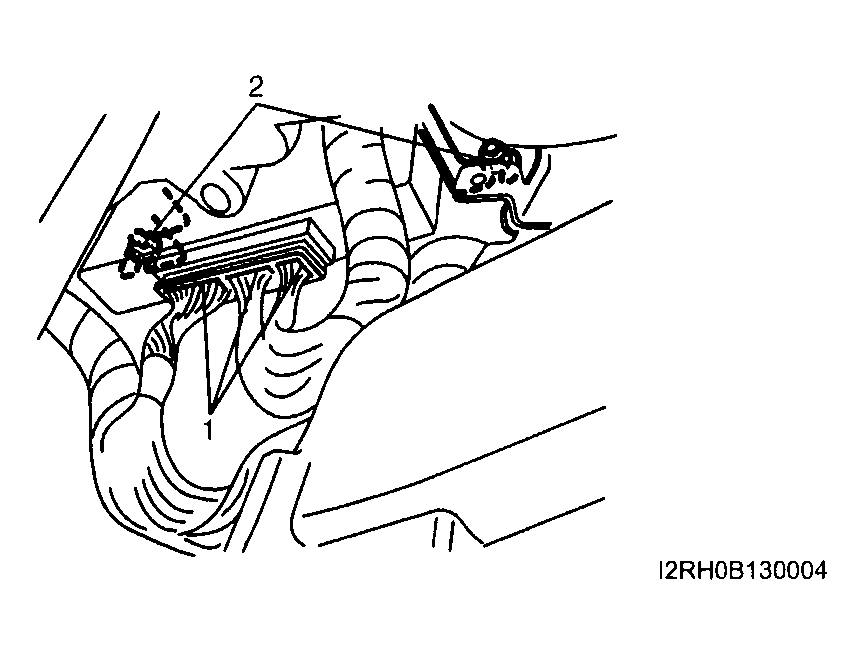

Fig 1: Disconnecting Connectors From ECM

Courtesy of SUZUKI OF AMERICA CORP.
