Fuse Block: Locations

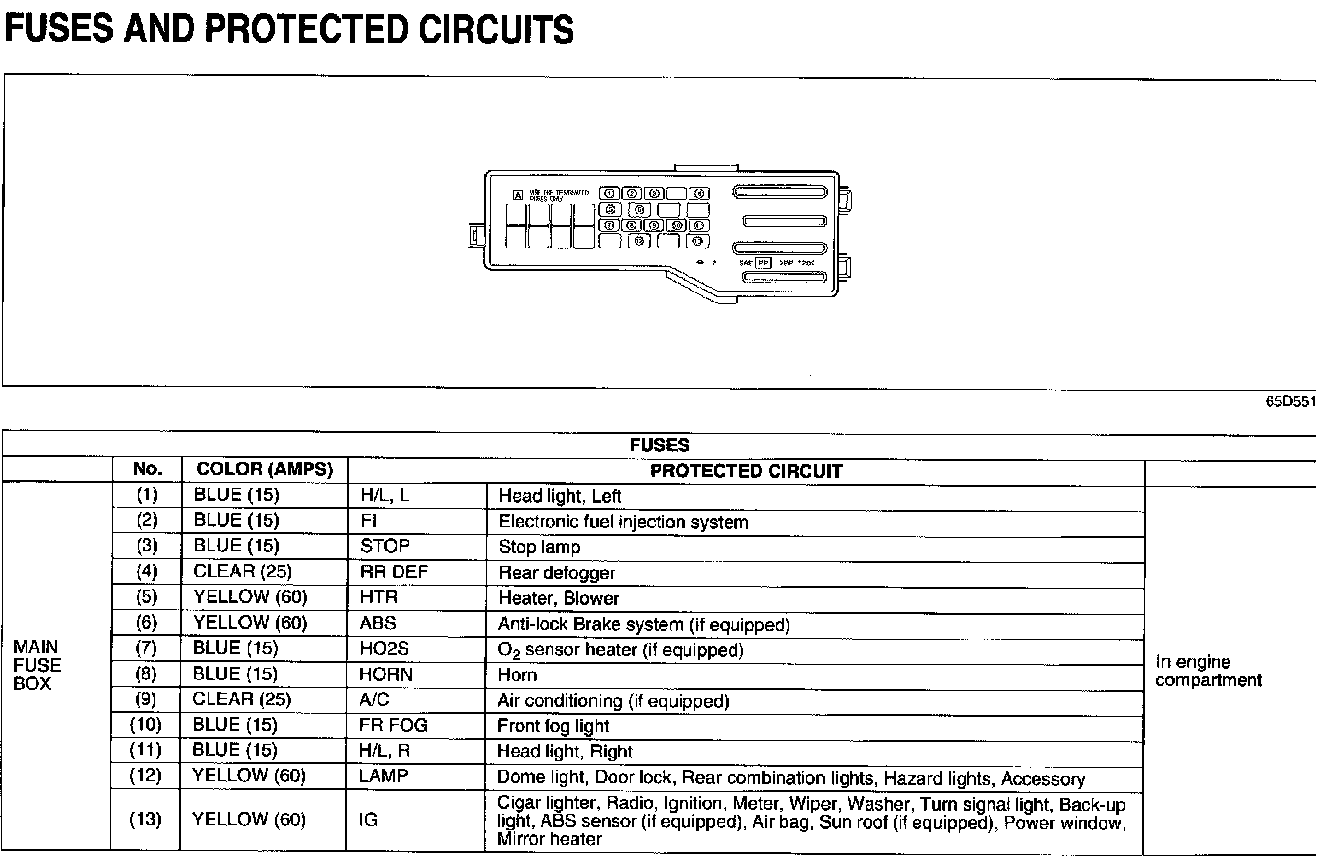

Engine Compartment Fuse Block:

Engine Compartment Fuse Block 1 Of 2:

Engine Compartment Fuse Block 2 Of 2:

Fuses And Protected Circuits:

Engine Compartment Fuse Block

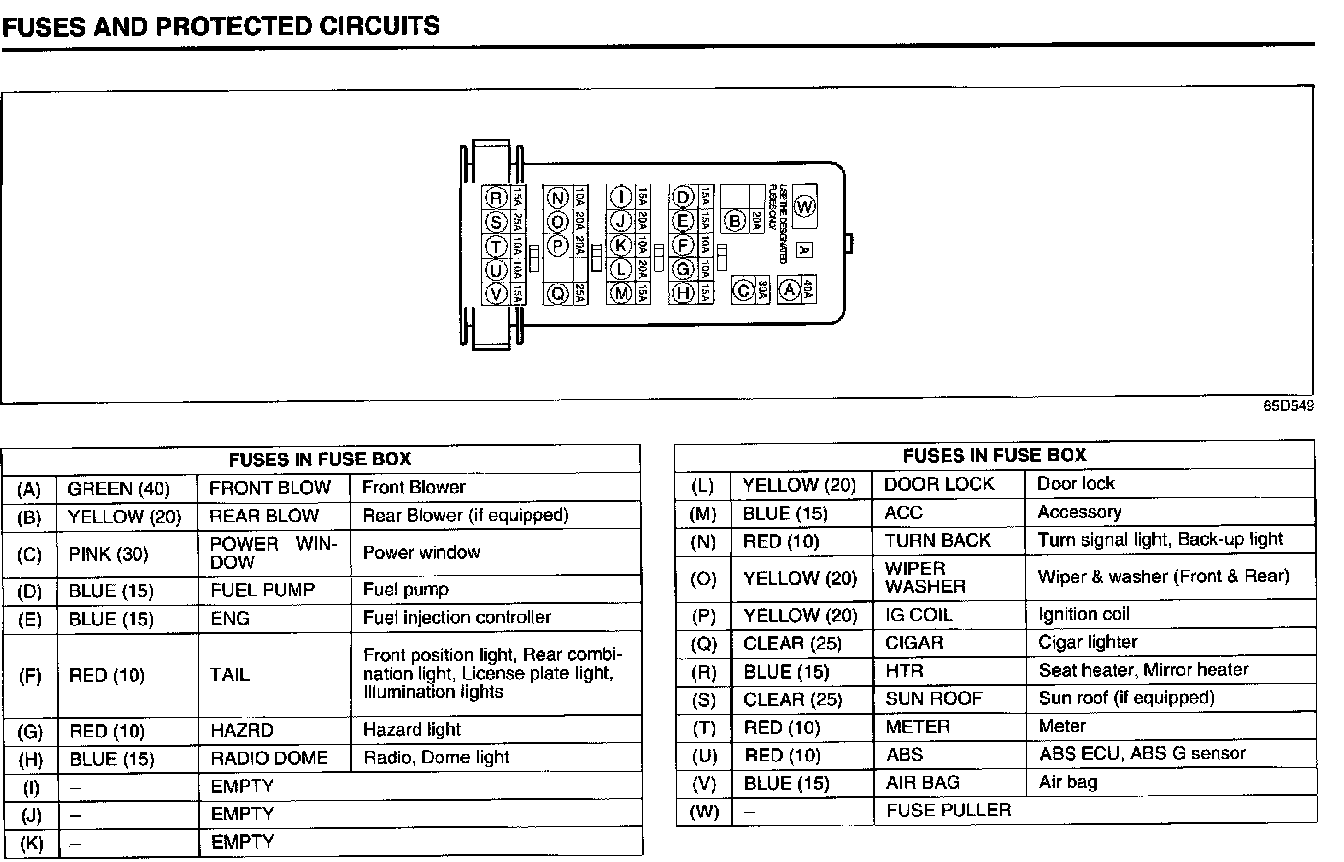

Under Dash Fuse Block (Driver's Side):

Fuses And Protected Circuits:

Under Dash Board Fuse Block (Driver's Side)
