DTC P0606 Transaxle Control Module Processor Fault: Notes

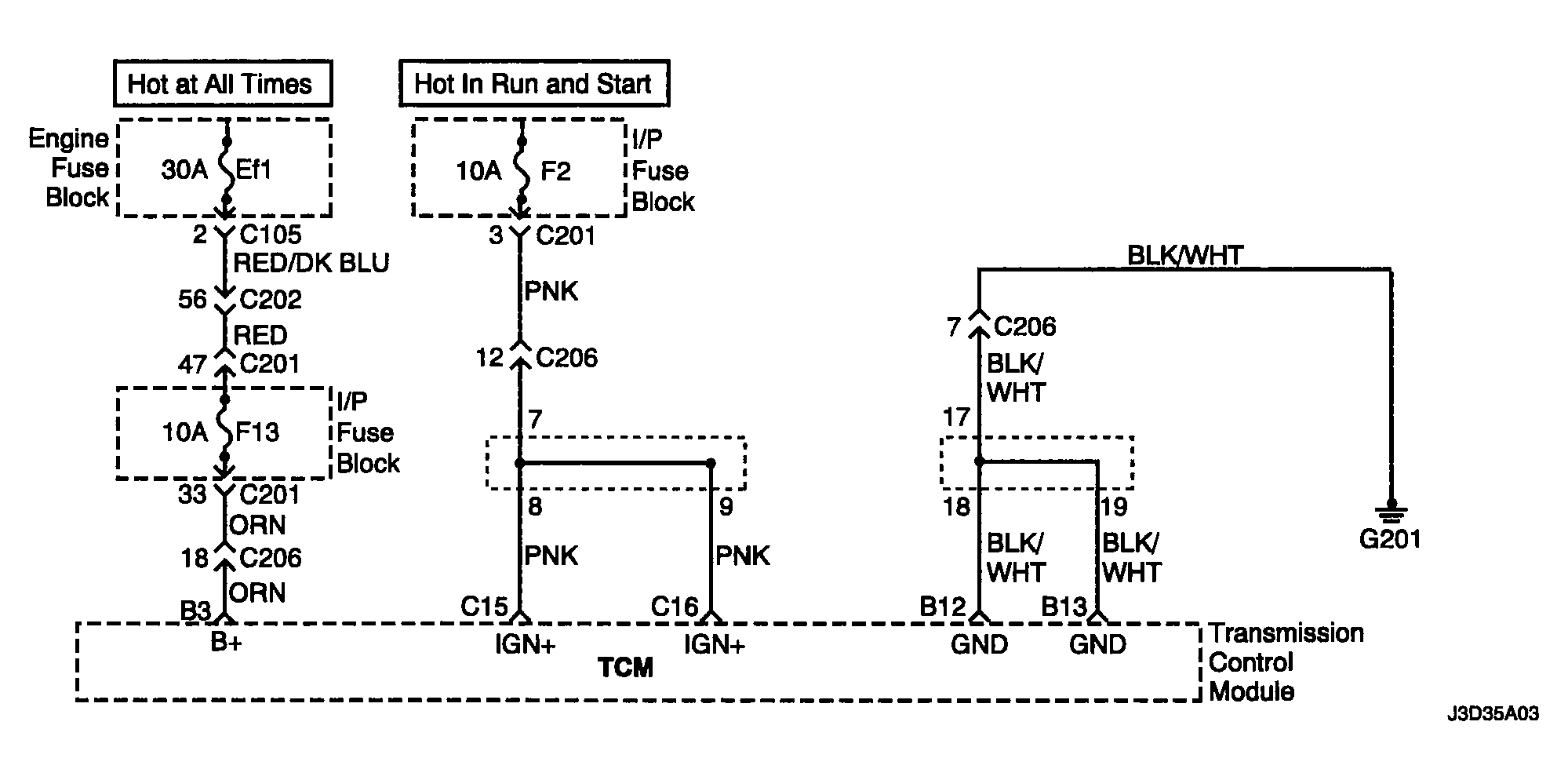

Fig 1: DTC P0606 Transaxle Control Module Processor Fault Circuit
G04103460Courtesy of SUZUKI OF AMERICA CORP.
