DTC P0317 Rough Road Sensor Source Not Detected: Notes

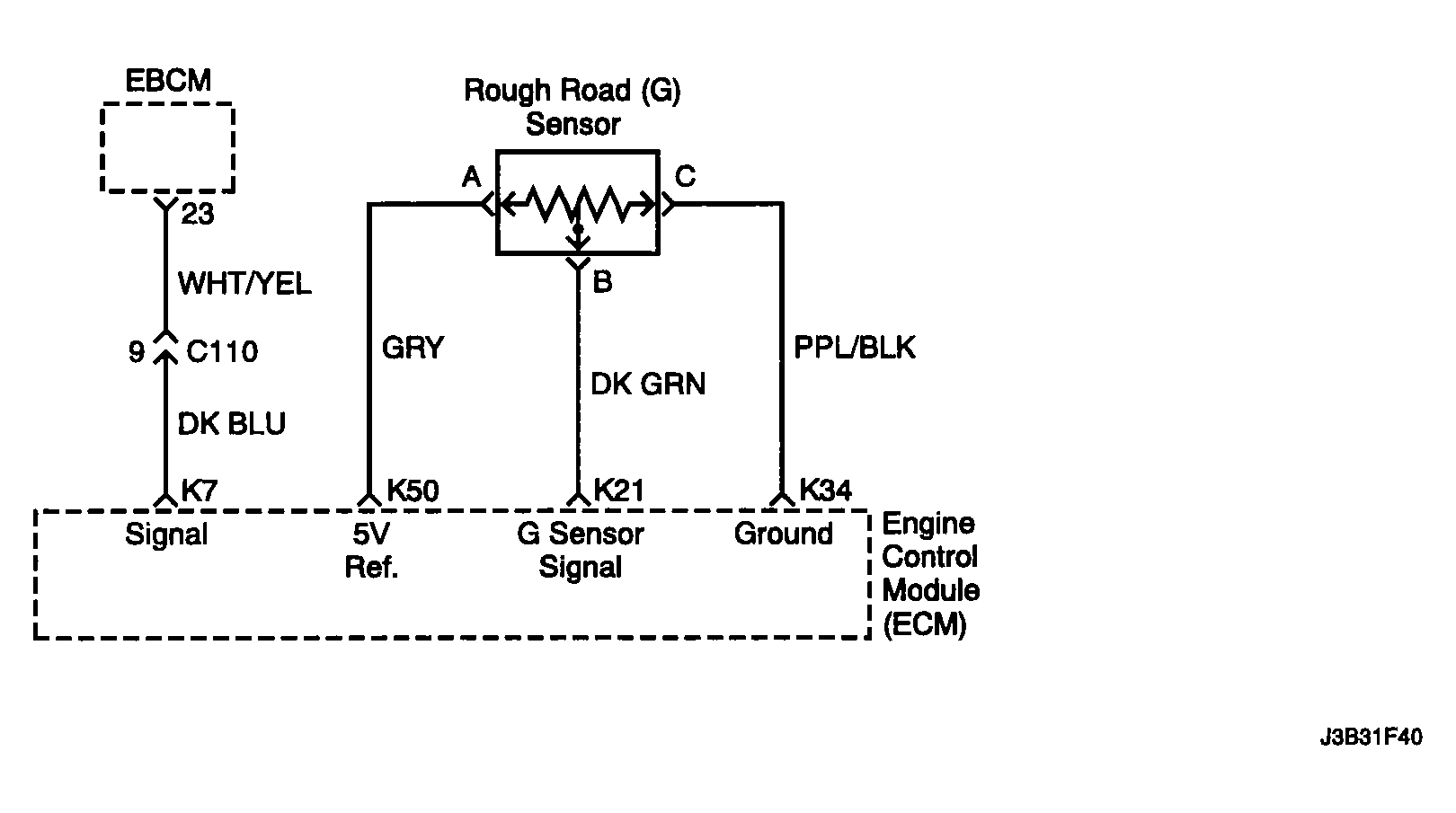

Fig 1: Rough Road Sensor Source Not Detected - Circuit Diagram
G04102545Courtesy of SUZUKI OF AMERICA CORP.
