DTC P0404 Exhaust Gas Recirculation Open Valve Position Error: Notes

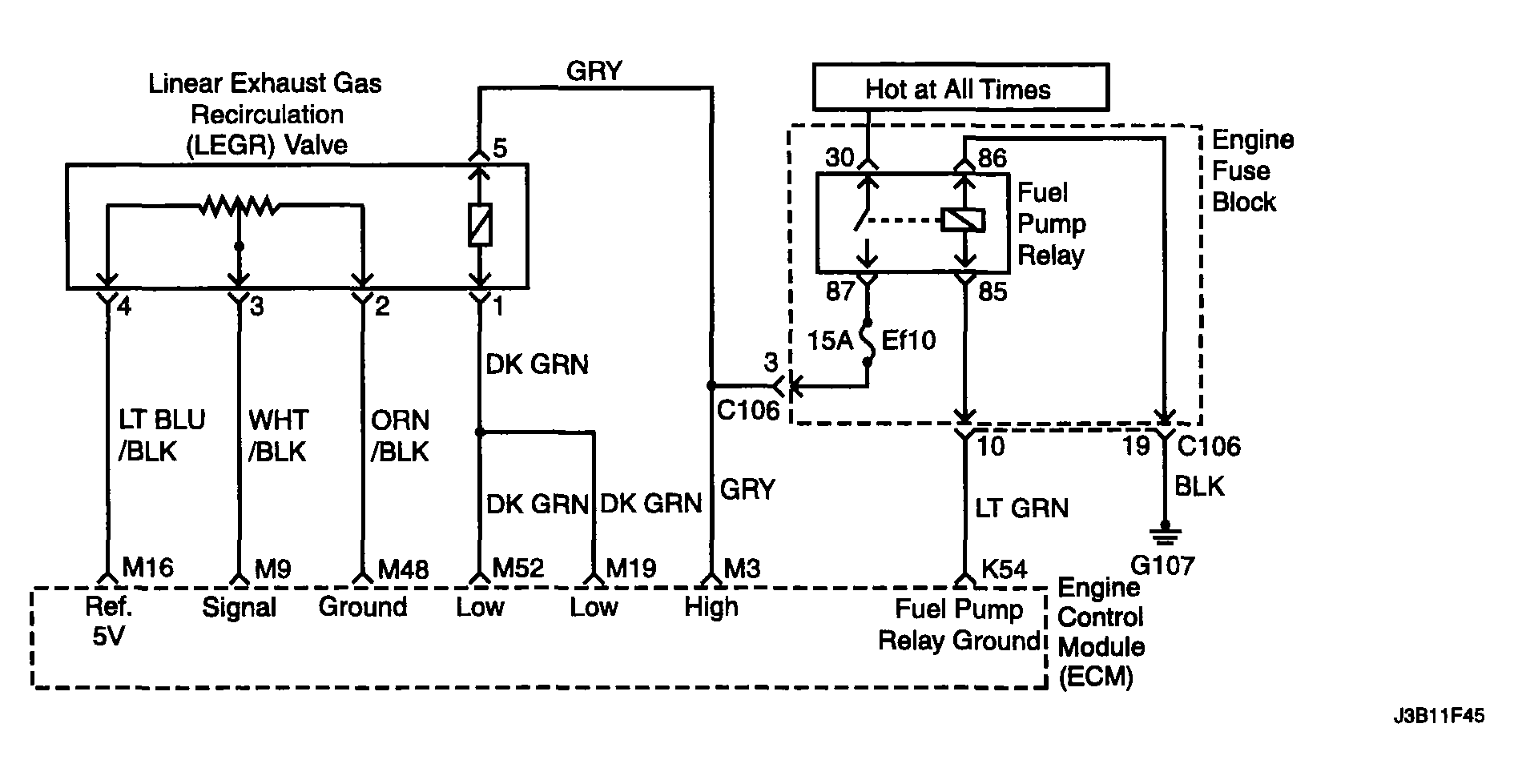

Fig 1: Exhaust Gas Recirculation Open Valve Position Error - Circuit Diagram
G04102554Courtesy of SUZUKI OF AMERICA CORP.
