Lighting Systems Connector End Views (Hatchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Ashtray Lamp (Optional)

GM1467074Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610070
  • 2-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 BK 450 Ground
Backup Lamp - Left or Right

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (WH)
Pin Wire Color Circuit No. Function
A L-GN 24 Backup Lamp Supply Voltage
B - - Not Used
G BK 450 Ground
Backup Lamp Switch (1.2L) (M/T)

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 PK 439 Ignition 1 Voltage
2 L-GN 24 Backup Lamp Supply Voltage
Backup Lamp Switch (1.4L, 1.5L, 1.6L) (M/T)

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ZPF 2-3 or AK 7207
  • 2-Way F
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B L-GN 24 Backup Lamp Supply Voltage
Blink Relay

GM1497842Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 36409
  • 4-Way Relay (BK)
Pin Wire Color Circuit No. Function
30 OG 1040 Battery Positive Voltage
85 L-BU 1508 Turn Signal Switch Signal
86 BK 450 Ground
87 GY 1524 Turn Signal
Center High Mounted Stop Lamp

GM1467036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610392
  • 2-Way F Series Sealed (WH)
Pin Wire Color Circuit No. Function
1 BN 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
2 BK 850 Ground
Daytime Running Lamp (DRL) Control Module (North America)

GM1481283Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12064998
  • 8-Way Connector F (BK)
Pin Wire Color Circuit No. Function
A OG 140 Battery Voltage
B L-GN/WH 11 Headlamp High Beam Supply Voltage
C YE/D-GN 12 Headlamp Low Beam Supply Voltage
D BN 233 DRL Indicator
233
E BK 450 Ground
F PK 239 Ignition 1 Voltage
G WH 629 DRL ON Indicator Control
H - - Not Used
Daytime Running Lamp (DRL) Control Module (Scandinavia)

GM1500892Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • F8-4
  • 8-Way F (BK)
Pin Wire Color Circuit No. Function
1 OG 140 Battery Positive Voltage
2 PU 709 Left Park Lamp Supply Voltage
3 BN 27 DRL Relay On Signal
4 YE/GN 12 Headlamp Low Beam Supply Voltage
5 BK 450 Ground
6 PK 239 Ignition 1 Voltage
7 BN/WH 309 Right Park Lamp Supply Voltage
8 GN 31 Oil Pressure Indicator Control
Daytime Running Lamp (DRL) Relay (Scandinavia)

GM1497842Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 36905
  • 9-Way F
Pin Wire Color Circuit No. Function
30 BN/WH 309 DRL Relay Supply Voltage
85 OG 340 Battery Positive Voltage
86 BN 1080 DRL Relay Control
87 BN 27 Lights On Signal
Fog Lamp - Left Front

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12124819
  • 2-Way Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 L-BU 1769 Fog Lamp Switch Supply Voltage
2 BK 250 Ground
Fog Lamp - Right Front

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12124819
  • 2-Way Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 L-BU 1769 Fog Lamp Switch Supply Voltage
2 BK 250 Ground

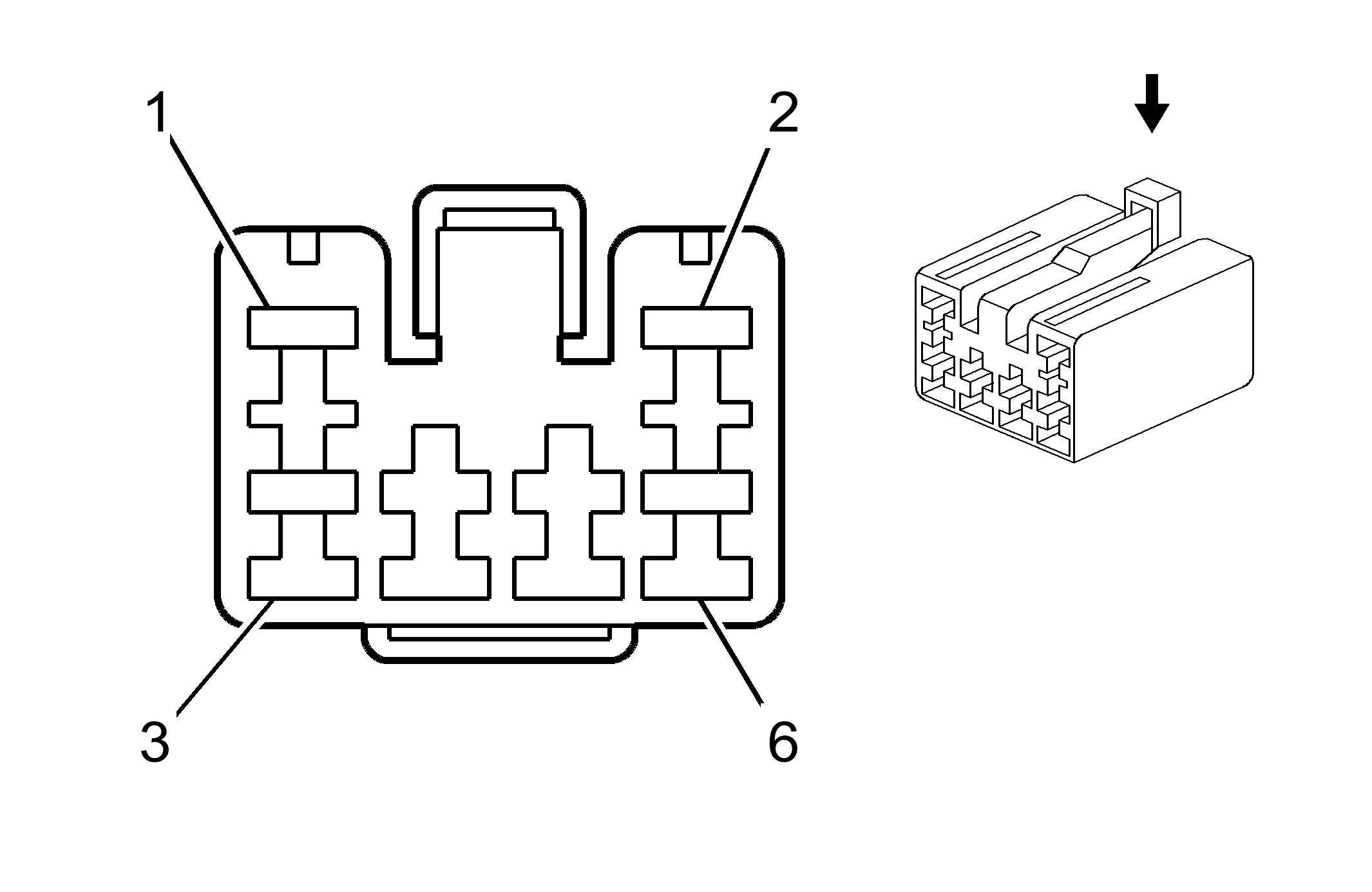

Fog Lamp Switch - Rear (Except North America)

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 - - Not Used
3 BK 450 Ground (w/o Dimming)
4 L-GN/RD 230 Instrument Panel Lamps Dimming Control (w/Dimming)
BK 450 Ground
5 - - Not Used
6 D-GN/WH 1977 Rear Fog Lamps Switch Signal
Fog Lamp - Rear (Left or Right) - w/Rear Fog Lamps

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A WH 122 Rear Fog Lamps Supply Voltage
B - - Not Used
G BK/YE 450 Ground
Hazard Switch

GM1467018Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610056
  • 10-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 L-GN/RD 230 Instrument Panel Lamps Dimming Control (w/Dimming)
BK 450 Ground (w/o Dimming)
3 BN/WH 309 Right Park Lamp Supply Voltage
4 YE 18 Right Park Lamp Supply Voltage
5 D-BU 14 Left Turn Signal Lamps Supply Voltage
6 WH 15 Right Turn Signal Lamps Supply Voltage
7 L-BU 1508 Turn Signal Switch Signal
8 OG 1040 Battery Positive Voltage
OG/PU Battery Positive Voltage (RHD)
9 D-GN 16 Turn Signal Flasher Signal
Turn Signal Switch Supply Voltage
10 PK 339 Ignition Voltage
Headlamp - Left

GM1481284Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OPES-PH2
  • 3-Way Connector F (WH)
Pin Wire Color Circuit No. Function
1 PU 311 Right Headlamp High Beam Supply Voltage
2 PU/WH 312 Right Headlamp Low Beam Supply Voltage
3 BK 150 Ground
Headlamp - Right

GM1481284Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OPES-PH2
  • 3-Way Connector F (WH)
Pin Wire Color Circuit No. Function
1 GY 711 Right Headlamp Low Beam Supply Voltage
2 YE 712 Headlamp Leveling Motor Supply Voltage
3 BK 150 Ground
Headlamp Leveling Motor - Left (Except North America)

GM1258004Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 164357
  • 3-Way
Pin Wire Color Circuit No. Function
1 PU/WH 312 Left Headlamp Low Beam Supply Voltage
2 D-GN 189 Headlamp Leveling Motor Supply Voltage
3 BK 50 Ground
Headlamp Leveling Motor - Right (Except North America)

GM1258004Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 164357
  • 3-Way
Pin Wire Color Circuit No. Function
1 YE 712 Right Headlamp Low Beam Supply Voltage
2 D-GN 189 Headlamp Leveling Motor Supply Voltage
3 BK 250 Ground
Headlamp Leveling Switch (Except North America)

GM1468511Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 5557-06R
  • 6-Way Mini Fit Conn. Rec. Housing (WH)
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 YE/D-GN 12 Headlamp Low Beam Supply Voltage
3 PU 189 Headlamp Leveling Motor Supply Voltage
4 BK 450 Ground
5 - - Not Used
6 BK 450 Ground
Headlamp Park Position Lamp - Left (Except North America)

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 PU 709 Left Park Lamp Supply Voltage
2 BK 450 Ground
Headlamp Park Position Lamp - Right (Except North America)

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 BK 50 Ground
Headlamp Switch

GM1467023Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 5559-06P
  • 7-Way F Mini Fit Conn. Crimp Pin Housing (WH)
Pin Wire Color Circuit No. Function
1 BN/WH 309 Battery Positive Voltage
2 WH/YE 318 Rear Fog Lamp Relay Control
3 BK 450 Ground
4 WH/BK 1346 Headlamp HI Relay Control
5 WH 352 Headlamp Low Relay Control
6 BN 1080 DRL Relay Headlamp Switch Signal
7 BK 450 Ground
I/P Dimmer Switch

GM1467010Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610045
  • 3-Way F 250 Series (WH)
Pin Wire Color Circuit No. Function
1 L-GN/RD 230 Instrument Panel Lamps Dimming Control
BN/WH
2 BK 450 Ground
3 BN/WH 309 Right Park Lamp Supply Voltage
Lamp Control Module (Except North America)

GM1467016Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610054
  • 8-Way F 090 (2.3 mm) Series
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BN/D-BU 1081 Park Lamp On Signal
3 BN 1080 Park Lamp Relay Control
4 OG 640 Battery Positive Voltage
5 BK 450 Ground
6 PU 126 Left Front Open Switch Signal
7 L-GN 80 Key in Ignition Switch Signal
8 - - Not Used
License Lamp

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630679
  • 2-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
A WH 709 Left Park Lamp Supply Voltage
PU
B BK 450 Ground
Park/Turn Signal Lamp - Left

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12093279
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A YE 14 Left Turn Signal Lamps Supply Voltage
B BN 709 Left Park Lamp Supply Voltage
G BK 250 Ground
Park/Turn Signal Lamp - Right

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12093279
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A YE 15 Right Turn Signal Lamps Supply Voltage
B BN 309 Right Park Lamp Supply Voltage
G BK 50 Ground
Courtesy/Reading Lamp (w/o Sunroof)

GM1467049Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610489
  • 2-Way F 090 (2.3 mm) Series
Pin Wire Color Circuit No. Function
1 WH 156 Courtesy Lamp Control
2 BN 541 Ignition 3 Voltage
Rear Compartment Lamp

GM1481285Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 36277
  • 2-Way Connector (GY)
Pin Wire Color Circuit No. Function
1 BN 541 Ignition 3 Voltage
2 OG/BK 737 Rear Compartment Lid Ajar Switch Signal

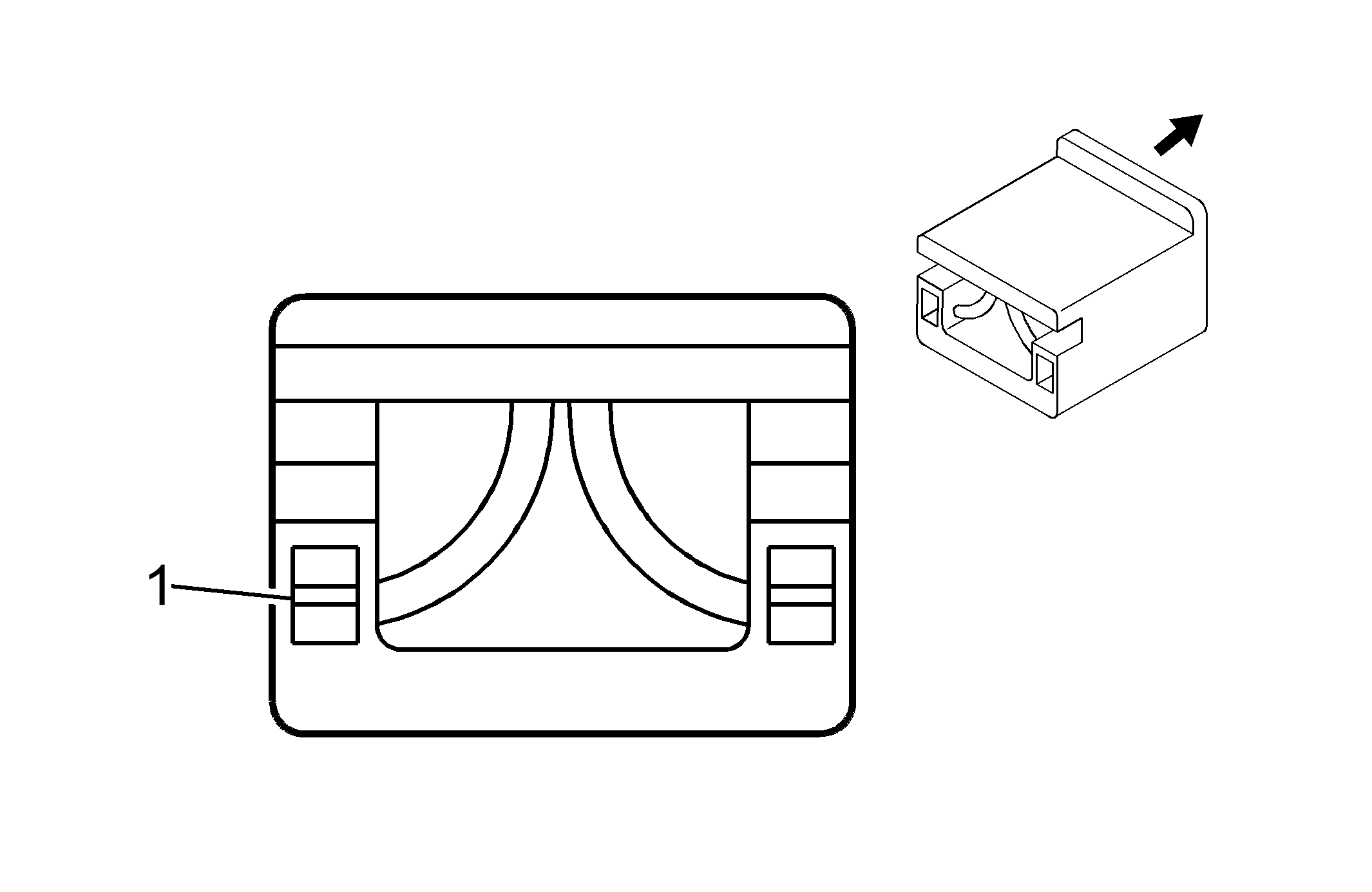

Rear Compartment Lid Switch (Trunk)

GM1497744Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET ST 730173-1
  • 1-Way 250 Series Connector (CL)
Pin Wire Color Circuit No. Function
1 OG/BK 737 Rear Compartment Lid Ajar Switch Signal
Rear Fog Relay

GM1333956Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 36907
  • 9-Way
Pin Wire Color Circuit No. Function
1 - - Not Used
2 D-GN/WH 1977 Rear Fog Lamp Switch Signal
3 - - Not Used
4 RD 122 Rear Fog Lamp Supply Voltage
5 WH/YE 318 Rear Fog Lamp Relay Coil Supply Voltage
6 RD 122 Rear Fog Lamp Supply Voltage
7 WH 13 Rear Fog Lamp Relay Coil Supply Voltage
8 BK 450 Ground
9 - - Not Used
Shift Indicator Lamp

GM1467020Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610070
  • 2-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 L-GN/RD 230 Instrument Panel Lamps Dimming Control w/Dimming
BK 450 Ground w/o Dimming
Side Marker Lamp - Left Front

GM407137Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way
Pin Wire Color Circuit No. Function
A BN 709 Left Park Lamp Supply Voltage
B YE 14 Left Turn Signal Lamps Supply Voltage
BK
Side Marker Lamp - Left Rear

GM407137Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG 610320
  • 2-Way
Pin Wire Color Circuit No. Function
A BN 709 Left Park Lamp Supply Voltage
PU
B BK 250 Ground
Side Marker Lamp - Right Front

GM407137Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way
Pin Wire Color Circuit No. Function
A BN 309 Right Park Lamp Supply Voltage
B YE 15 Right Turn Signal Supply Voltage
BK
Side Marker Lamp - Right Rear

GM407137Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way
Pin Wire Color Circuit No. Function
A BN 309 Right Park Lamp Supply Voltage
B BK 250 Ground
Stop Lamp Switch

GM1467027Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610267
  • 4-Way F 250 D/L Series (WH)
Pin Wire Color Circuit No. Function
1 L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
BN 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
2 OG 540 Battery Positive Voltage
3-4 - - Not Used
Tail/Stop Lamp - Left Rear Lower

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A RD 20 Stop Lamp Supply Voltage
B D-BU 709 Left Park Lamp Supply Voltage
G BK 250 Ground
Tail/Stop Lamp - Left Rear Upper

GM38605Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160394
  • 3-Way Lamp Socket Wedge Base W3 Right Angle (WH)
Pin Wire Color Circuit No. Function
A RD 20 Stop Lamp Supply Voltage
B D-BU 709 Left Park Lamp Supply Voltage
G BK 450 Ground
Tail/Stop Lamp - Right Rear Lower

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (BK)
Pin Wire Color Circuit No. Function
A RD 20 Stop Lamp Supply Voltage
B D-BU 309 Right Park Lamp Supply Voltage
G BK 450 Ground
Tail/Stop Lamp - Right Rear Upper

GM38605Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160394
  • 3-Way Lamp Socket Wedge Base W3 Right Angle (WH)
Pin Wire Color Circuit No. Function
A RD 20 Stop Lamp Supply Voltage
B D-BU 309 Right Park Lamp Supply Voltage
G BK 450 Ground
Turn Signal Lamp - Left Front (Except North America)

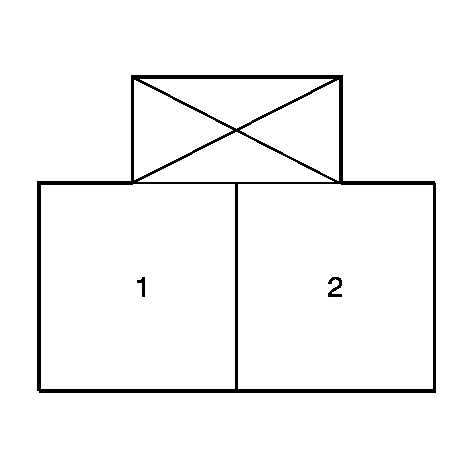

GM1258057Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936184-3
  • 2-Way F
Pin Wire Color Circuit No. Function
1 BK 50 Ground
2 L-BU 14 Left Turn Signal Lamps Supply Voltage
Turn Signal Lamp - Left Rear

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (WH)
Pin Wire Color Circuit No. Function
A YE 14 Left Turn Signal Lamps Supply Voltage
B - - Not Used
G BK/YE 450 Ground
Turn Signal Lamp - Right Front (Except North America)

GM1258057Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 936184-3
  • 3-Way
Pin Wire Color Circuit No. Function
1 BK 250 Ground
2 D-BU 15 Right Turn Signal Lamps Supply Voltage
Turn Signal Lamp - Right Rear

GM82366Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092379
  • 3-Way F Lamp Socket Wedge Base W3 (WH)
Pin Wire Color Circuit No. Function
A YE 15 Right Turn Signal Lamps Supply Voltage
B - - Not Used
G BK/YE 450 Ground
Turn Signal Repeater Lamp - Left

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series
Pin Wire Color Circuit No. Function
1 D-BU 14 Left Turn Signal Lamps Supply Voltage
2 BK 250 Ground
Turn Signal Repeater Lamp - Right

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 D-BU 15 Right Turn Signal Lamps Supply Voltage
2 BK 250 Ground
Turn Signal/Multifunction Switch

GM1467023Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610203
  • 7-Way F 118 (PA) Series (BK)
Pin Wire Color Circuit No. Function
1 L-BU 14 Left Turn Signal Lamps Supply Voltage
2 D-GN 16 Turn Signal Flasher Signal
3 D-BU 15 Right Turn Signal Lamps Supply Voltage
4 WH/BK 1346 Headlamp Supply Voltage/Headlamp Control
5 WH 352 Headlamp Relay Coil Supply Voltage
6 BK/WH 1352 Headlamp Control
7 BK 450 Ground
Turn Signal/Hazard Flasher

GM1333956Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 36906
  • 9-Way (GN)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 GY 1524 Turn Signal
3-5 - - Not Used
6 D-GN 16 Turn Signal Flasher Signal
7 - - Not Used
8 BK 450 Ground
9 - - Not Used
scientia non olet · About LEMON Manuals
