Main Relay Circuit Check: Notes

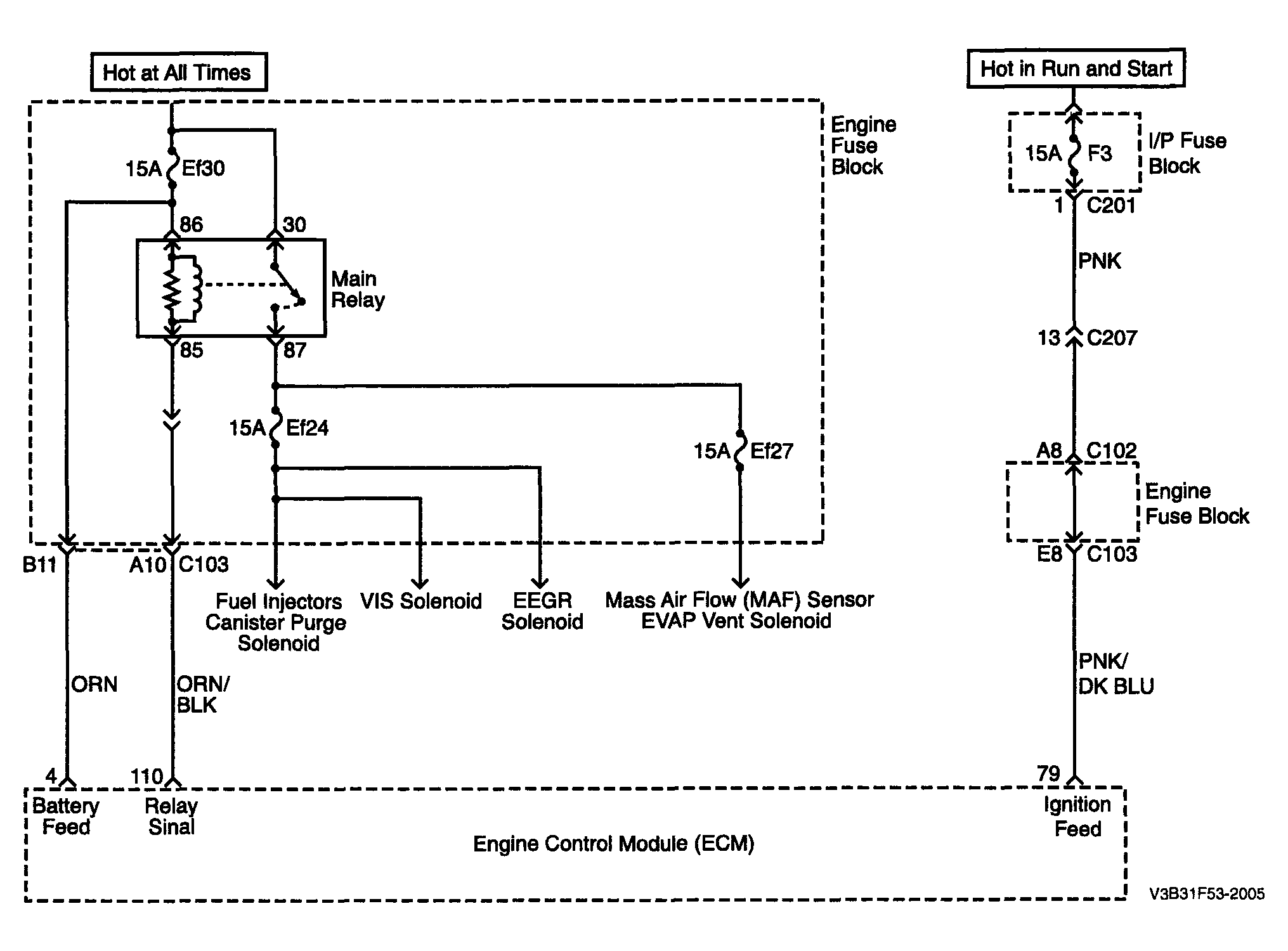

Fig 1: Main Relay Circuit Check - Circuit Diagram

G04094537

Courtesy of SUZUKI OF AMERICA CORP.
