P/S Pump Assembly Installation

Install the power steering pump into the vehicle and install the two long power steering pump bolts.
Tighten

Tighten the power steering pump bolts to 25 N.m (18 lb-ft).
Swing the power steering pump bracket down and install the front right side bolt.
Tighten

Tighten both of the right side power steering pump bracket bolts to 35 N.m (26 lb-ft).

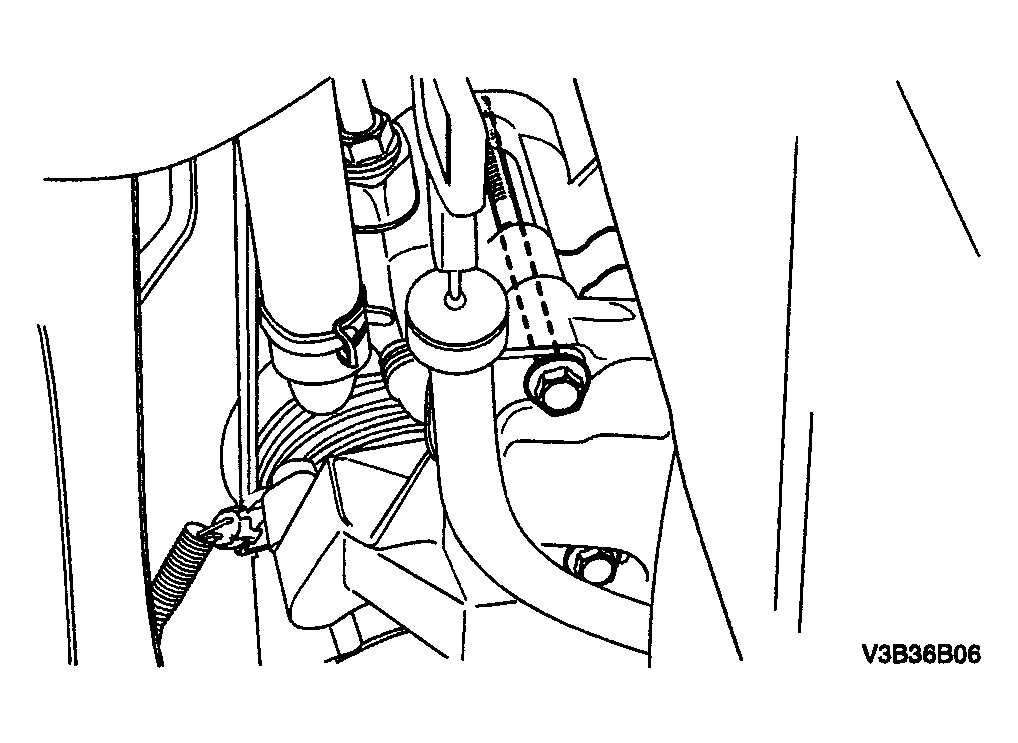

Fig 1: Installing Long Power Steering Pump Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Connect the supply hose to the power steering pump.
Connect the high-pressure hose fitting to the power steering pump.
Tighten

Tighten the high-pressure hose fitting to 28 N.m (21 lb-ft).

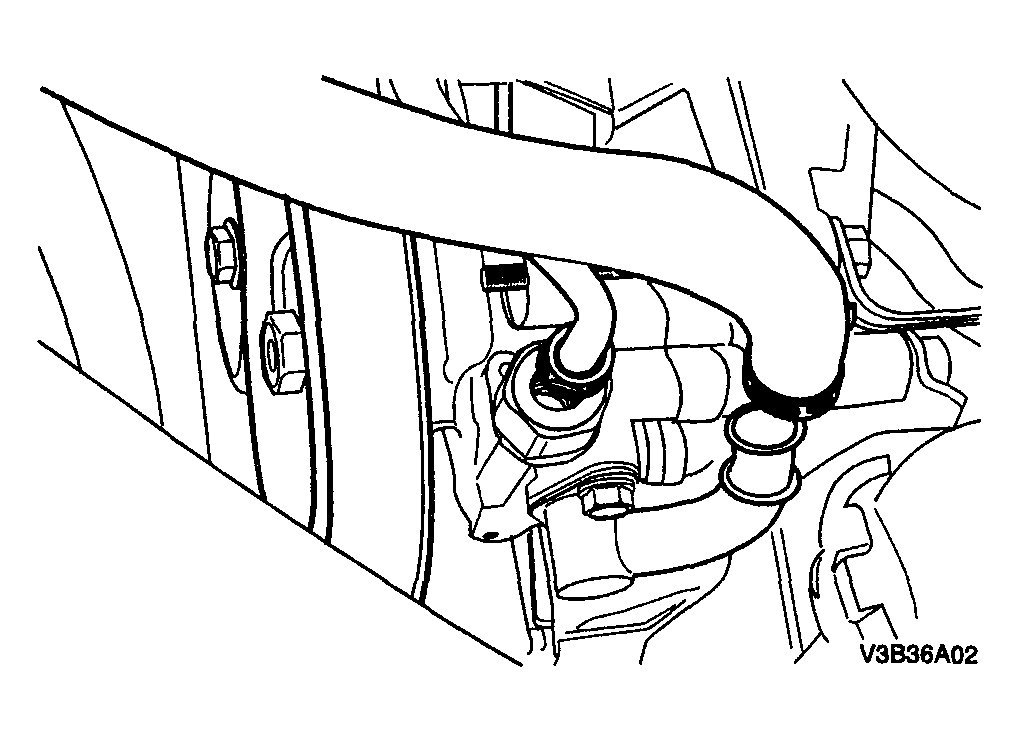

Fig 2: Connecting High-Pressure Hose And Supply Hose To Power Steering Pump
Courtesy of SUZUKI OF AMERICA CORP.
Install the serpentine accessory drive belt. Refer to "SERPENTINE ACCESSORY DRIVE BELT REMOVAL ".
Refill the power steering fluid. Refer to "CHECKING AND ADDING FLUID ".
Bleed the power steering system. Refer to "BLEEDING THE POWER STEERING SYSTEM ".

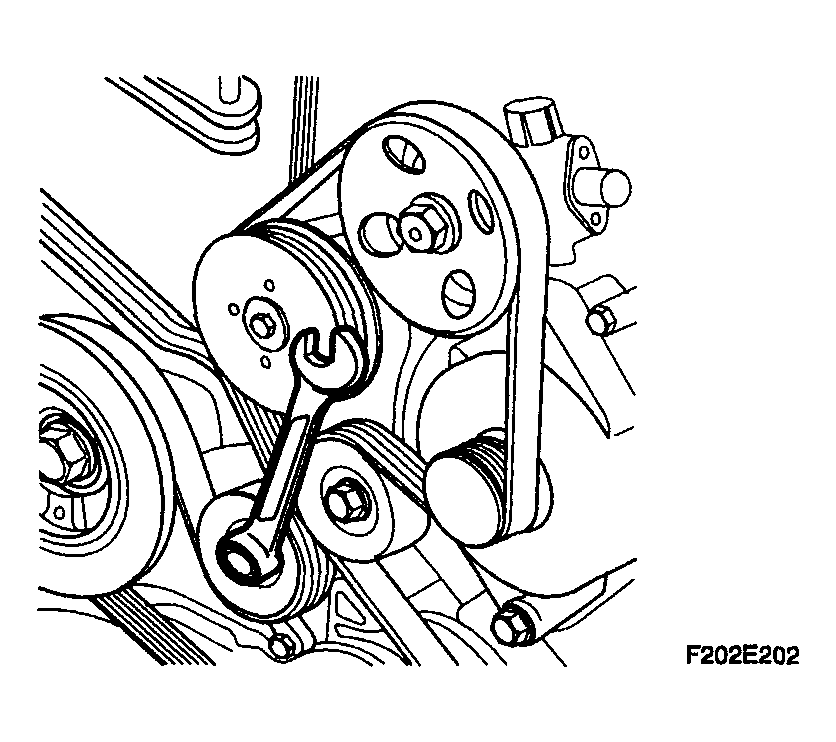

Fig 3: Installing Serpentine Accessory Drive Belt Using Wrench
Courtesy of SUZUKI OF AMERICA CORP.
