Transaxle Control Module (TCM) Installation

  1. Install the TCM and nuts.

    Tighten

    Tighten the TCM mounting nuts to 23 N.m (17 lb-ft).

  2. Connect the wiring connectors.
  3. Connect the negative battery cable.

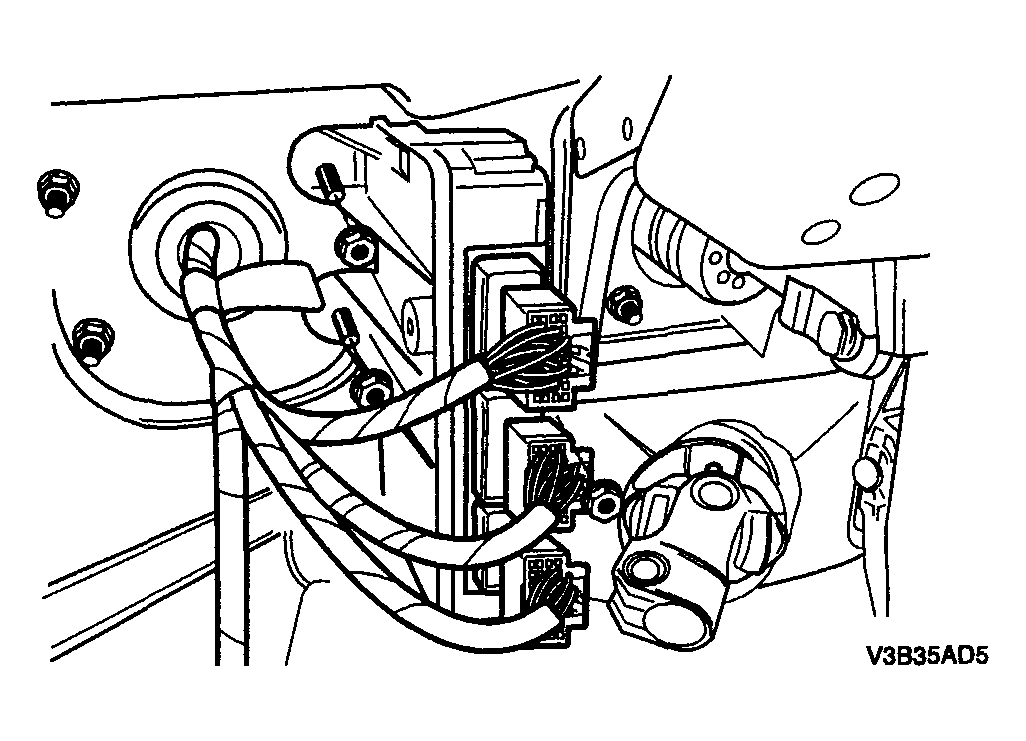

    Fig 1: Connecting Wiring Connectors
    G04095425Courtesy of SUZUKI OF AMERICA CORP.
