Engine Room Relay and Fuse Block
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Room Relay and Fuse Block

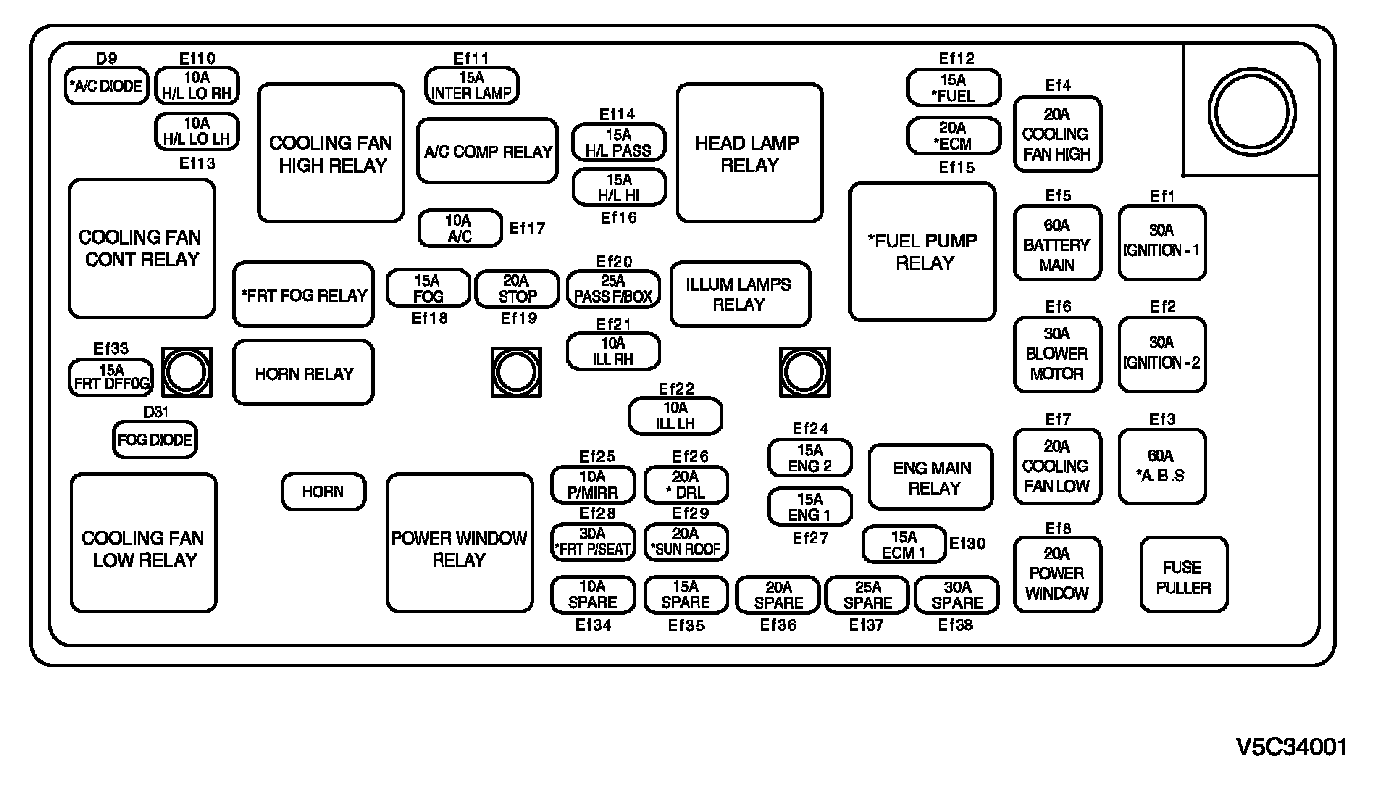

Front View:

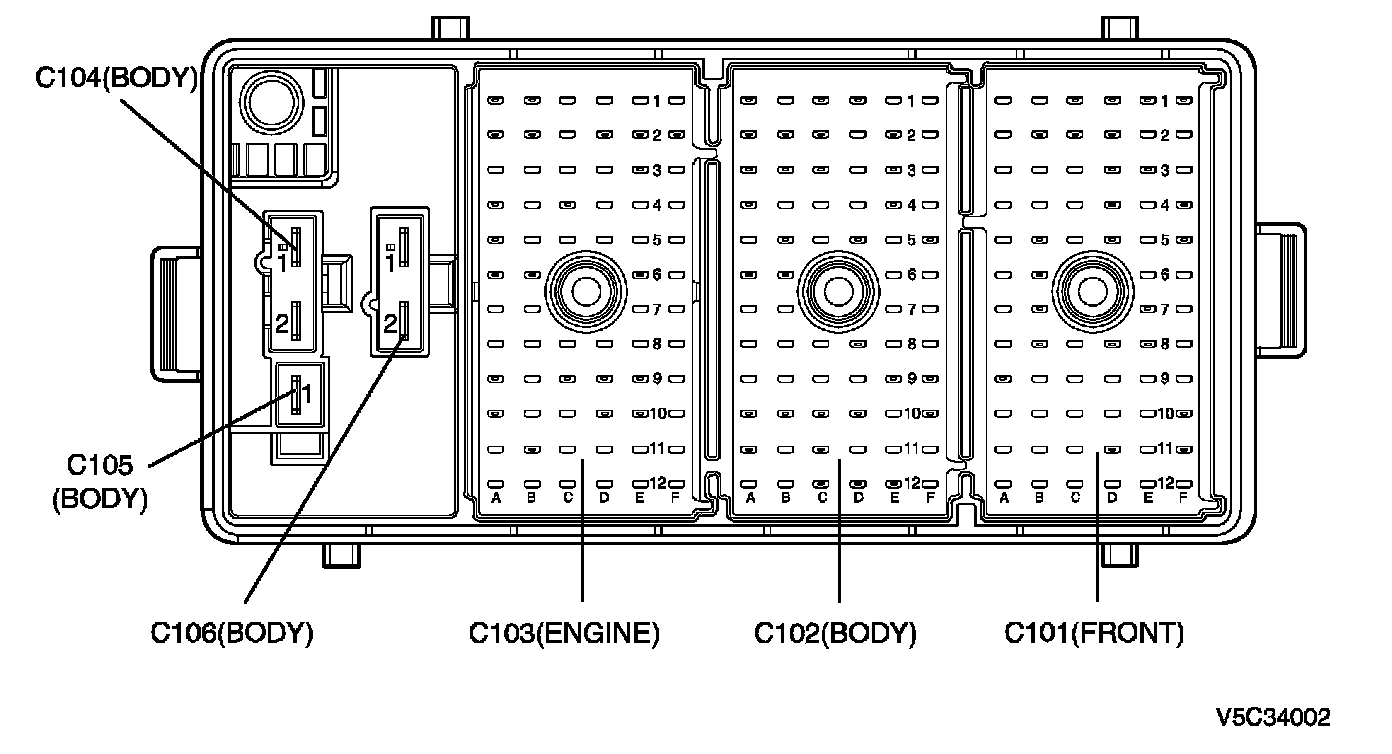

Rear View:
POSITION OF
RELAY
AND FUSE

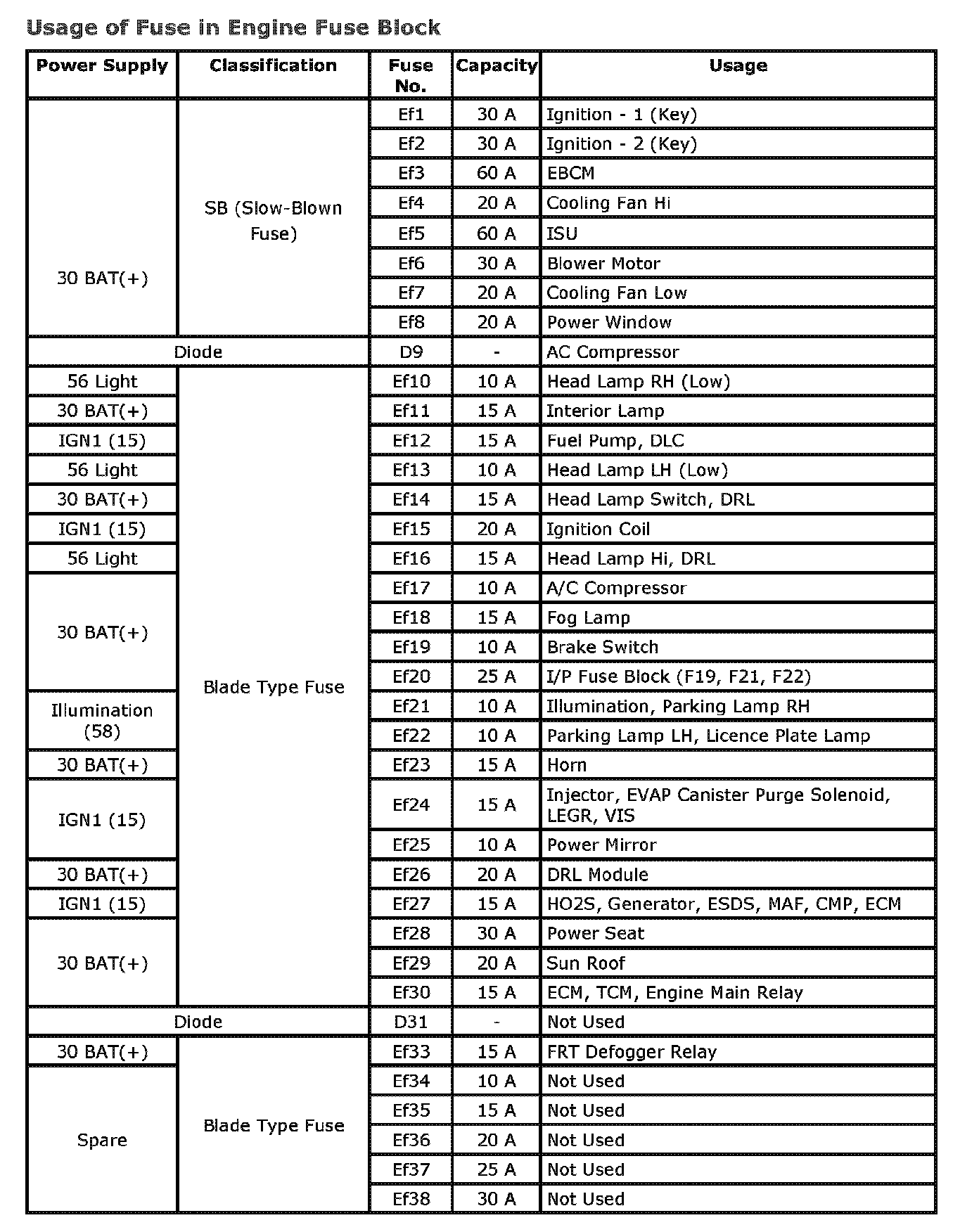

Usage of Fuse in Engine Fuse Block:
USAGE OF FUSE IN ENGINE FUSE BLOCK
