Component Inspection




Engine Coolant Temperature (ECT) Sensor Inspection

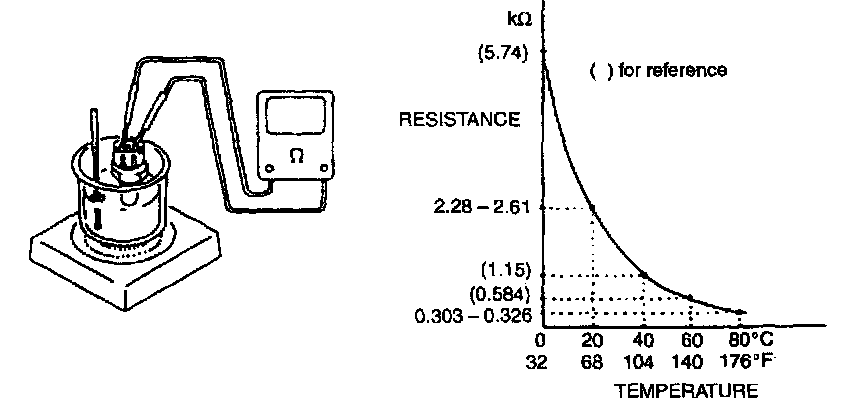

Immerse temperature sensing part of ECT sensor in water and measure resistance between sensor terminals while heating water gradually.

If measured resistance doesn't shown such characteristic as shown in the figure, replace ECT sensor.
