Engine Control System Location

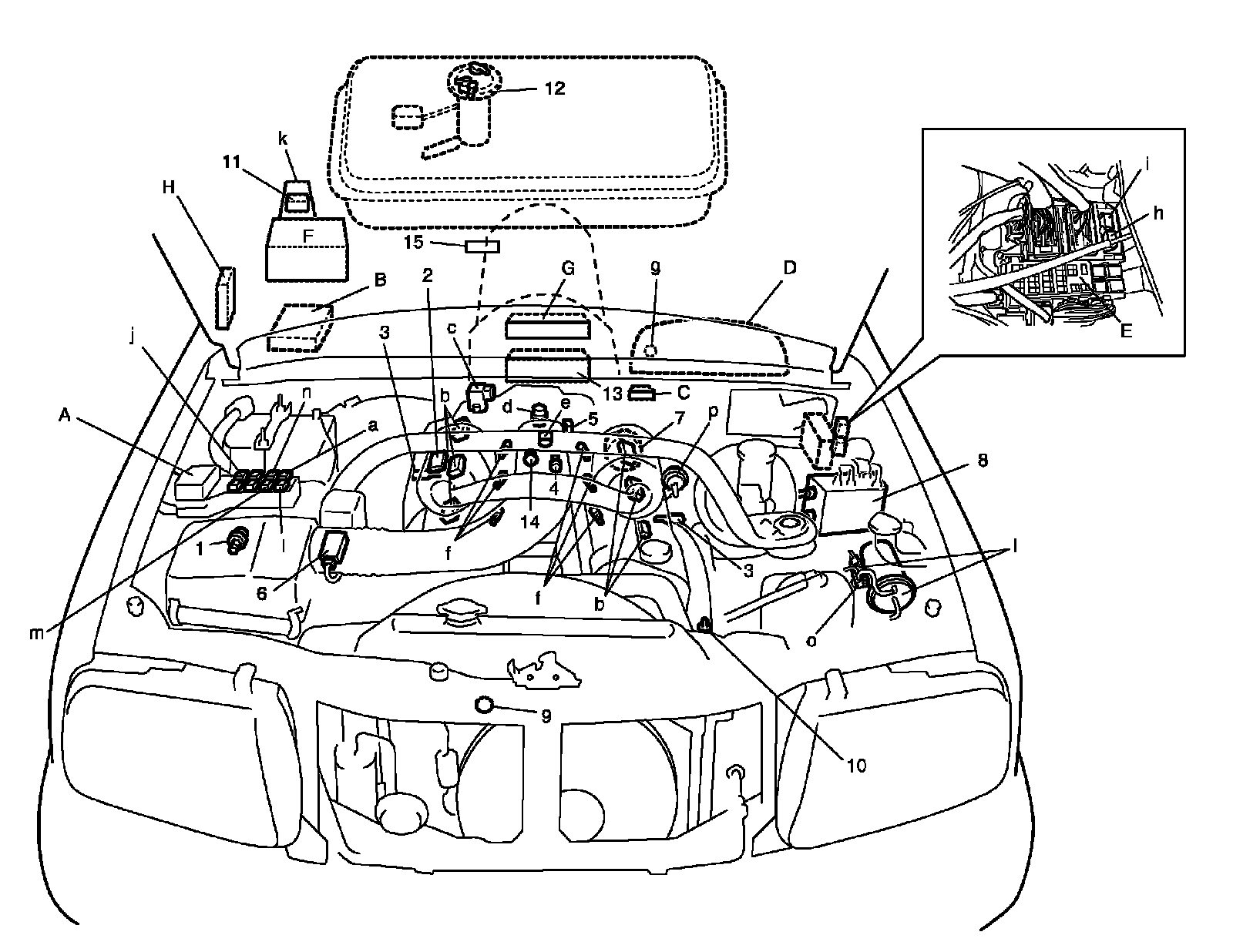

Electronic Control System Location Part 1:

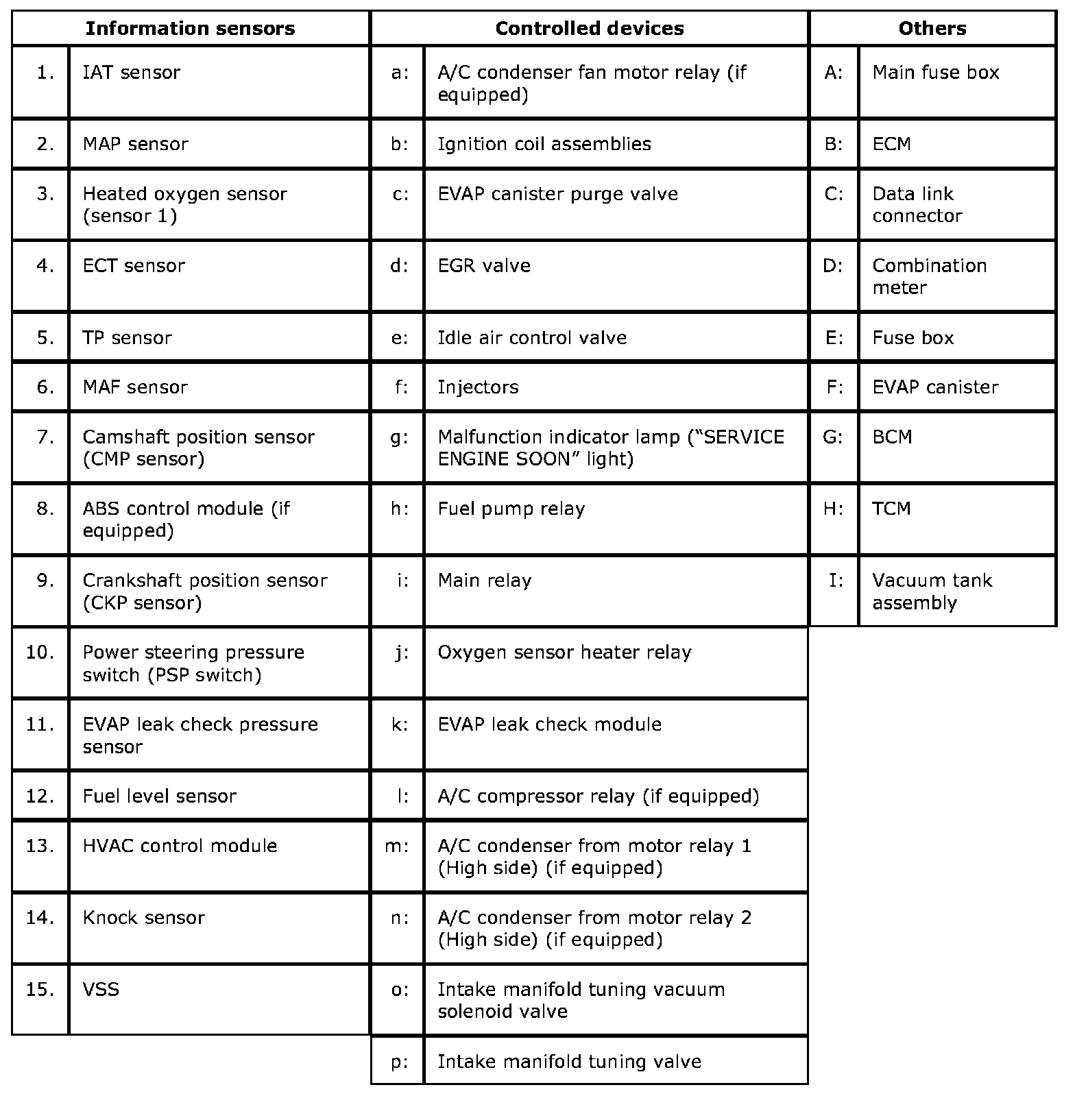

Electronic Control System Location Part 2:
