ECM Input / Output Circuit Diagram

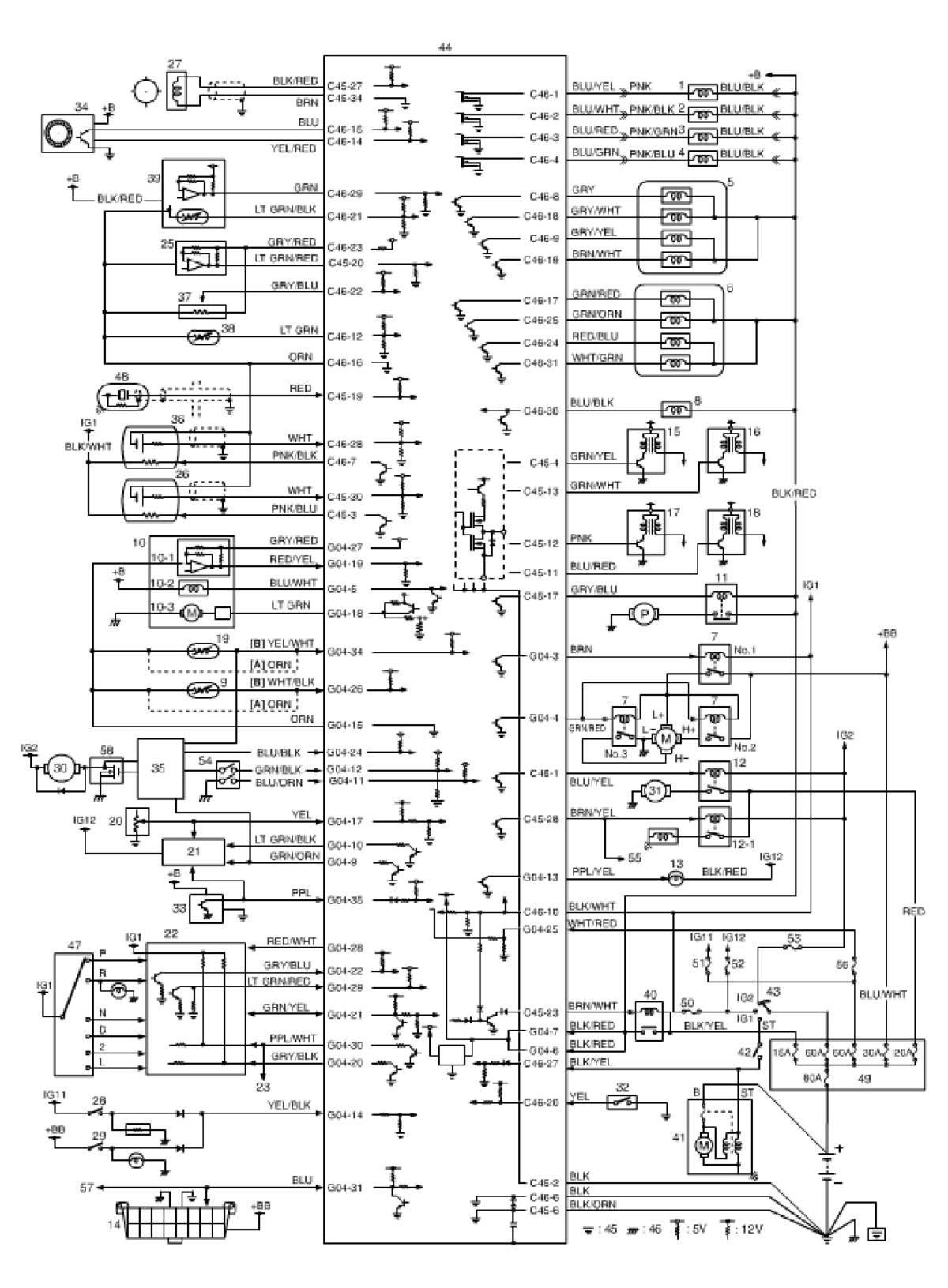

Fig 1: ECM Input / Output Circuit Diagram
G04589408Courtesy of SUZUKI OF AMERICA CORP.

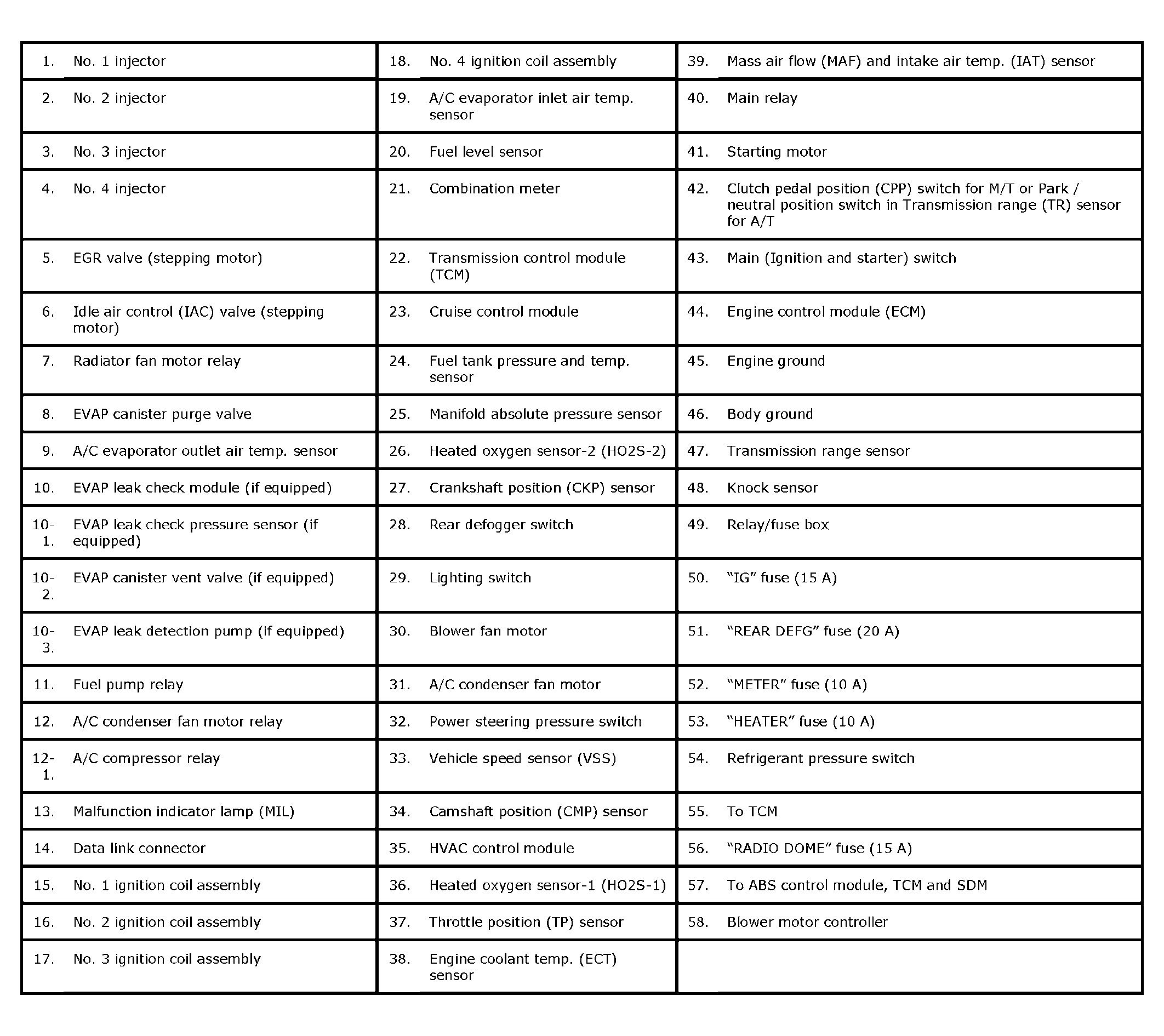

Fig 2: ECM Input / Output Circuit Reference Table
G04589409Courtesy of SUZUKI OF AMERICA CORP.
