Engine and Emission Control System Flow Diagram

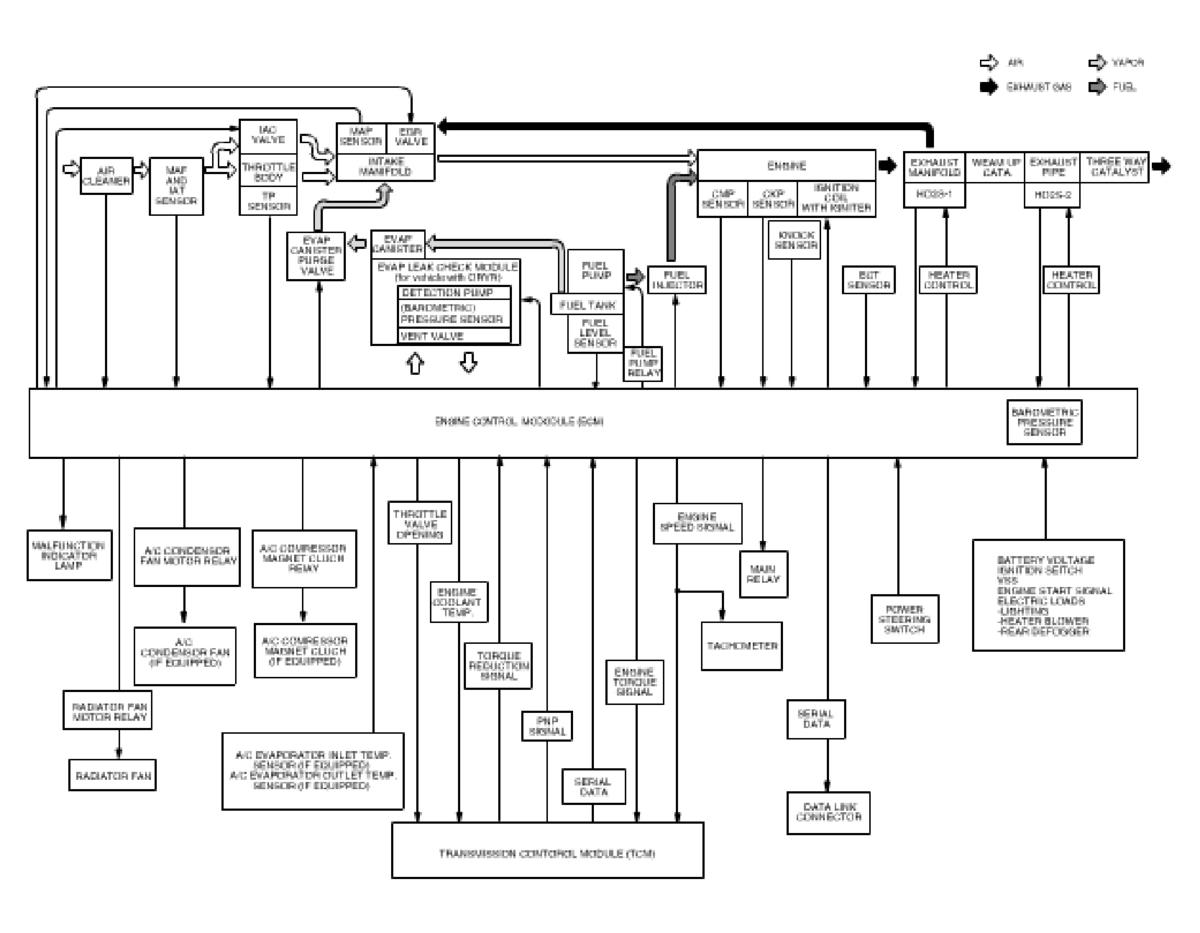

Fig 1: Engine And Emission Control System Flow Diagram
G04589407Courtesy of SUZUKI OF AMERICA CORP.
