Engine and Emission Control Input / Output Table

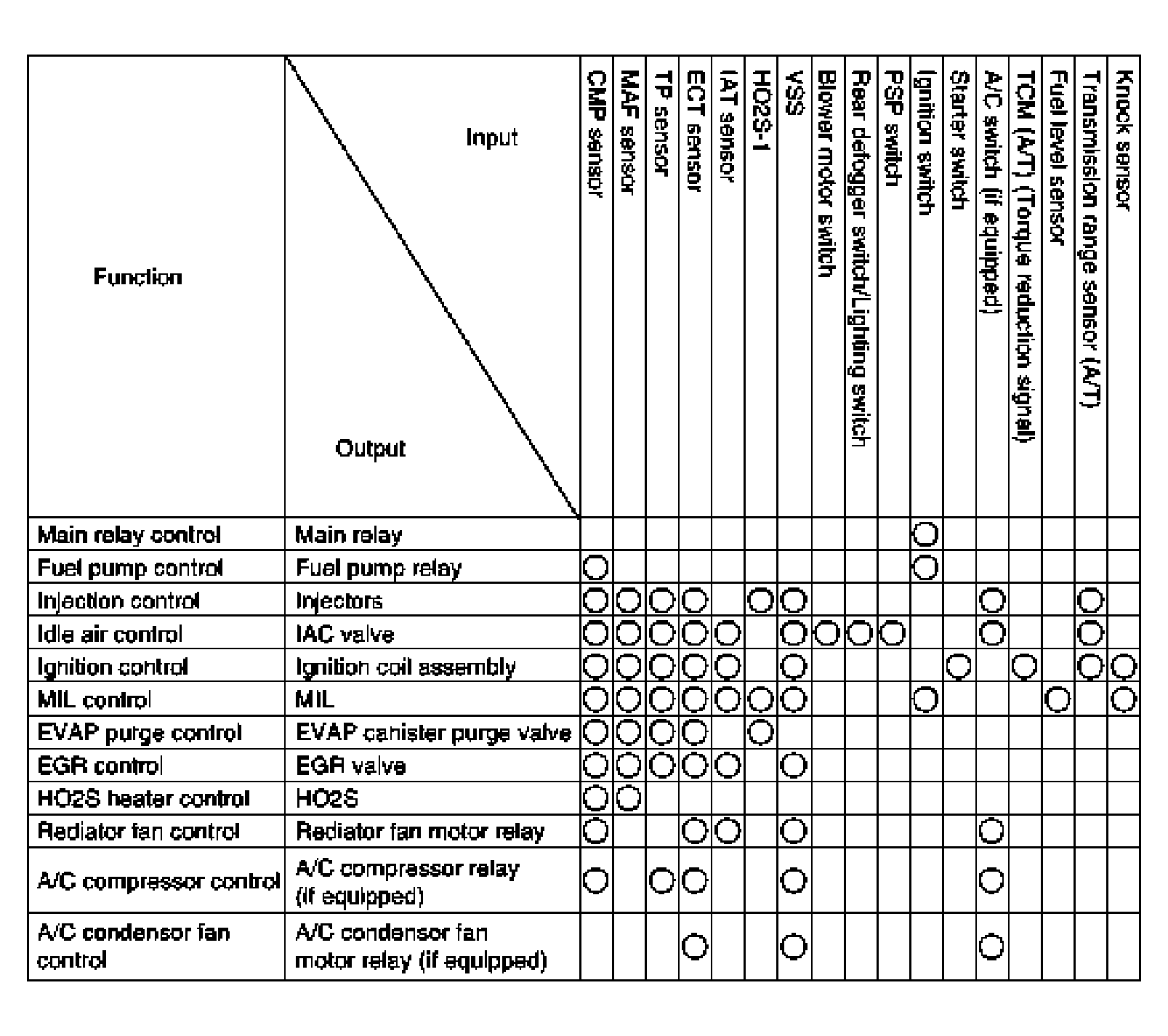

Fig 1: Engine And Emission Control Input / Output Table
G04589411Courtesy of SUZUKI OF AMERICA CORP.
