System Description / Monitoring Procedure

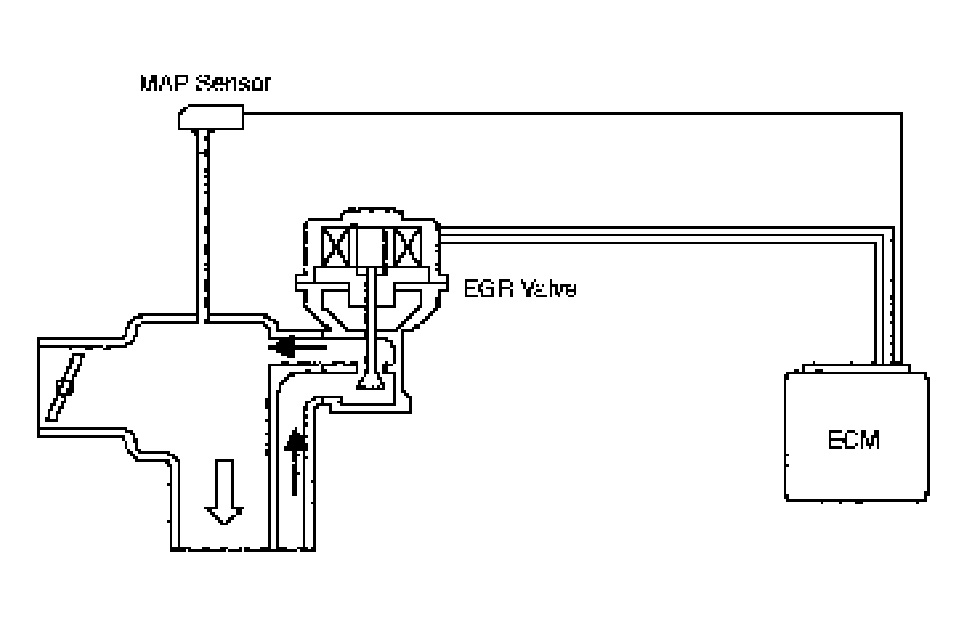

To monitor electric controlled EGR system, the system measures pressure change caused by switching of the EGR valve during deceleration condition and also measures the voltage of EGR valve stepping motor electrical circuit continuously.
