Manual Transmission Assembly Components

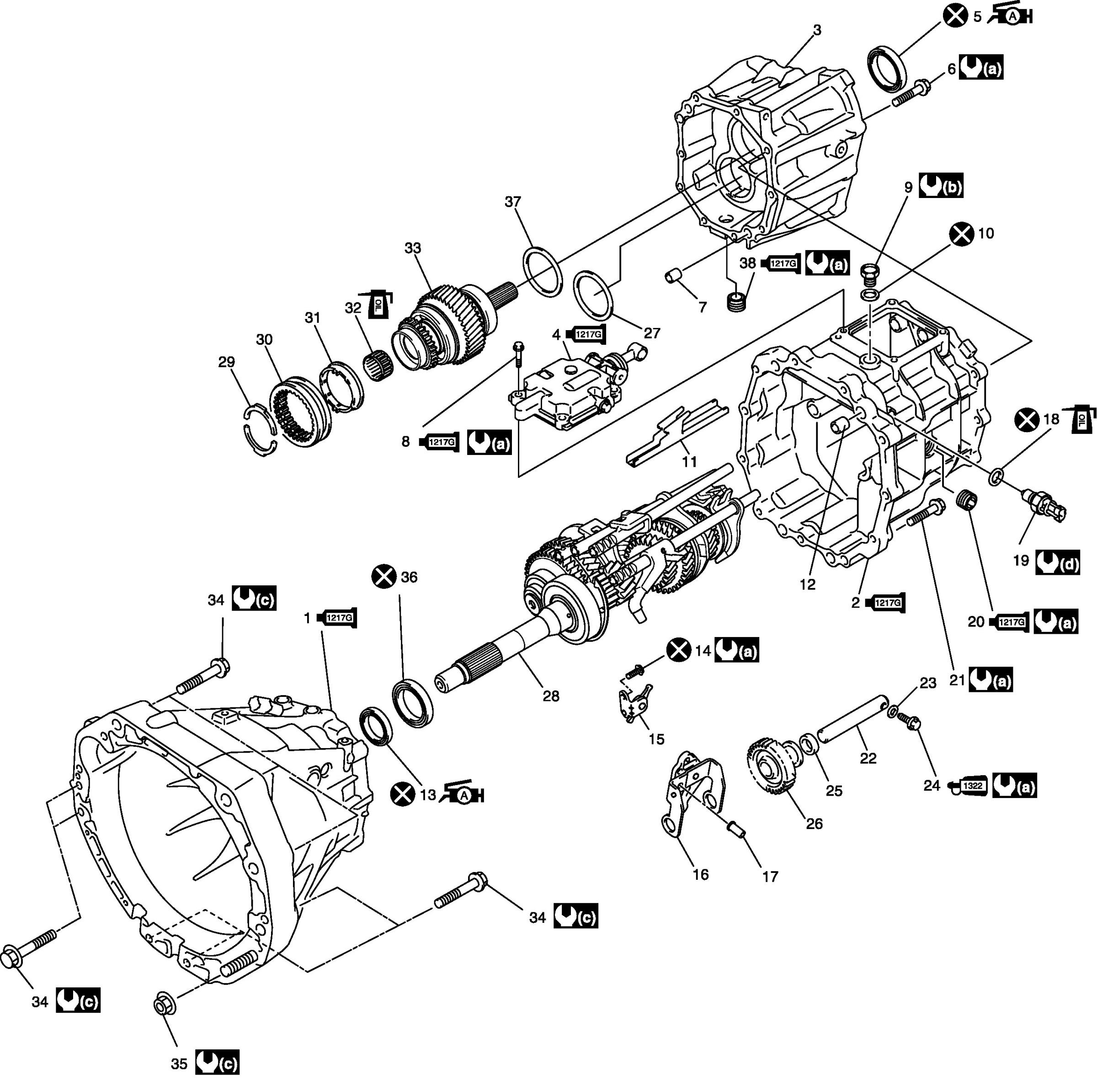

Manual Transmission Assembly Components (part 1):

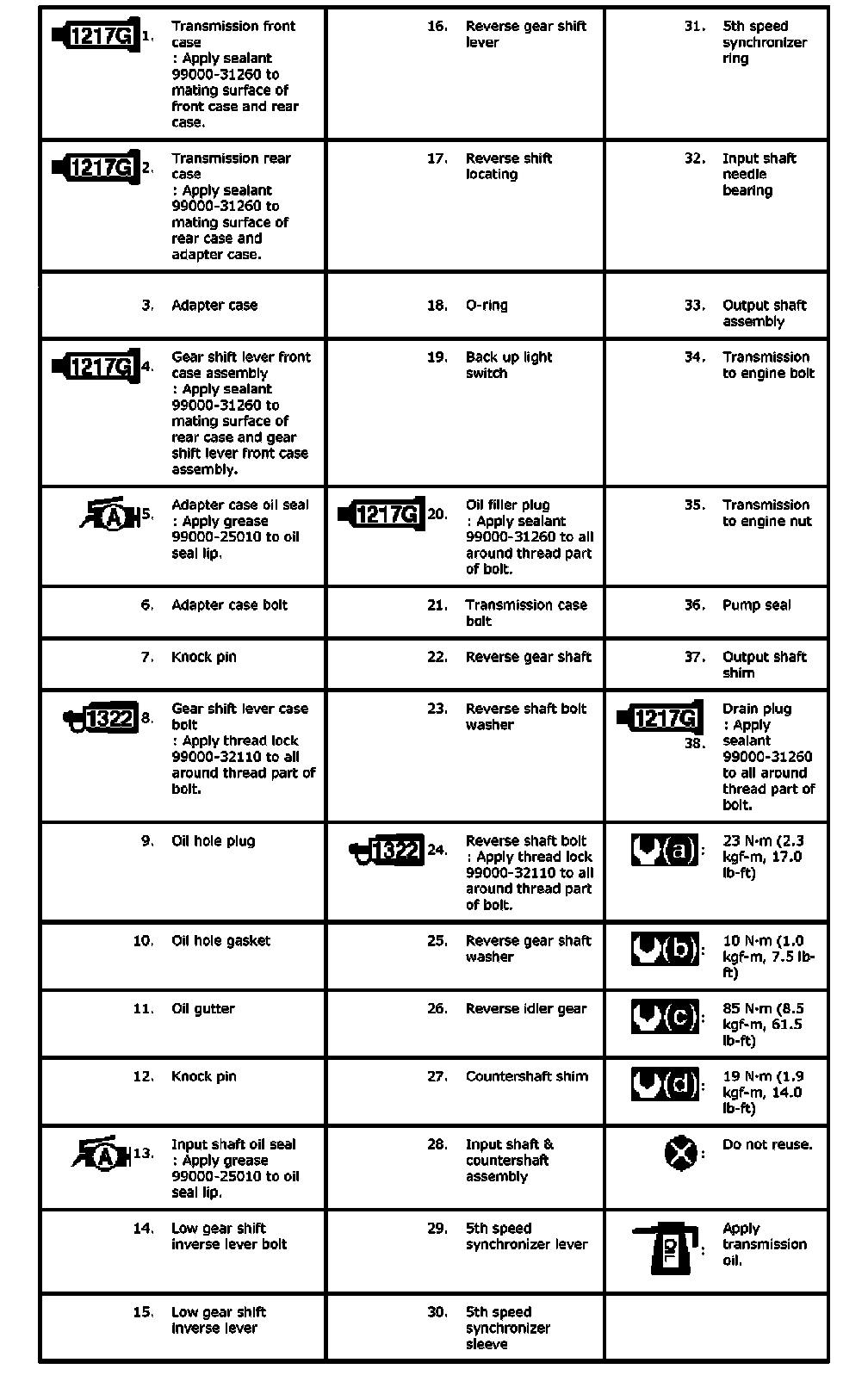

Manual Transmission Assembly Components (part 2):
