Control Module HVAC: Locations

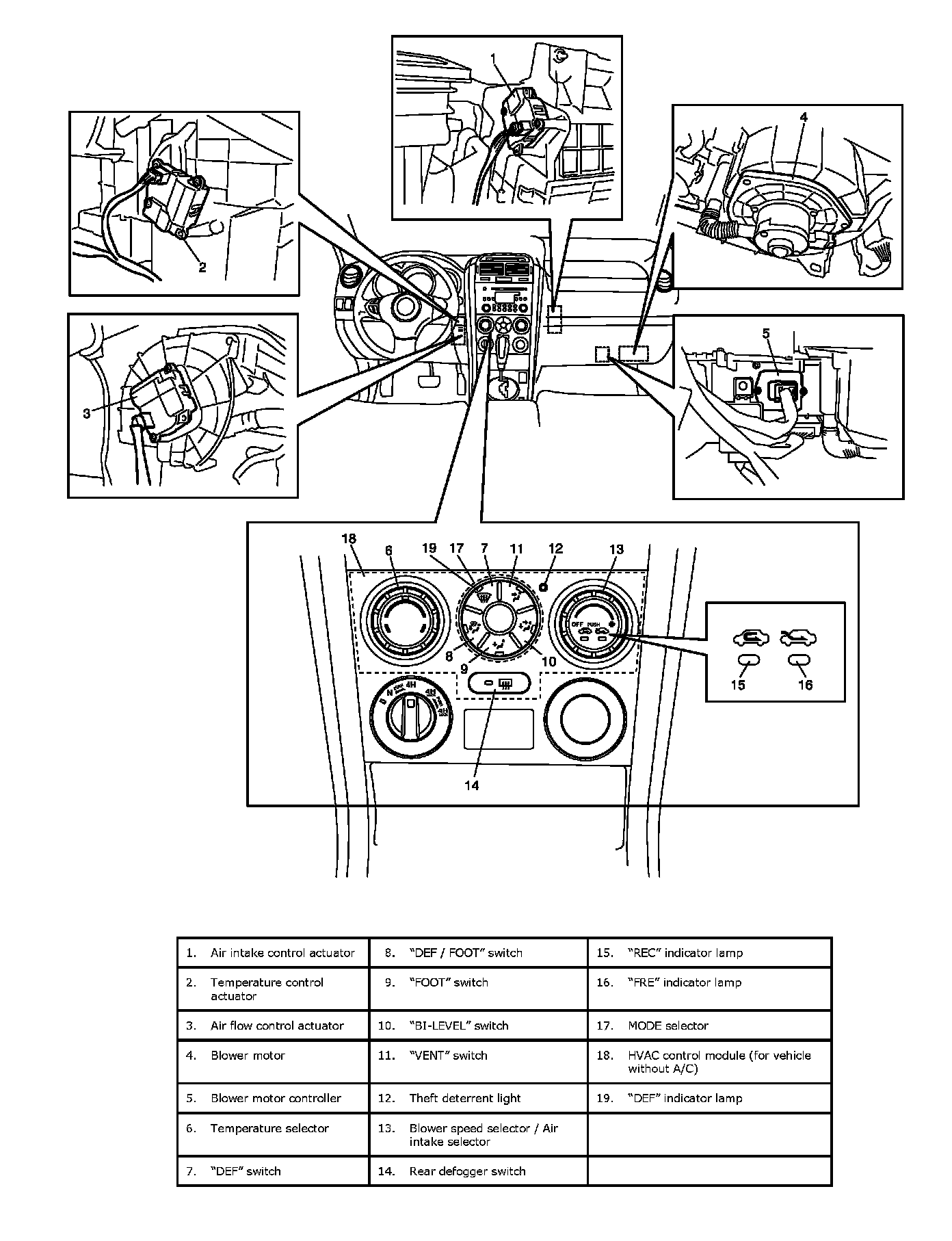

Electronic Components Location For Heater (For Vehicle Without A/C):

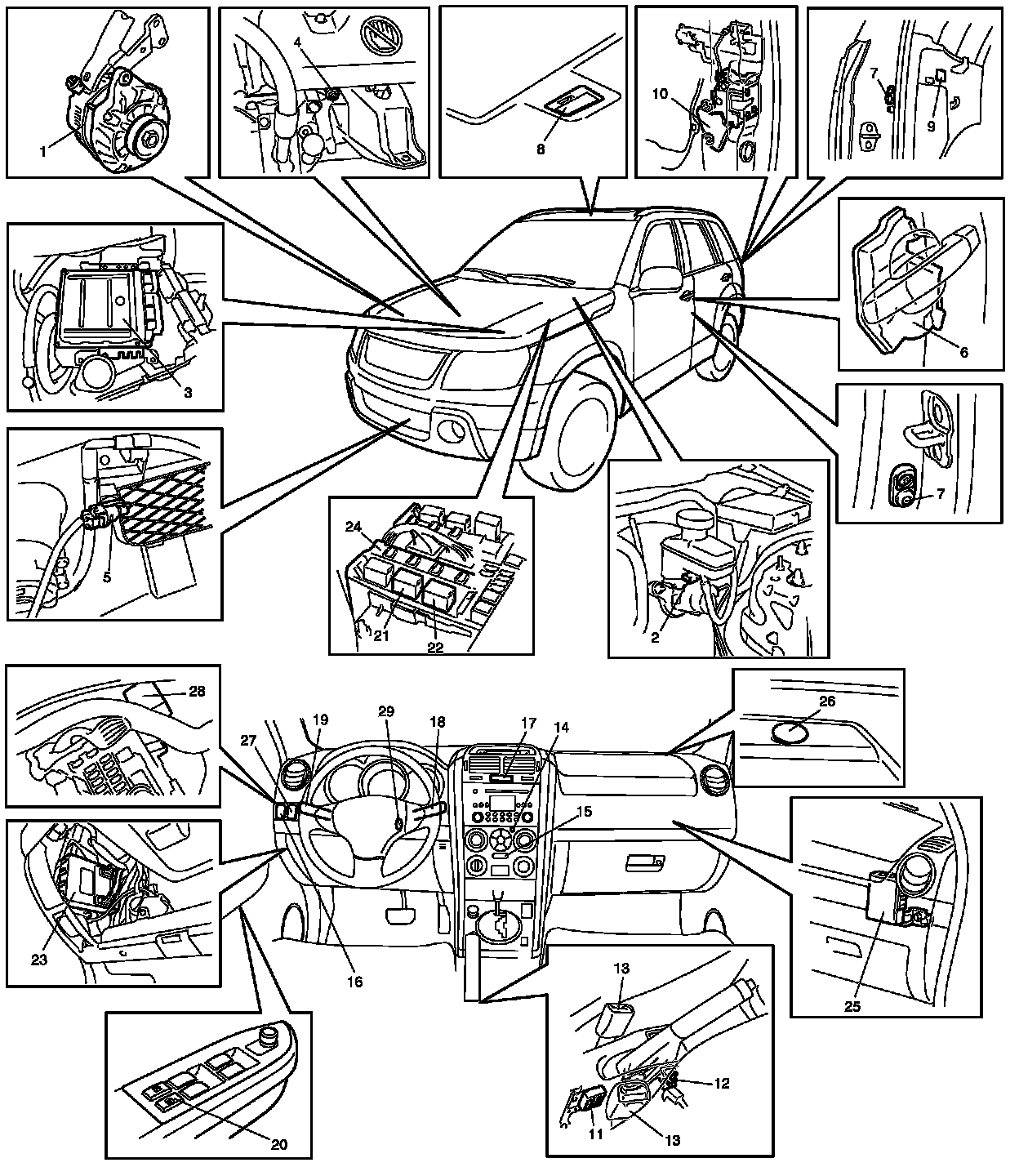

BCM And Related System Component Location Part 1:

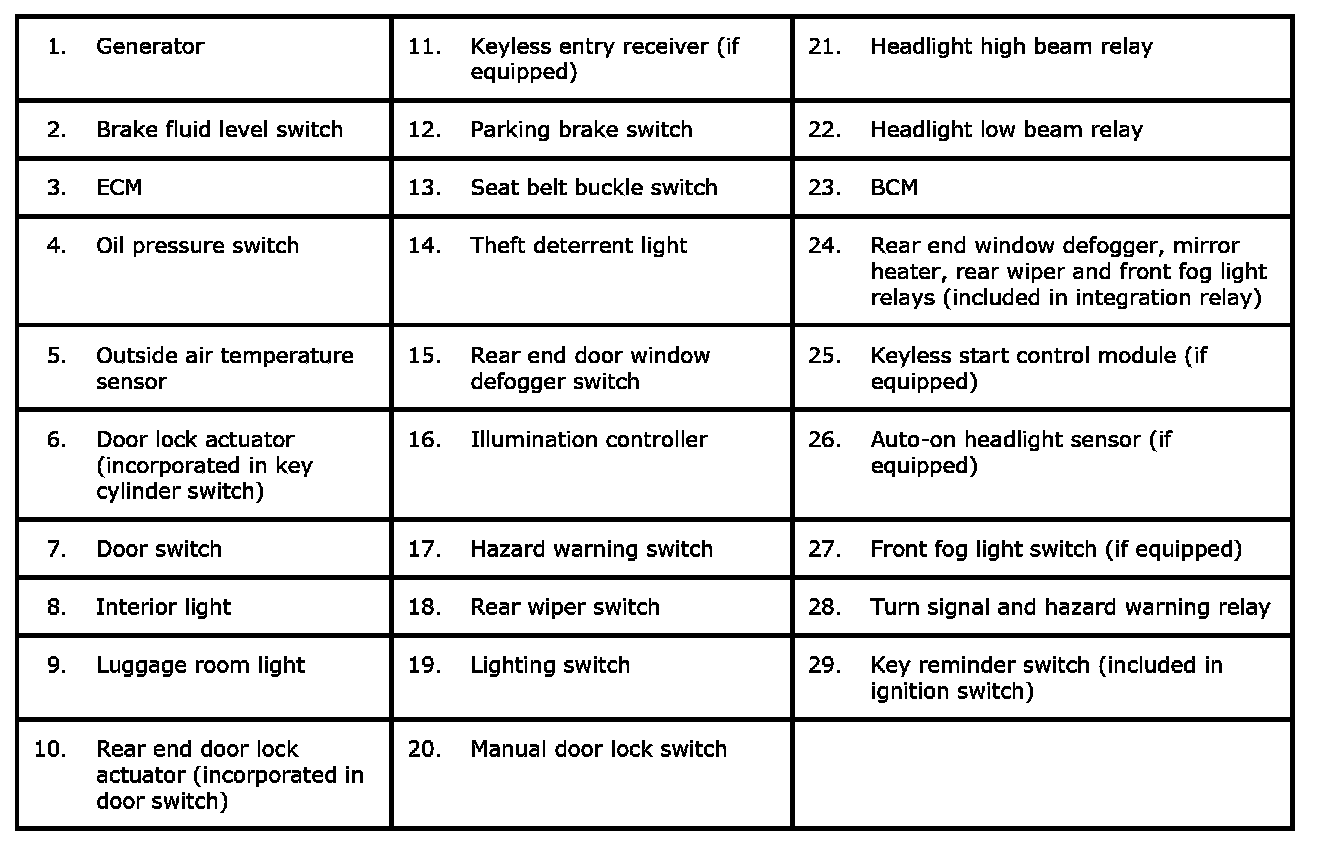

BCM And Related System Component Location Part 2:

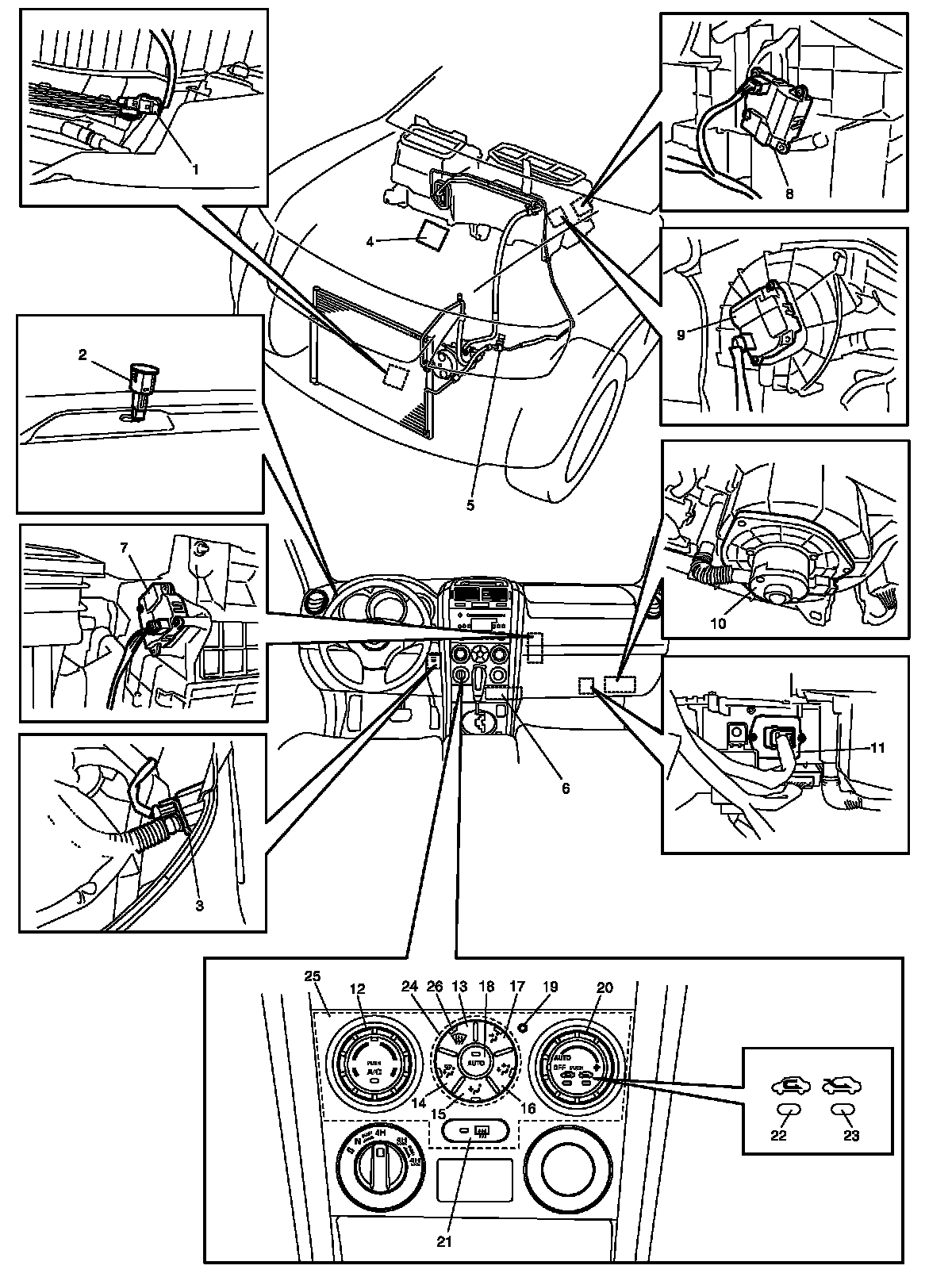

A/C Control System Components Location Part 1:

A/C Control System Components Location Part 2:
