TCM

Fail Safe Table
When any of the following DTCs is detected, TCM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when TCM detects normal condition after that.

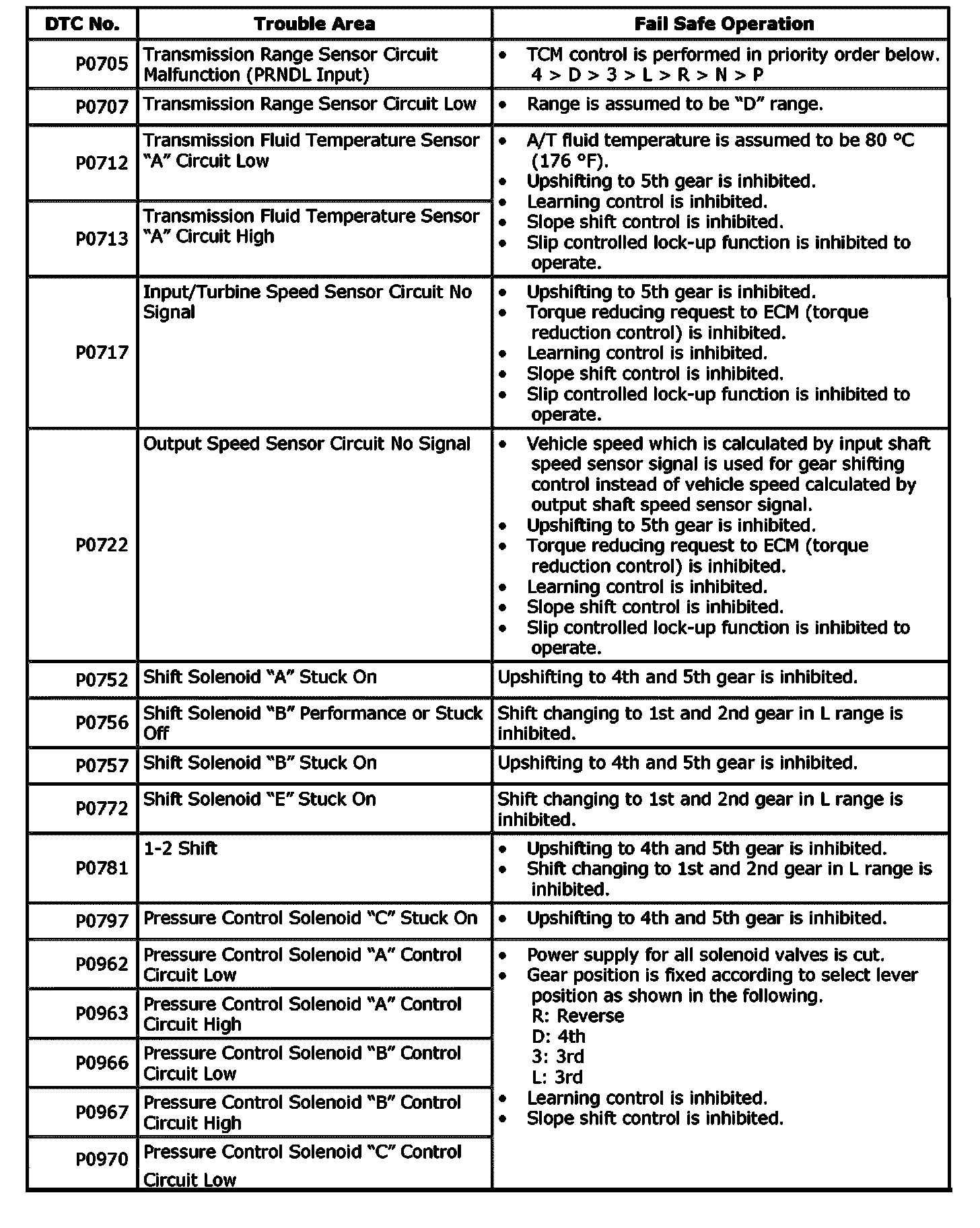

DTC P0705 - P0970:

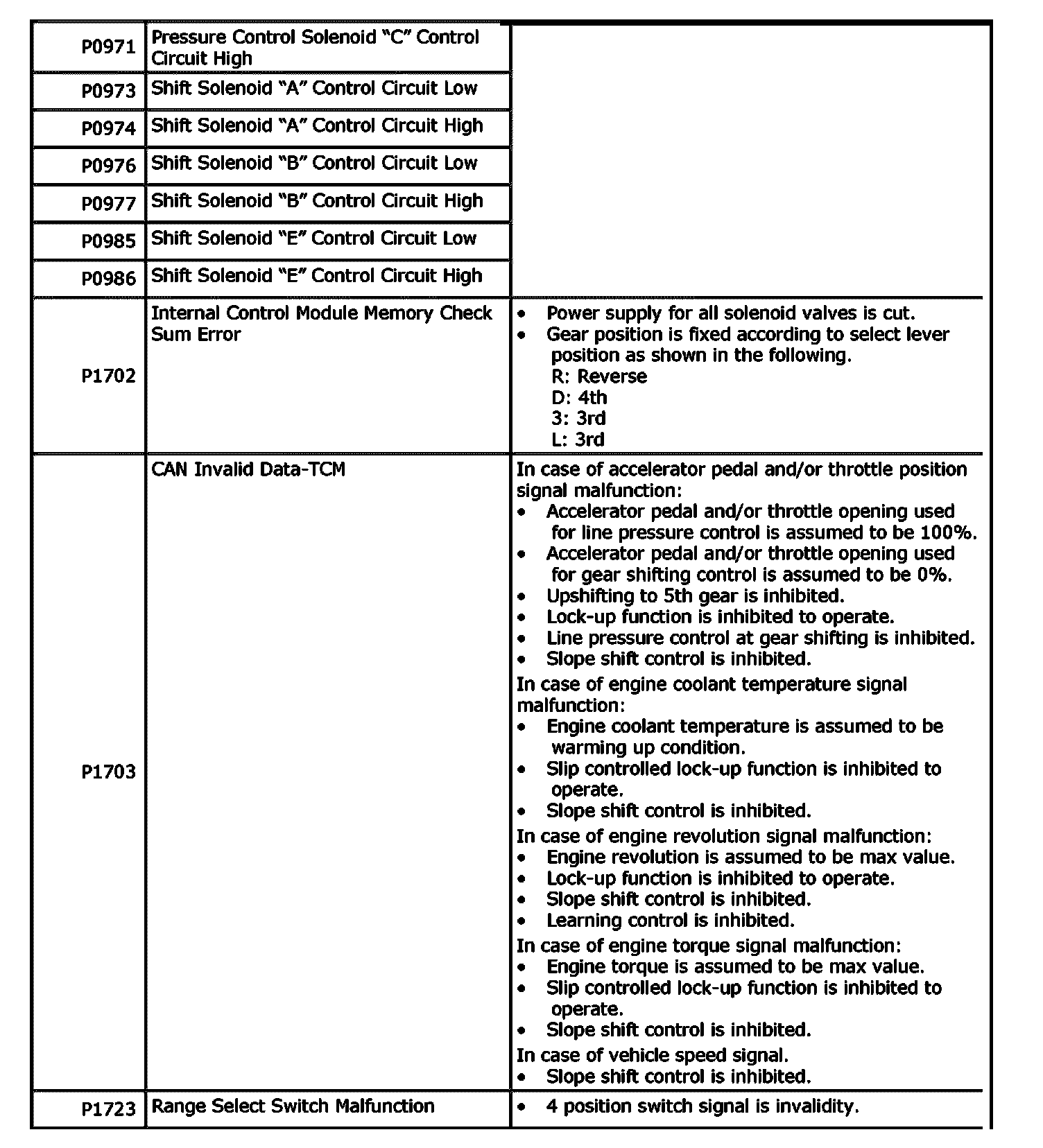

DTC P0971 - P1723:

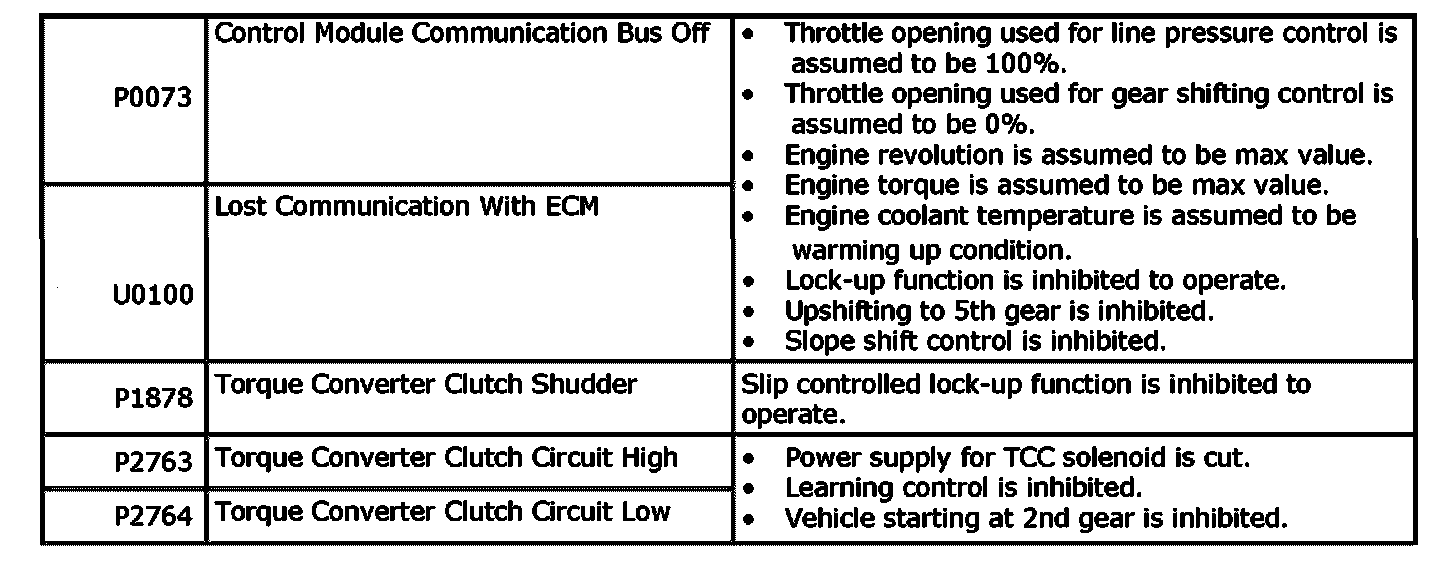

DTC P0073 - P2764:
