DTC P0480: Cooling Fan Relay 1 Control Circuit: Notes

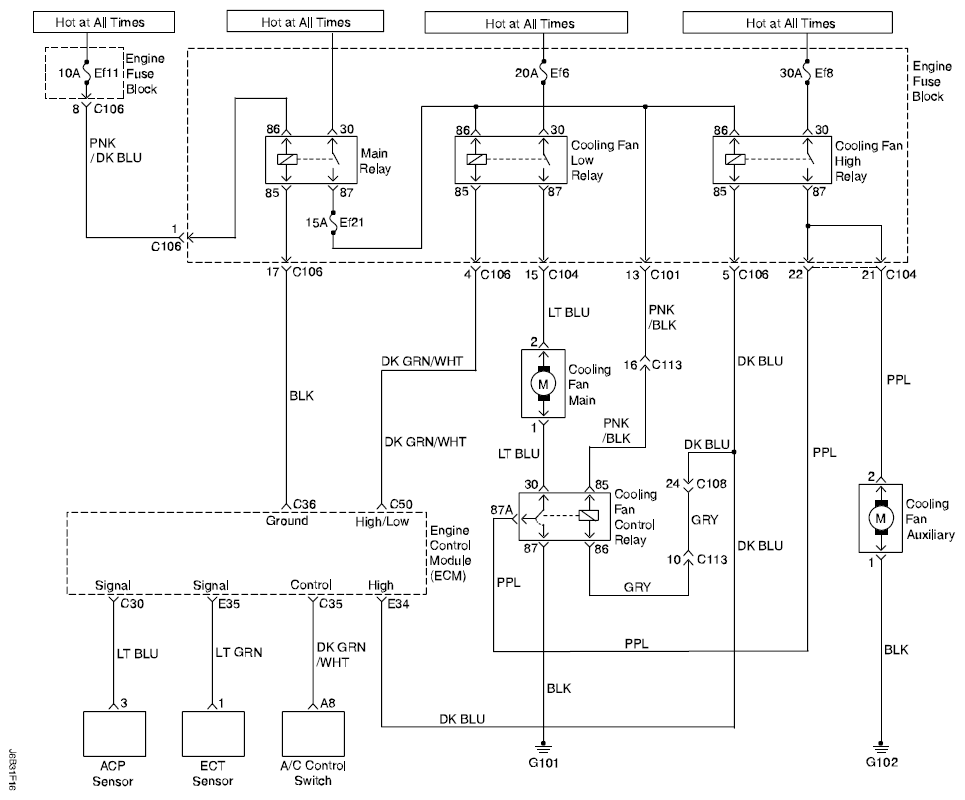

Fig 1: Cooling Fan Relay Control - Circuit Diagram
G04716297Courtesy of SUZUKI OF AMERICA CORP.
