DTC P0564: Cruise Control Multi-Function Switch Circuit: Notes

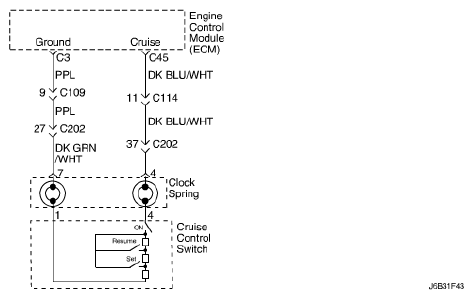

Fig 1: Cruise Control Multi-Function Switch - Circuit Diagram
G04716307Courtesy of SUZUKI OF AMERICA CORP.
