Shift Linkage Components

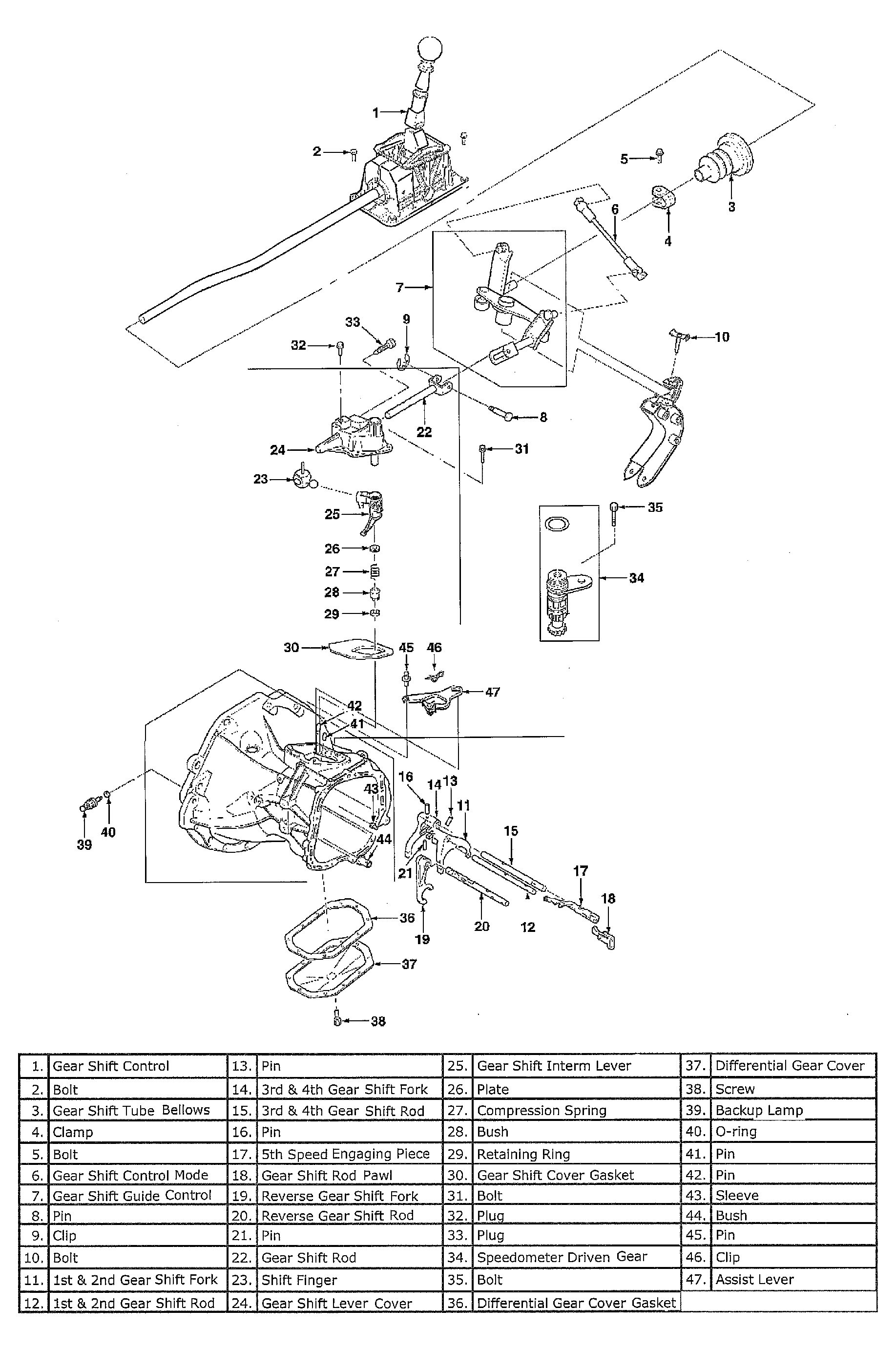

Fig 1: Identifying Shift Linkage Components (Type A)
G00104939Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Identifying Shift Linkage Components (Type B)
G00425711Courtesy of SUZUKI OF AMERICA CORP.
