Accelerator Pedal Module (APM) Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Tighten the APM retaining bolts to the APM support bracket.

    Tighten:

    Tighten the APM upper retaining bolts (a) to 8 - 12 N.m (17 - 106 lb-in.) and the lower retaining bolt (b) to 18 - 28 N.m (13 - 21 lb-in.).

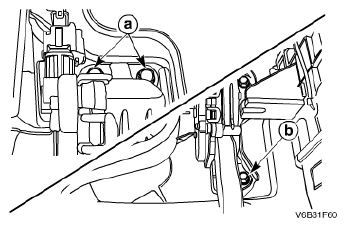

    Fig 1: Identifying APM Retaining Bolts
    G04718857Courtesy of SUZUKI OF AMERICA CORP.
