DTC P0404: Exhaust Gas Recirculation (EGR) Open Position Performance: Notes

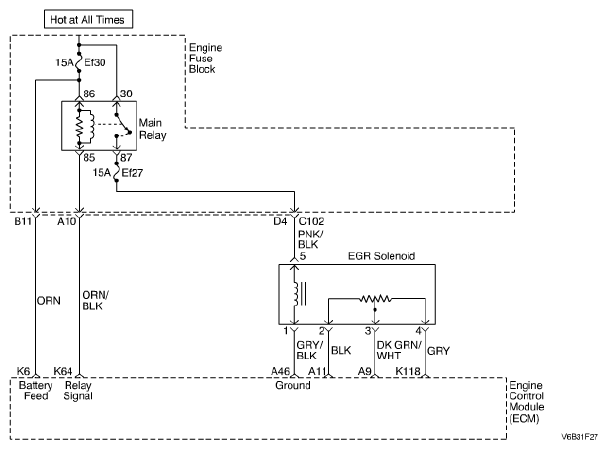

Fig 1: Exhaust Gas Recirculation (EGR) Open Position Performance - Wiring Diagram
G04718721Courtesy of SUZUKI OF AMERICA CORP.
