Power Window Regulator Removal

  1. Disconnect the negative battery cable.
  2. Remove the door glass. Refer to Front Door Glass Removal .
  3. Disconnect the electrical connector.
  4. Remove the nuts and the window regulator.

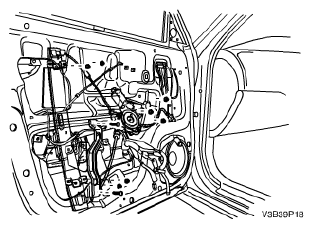

    Fig 1: Identifying Power Window Regulator With Nuts
    G04720436Courtesy of SUZUKI OF AMERICA CORP.
