P/S Pump Assembly Installation

Install the power steering pump into the vehicle and install the 2 long power steering pump bolts.
Tighten:

Tighten the power steering pump bolts to 25 N.m (18 lb-ft).
Swing the power steering pump bracket down and install the front right side bolt.
Tighten:

Tighten both of the right side power steering pump bracket bolts to 35 N.m (26 lb-ft).

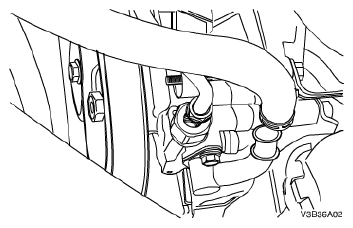

Fig 1: Identifying Power Steering Pump & Long Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Connect the supply hose to the power steering pump.
Connect the high-pressure hose fitting to the power steering pump.
Tighten:

Tighten the high-pressure hose fitting to 28 N.m (21 lb-ft).

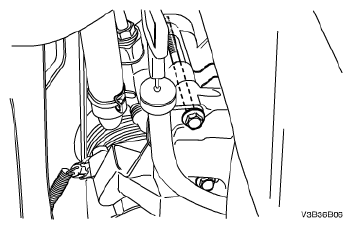

Fig 2: Identifying Pressure Line Pipe And Supply Line Hose
Courtesy of SUZUKI OF AMERICA CORP.
Install the serpentine accessory drive belt. Refer to Serpentine Accessory Drive Belt Installation .
Refill the power steering fluid. Refer to Checking and Adding Fluid .
Bleed the power steering system. Refer to Bleeding the Power Steering System .

Fig 3: Identifying Wrench And Serpentine Accessory Drive Belt
Courtesy of SUZUKI OF AMERICA CORP.
