Speed Sensitive Power Steering (SSPS) Control Module Installation

Connect the electrical connector to the SSPS control module.

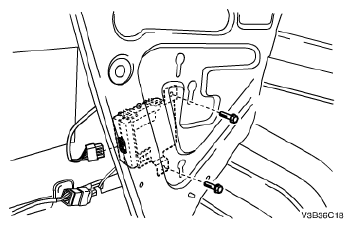

Fig 1: Identifying SSPS Control Module Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Install the SSPS control module with bolts.
Tighten:

Tighten the SSPS control module securing bolts to 9 N.m (80 lb-in.).
Install the luggage compartment wheel house trim panel. Refer to LUGGAGE COMPARTMENT WHEELHOUSE TRIM PANEL INSTALLATION .

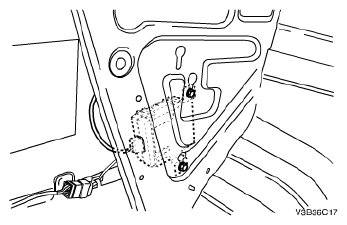

Fig 2: Identifying SSPS Control Module & Securing Bolts
Courtesy of SUZUKI OF AMERICA CORP.
