Transaxle Housing Components

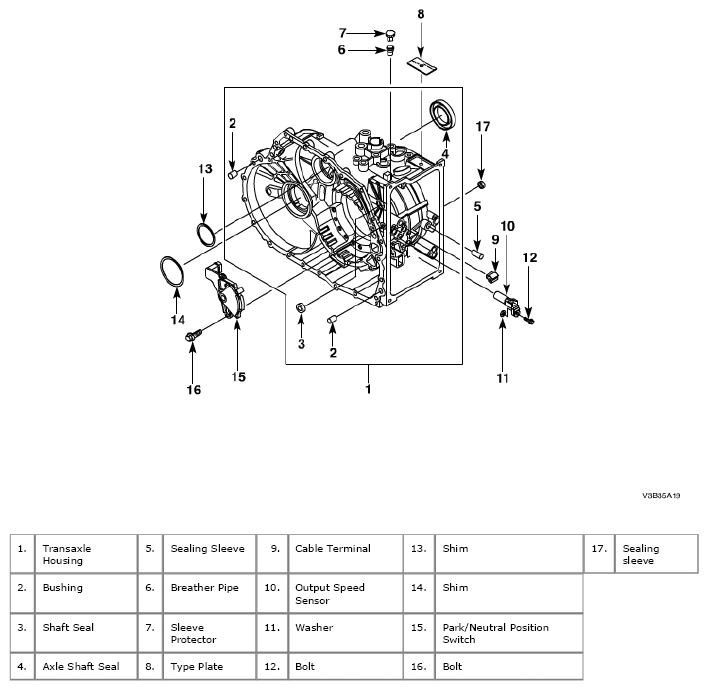

Fig 1: Identifying Transaxle Housing Components
G04719775Courtesy of SUZUKI OF AMERICA CORP.
