Automatic Transmission/Transaxle

Transaxle Wiring Harness Connector

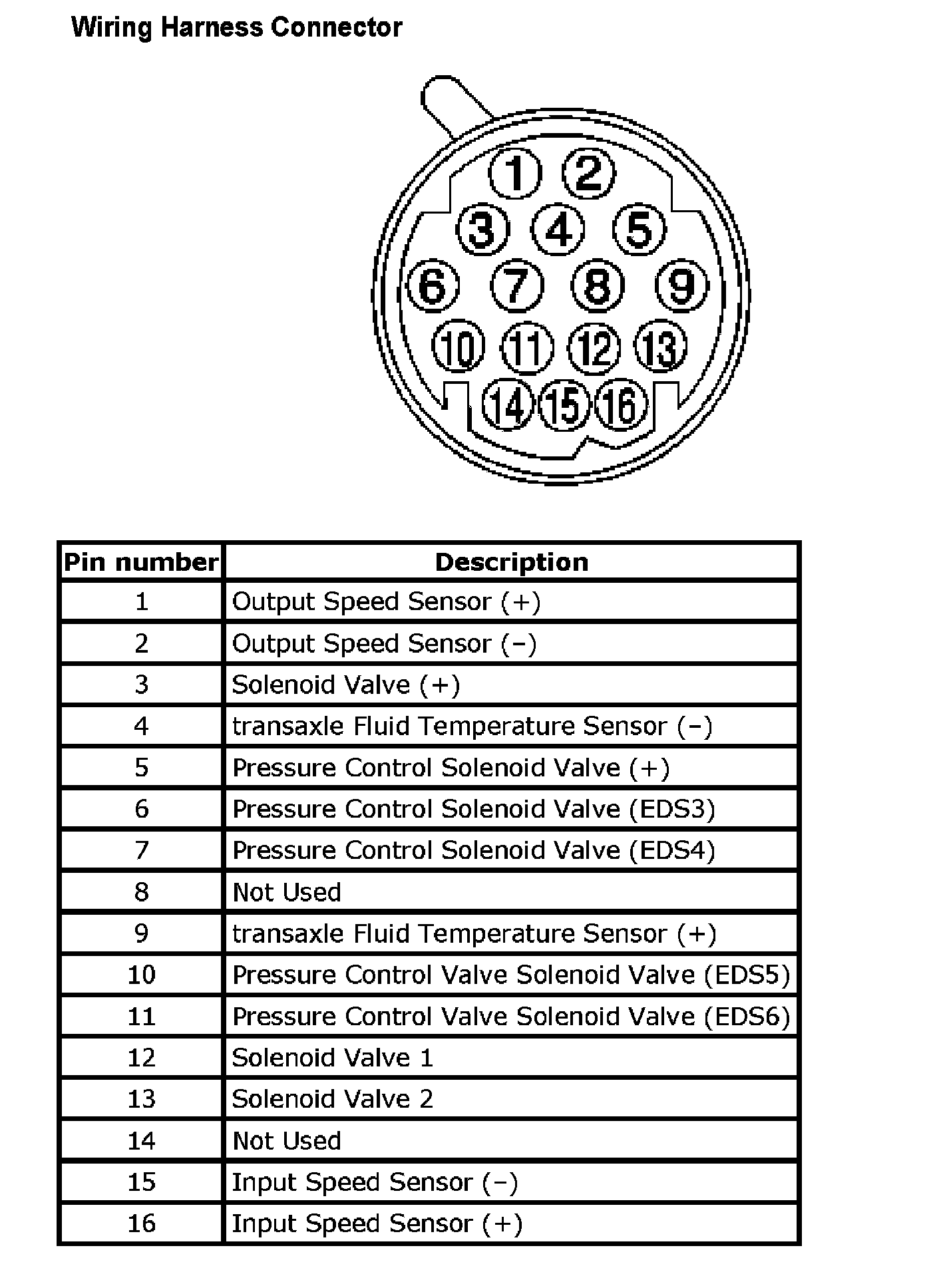

Wiring Harness Connector

Wiring Harness Connector:

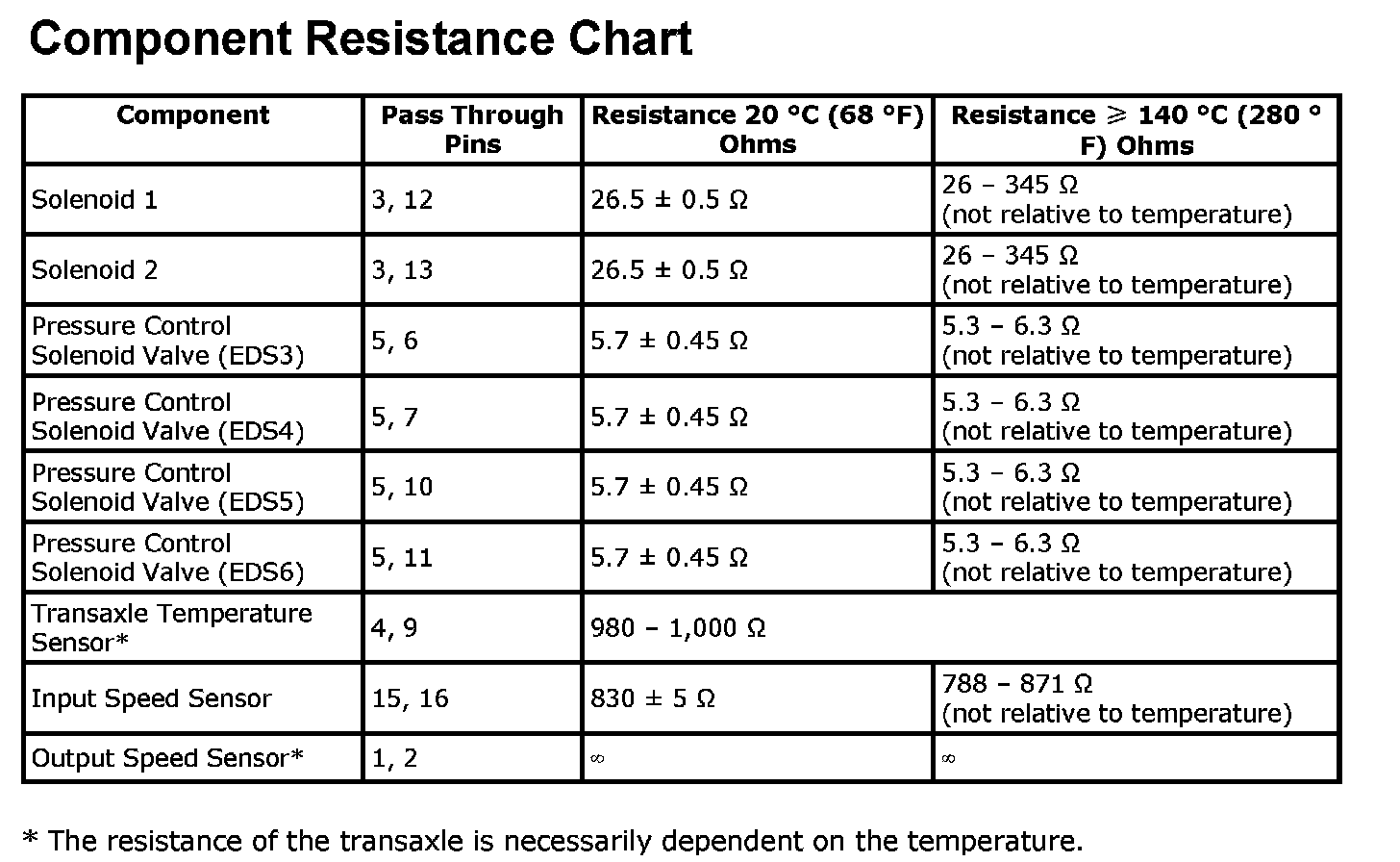

Component Resistance Chart

Component Resistance Chart:
