Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

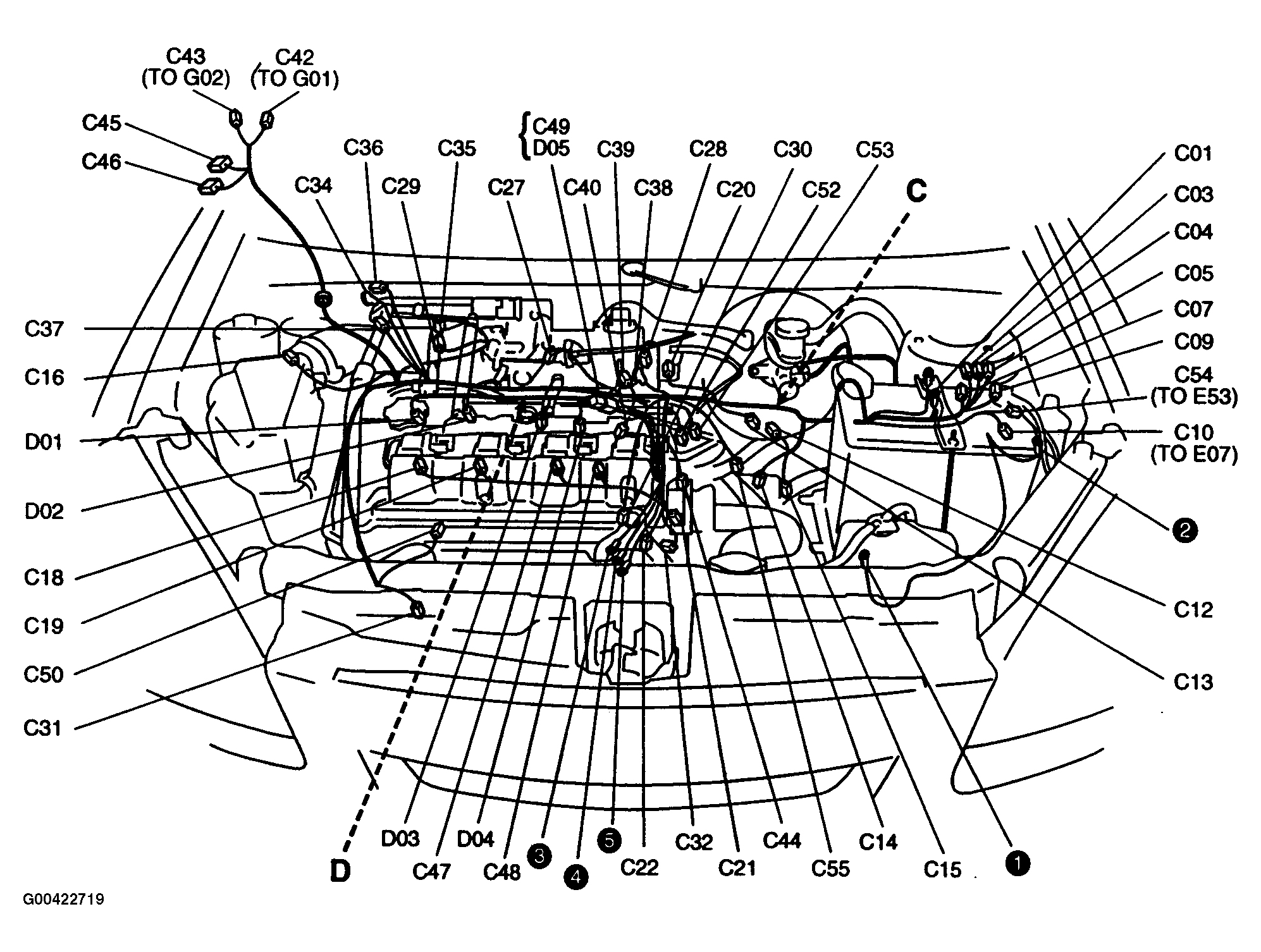

Main Fuse Box On left side of engine compartment. See Figure.

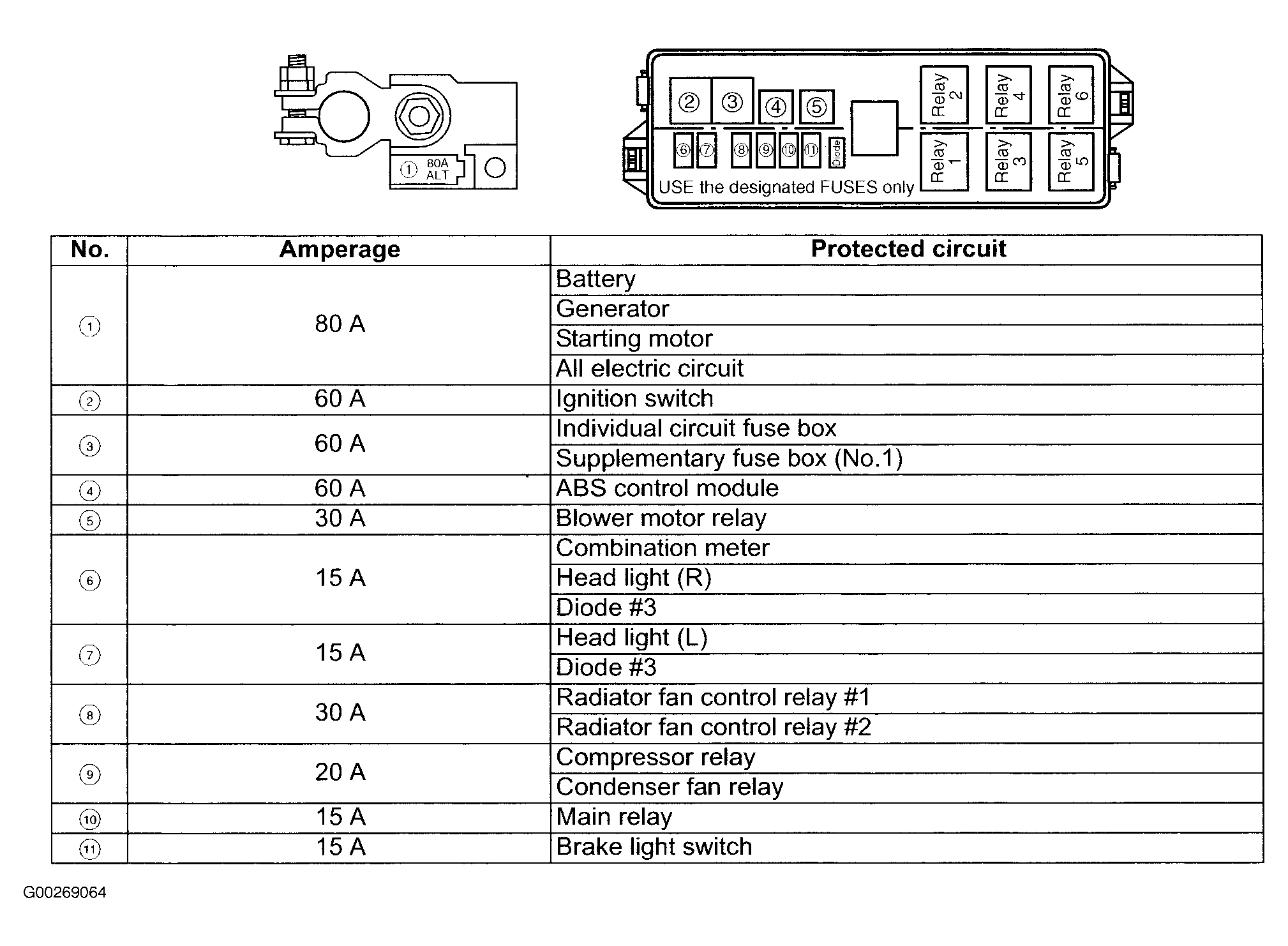

Main Fuse (C01) On battery. See Figure.
