Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

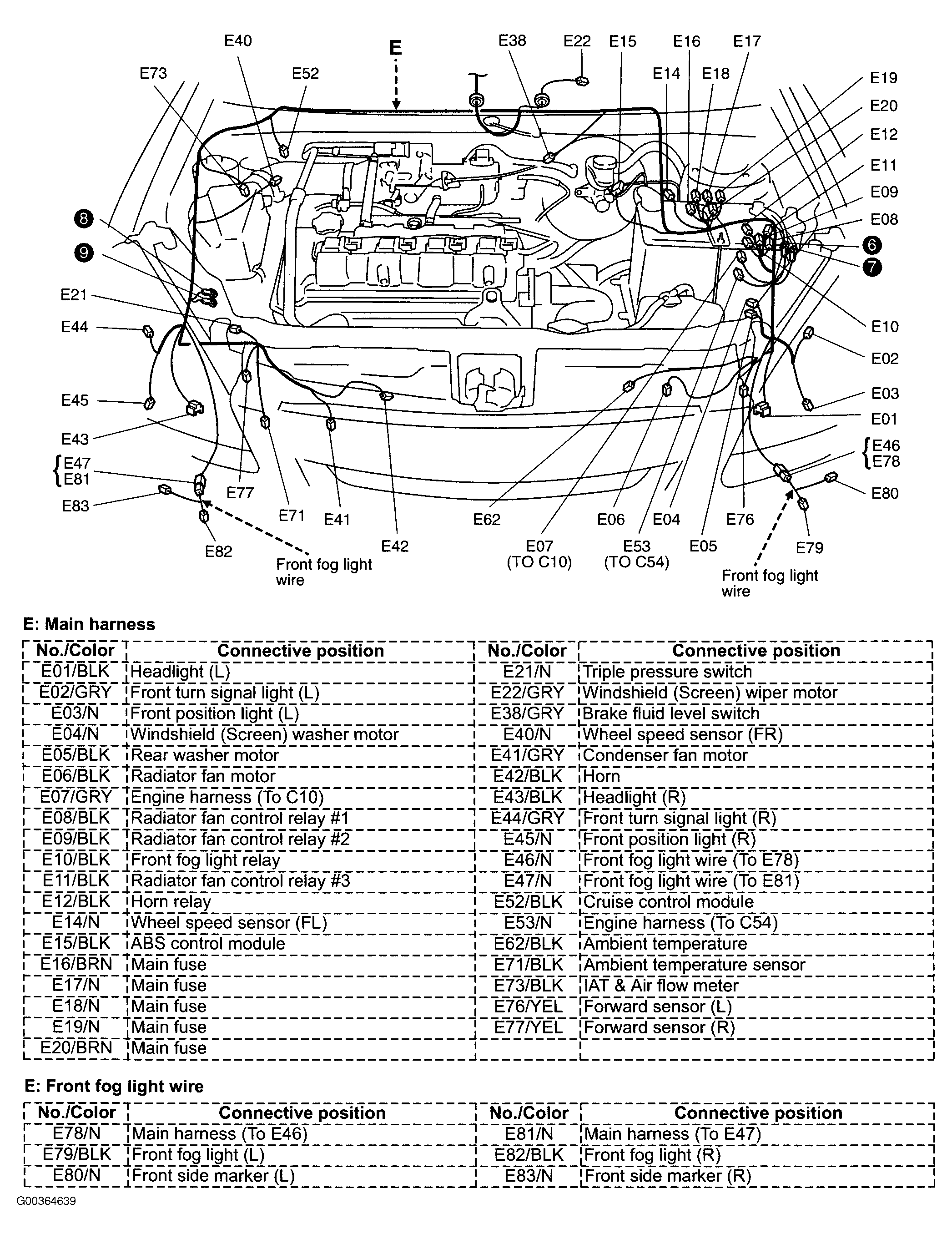

| ABS Control Module | Left rear of engine compartment. See Figure. |

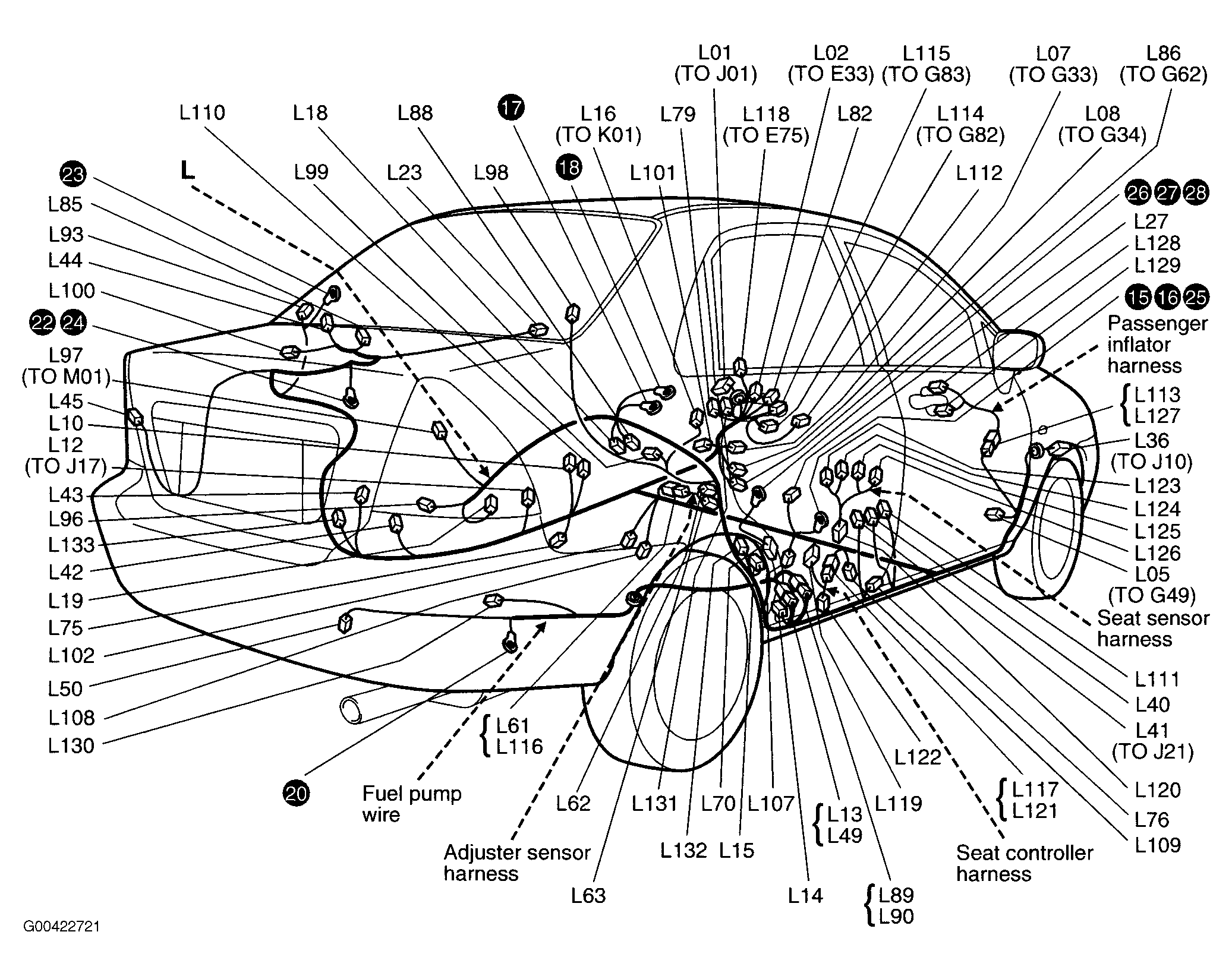

| A/B SDM (Sedan) (L107) | Below front console, forward of shift lever. See Figure. |

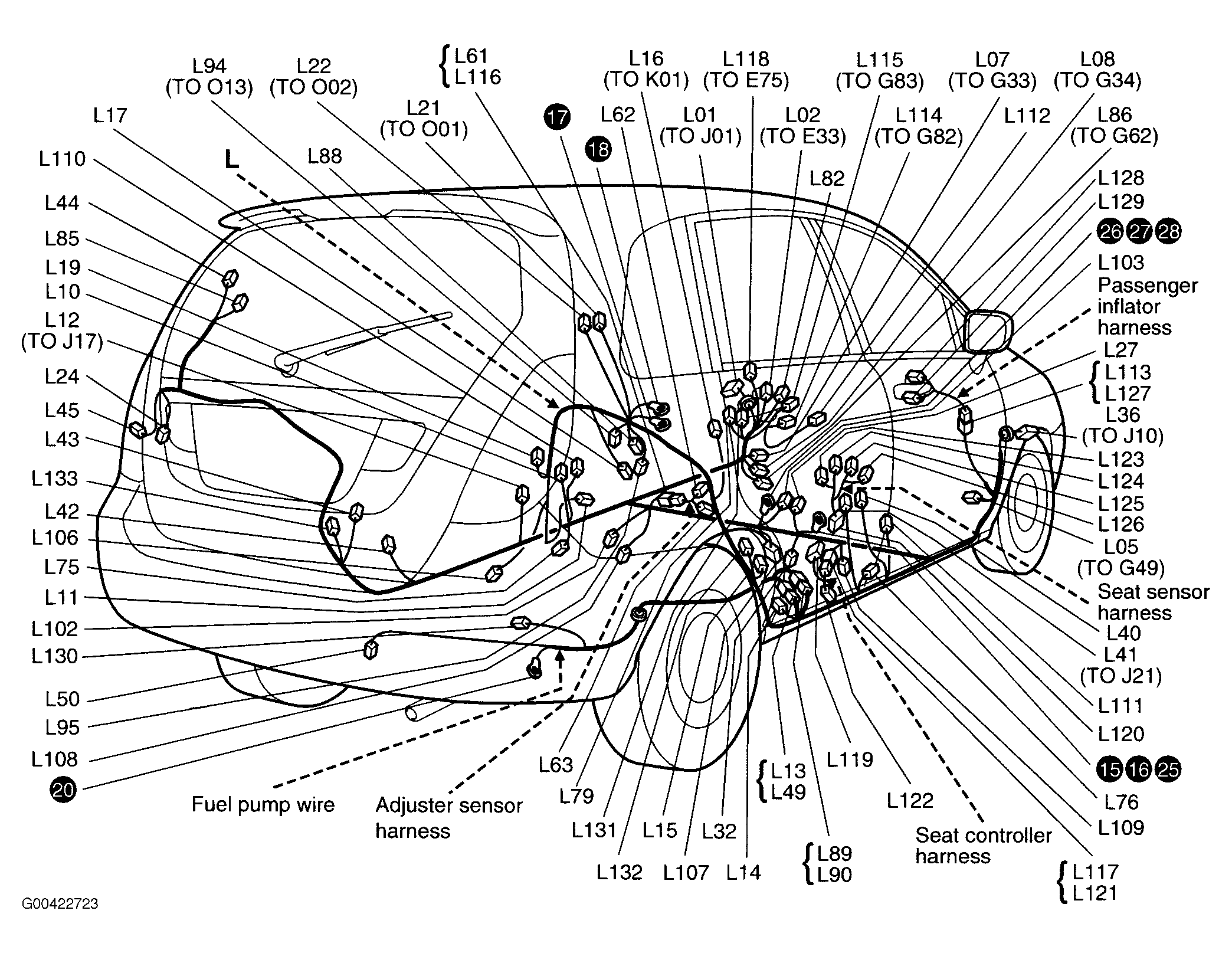

| A/B SDM (Wagon) (L107) | Below front console, forward of shift lever. See Figure. |
| Cruise Control Module | On engine, near throttle valve. See Figure. |
| Door Lock Controller (Sedan) (L82) | Behind lower left side of dash. See Figure. |
| Door Lock Controller (Wagon) (L82) | Behind lower left side of dash. See Figure. |

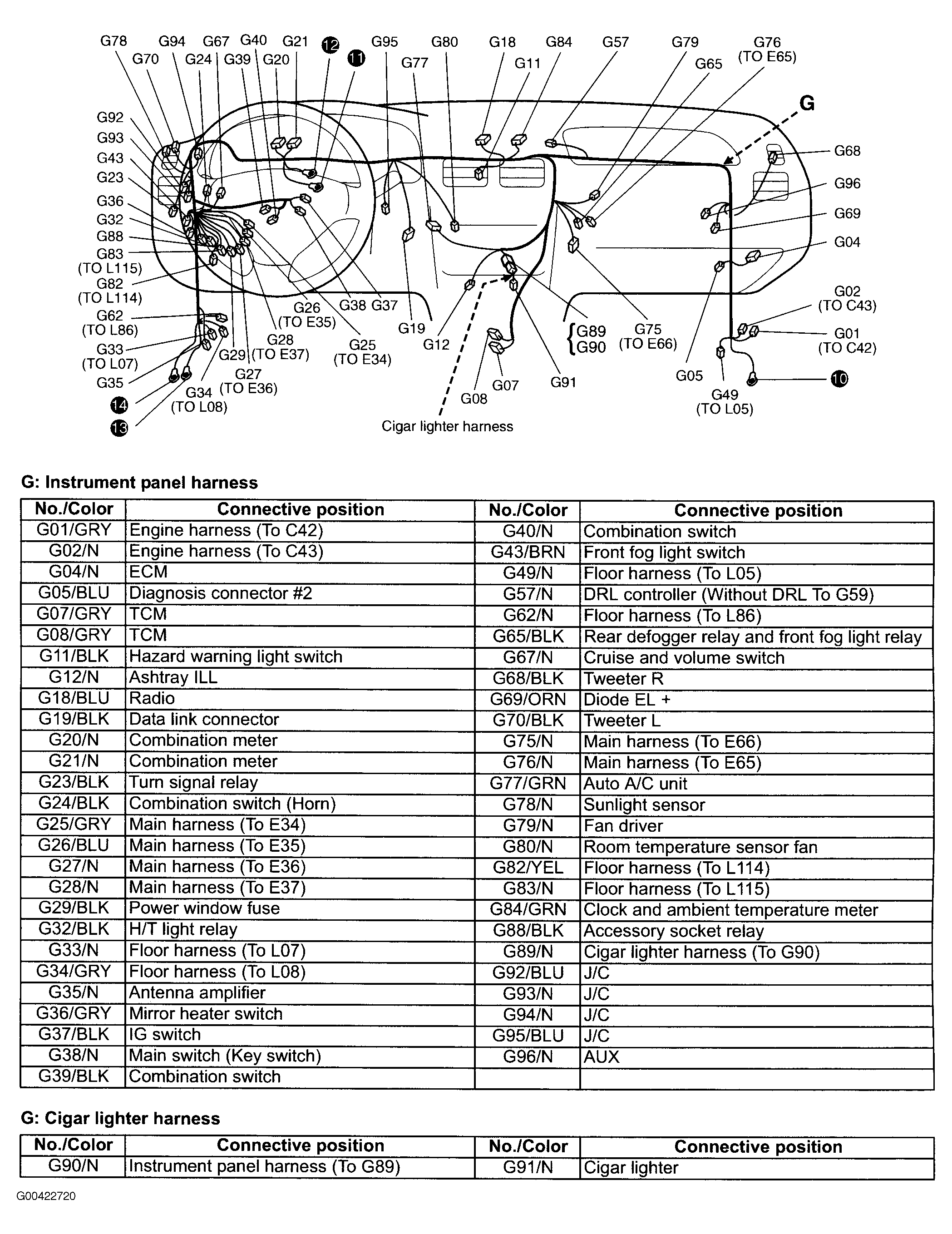

| DRL Controller | Behind dash, above left side of glove box. See Figure. |
| ECM | Behind glove box. See Figure. |
| ELCM (Sedan) (L130) | Under rear of vehicle. See Figure. |
| ELCM (Wagon) (L130) | Under left rear of vehicle. See Figure. |
| OCM (L119) | Base of right "B" pillar. See Figure. |
| 4 A/T Controller | Behind center of dash, below radio. See Figure. |
