P/S Pump Components

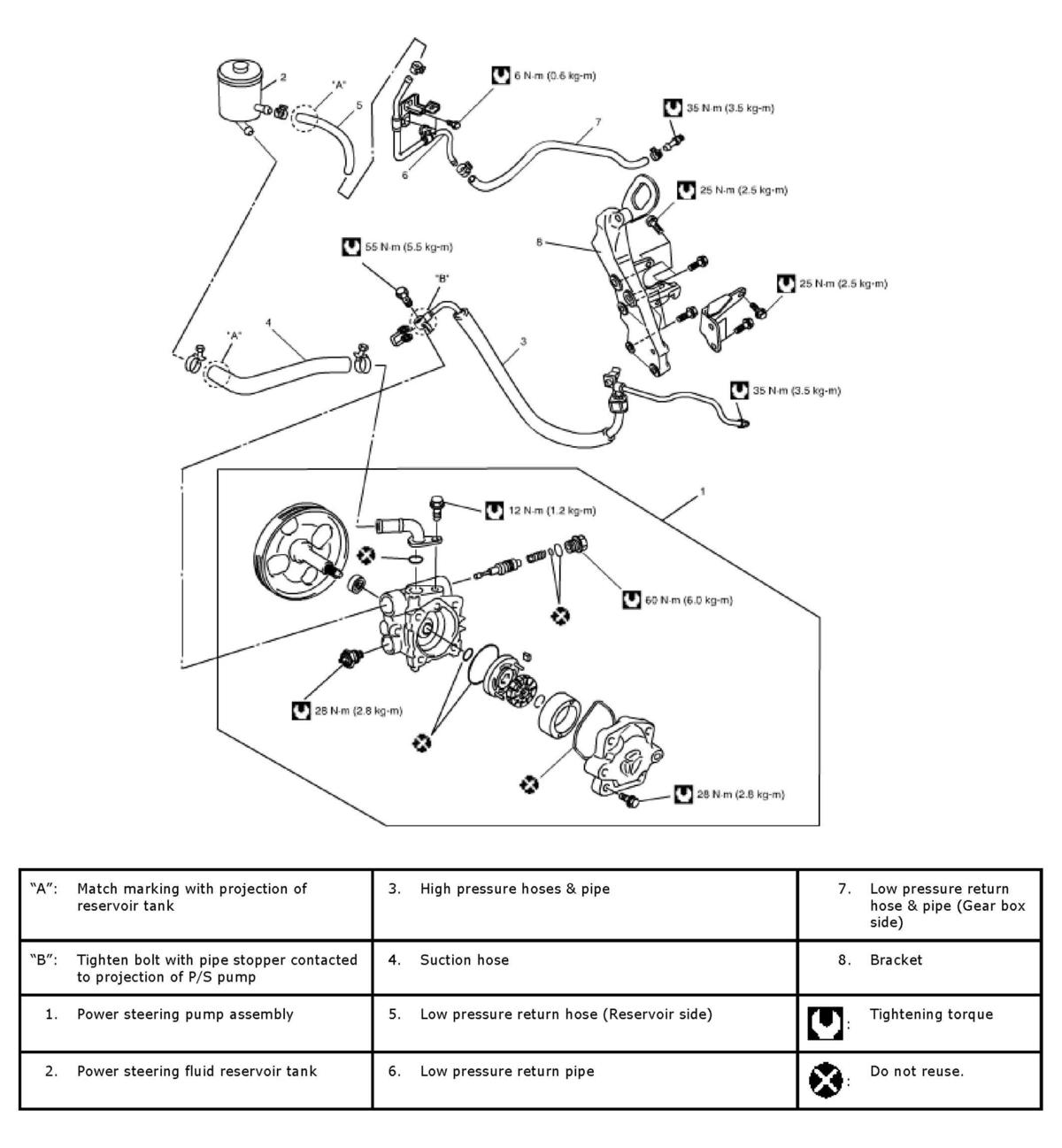

Fig 1: Identifying P/S Pump Components (With Tightening Torques)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
