P/S Pump Disassembly and Assembly: Assembly

Reference: P/S PUMP INSPECTION

Reverse disassembly procedure for assembly, noting the following.

1. Apply grease to oil seal lip (1). Apply power steering fluid to sliding surface of the shaft (2) and then insert shaft in the pump body.

   "A": Grease 99000-25010

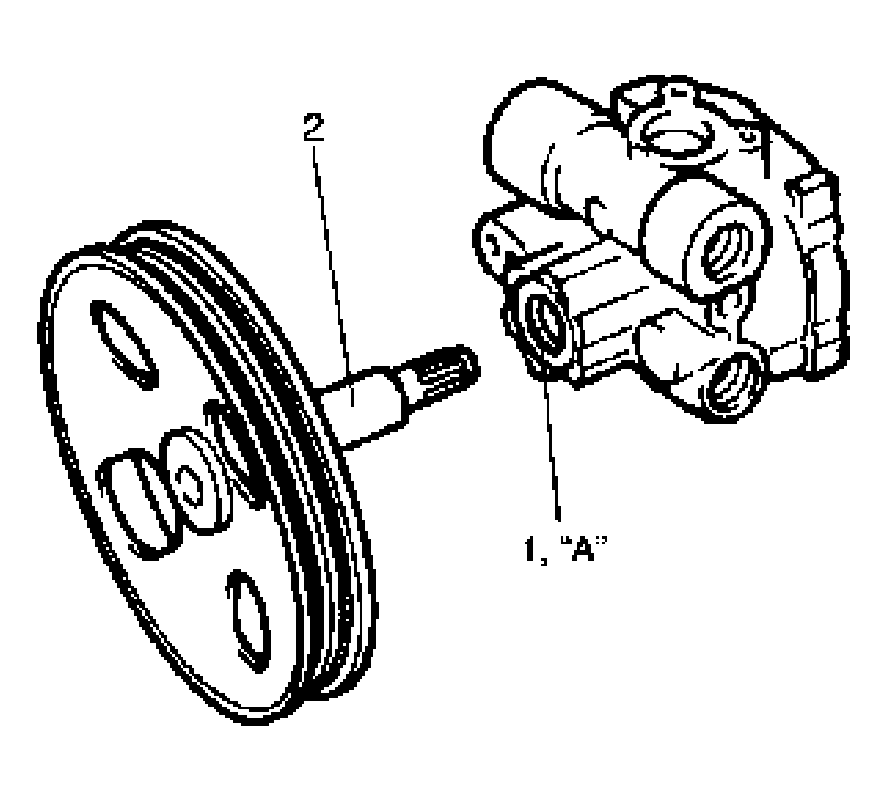

   Fig 1: Applying Grease To Oil Seal Lip

   Courtesy of SUZUKI OF AMERICA CORP.
2. Apply power steering fluid to O-rings (1) and fit them to pump body.

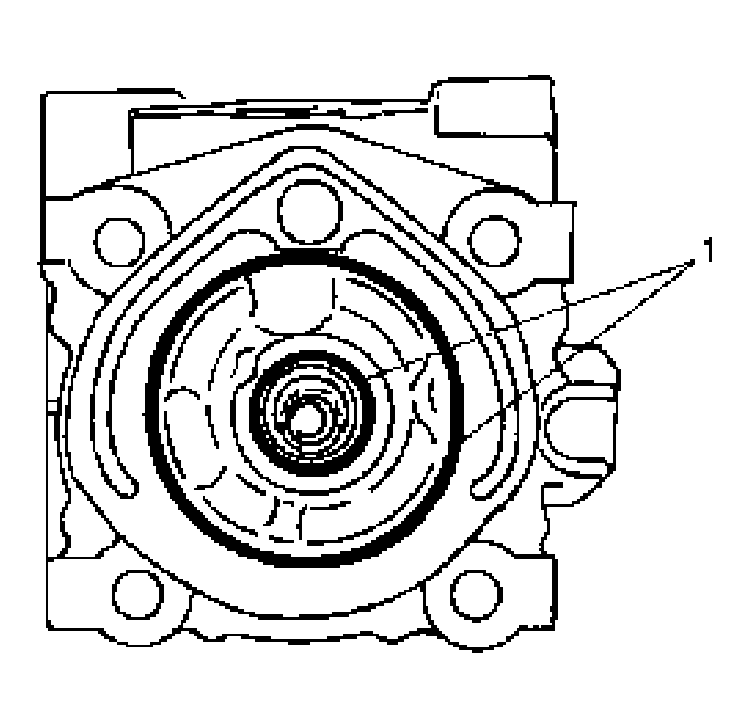

   Fig 2: Applying Power Steering Fluid To O-Rings

   Courtesy of SUZUKI OF AMERICA CORP.

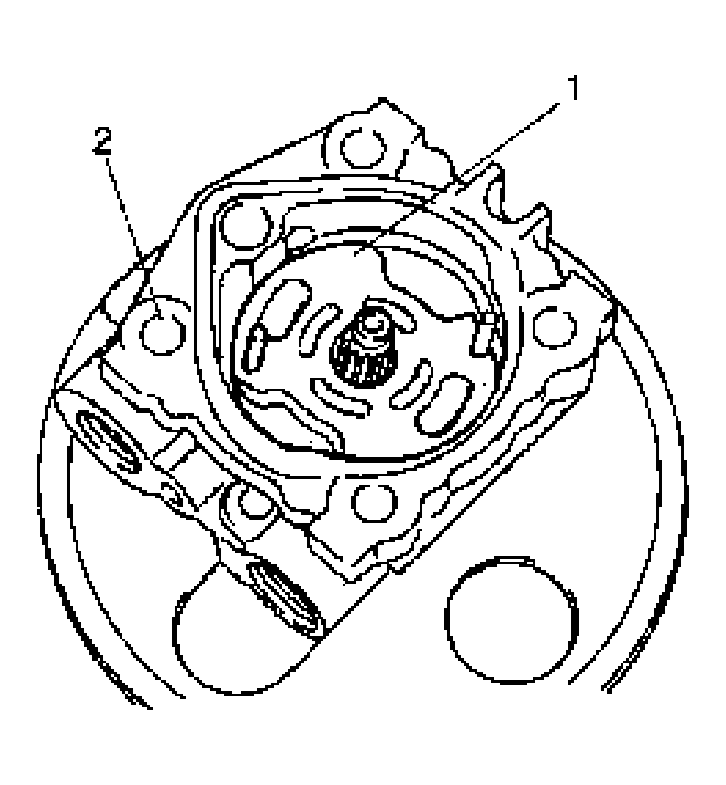

3. Install side plate (1) to pump body.
   NOTE: Carefully align the dowel pins on the side plate (1) with the bolt hole (2) as shown in the figure.
   Fig 3: Installing Side Plate To Pump Body

   Courtesy of SUZUKI OF AMERICA CORP.

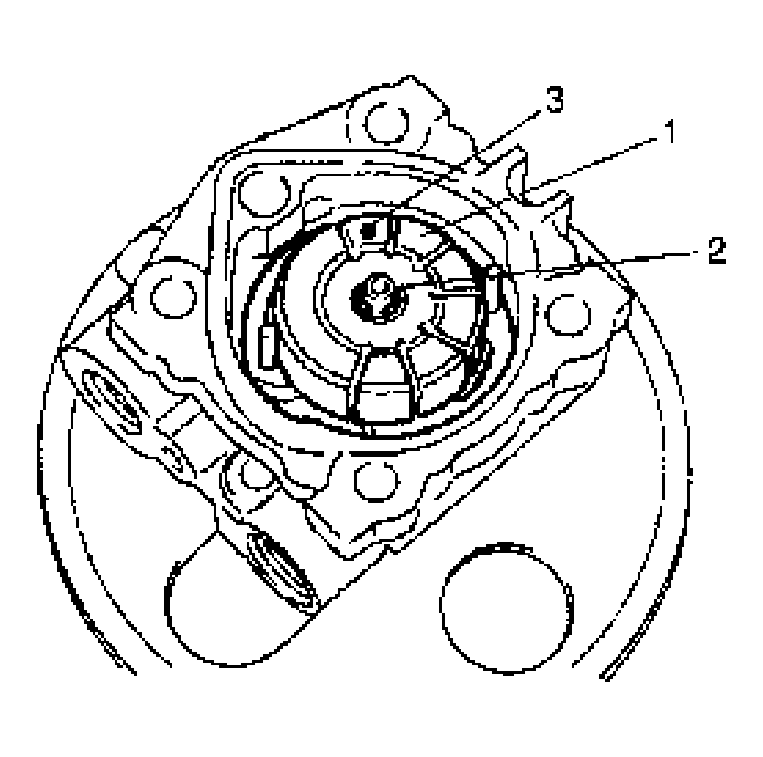

4. Apply power steering fluid to sliding surface of rotor (1).
5. Install rotor to shaft, directing dot (3) marked side of rotor facing up.
6. Install new snap ring (2) to shaft, then make sure to fit snap ring into shaft groove securely.
   NOTE: Never reuse the removed snap ring.
   Fig 4: Installing Snap Ring To Shaft

   Courtesy of SUZUKI OF AMERICA CORP.

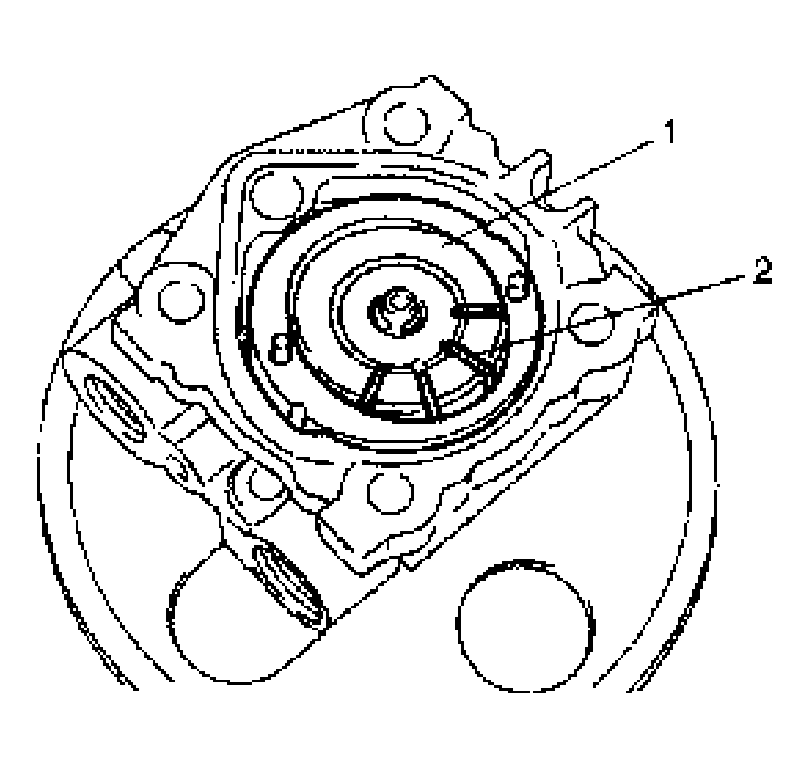

7. Apply power steering fluid to sliding surface of cam ring (1).
8. Install cam ring to pump body. The tapered end of cam ring (1) should face the side plate (2).
   Fig 5: Installing Cam Ring To Pump Body

   Courtesy of SUZUKI OF AMERICA CORP.
9. Apply power steering fluid to each vane (2).
10. Install vanes (12 pieces) (2) to rotor (1).
    Fig 6: Installing Vanes To Rotor

    Courtesy of SUZUKI OF AMERICA CORP.
11. Apply power steering fluid to O-ring (1).
12. Install O-ring (1) to pump body.

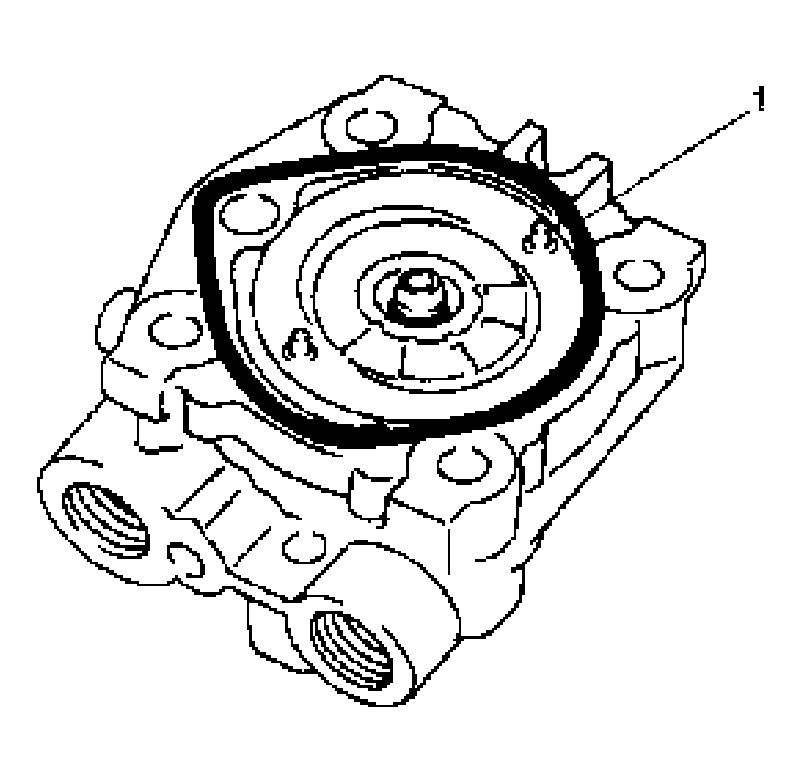

    Fig 7: Installing O-Ring To Pump Body

    Courtesy of SUZUKI OF AMERICA CORP.

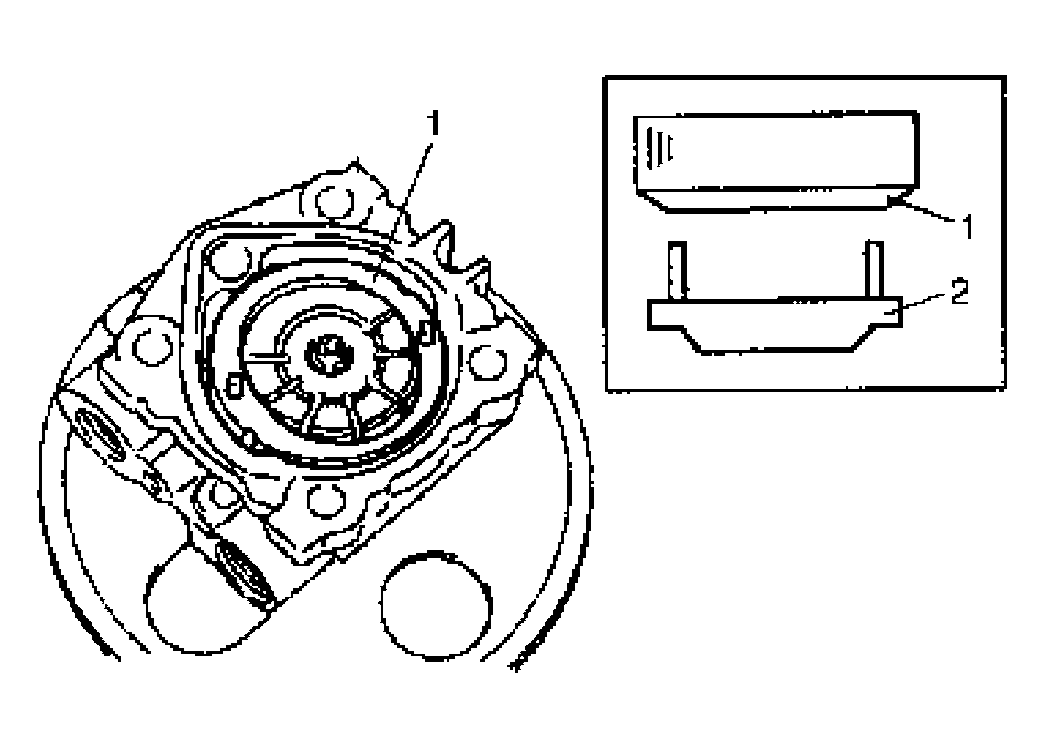

13. Apply power steering fluid to sliding surface of pump cover and rotor.
14. Match the dowel pins (1) to the holes of the cover plate (2) as shown and install pump cover to pump body.

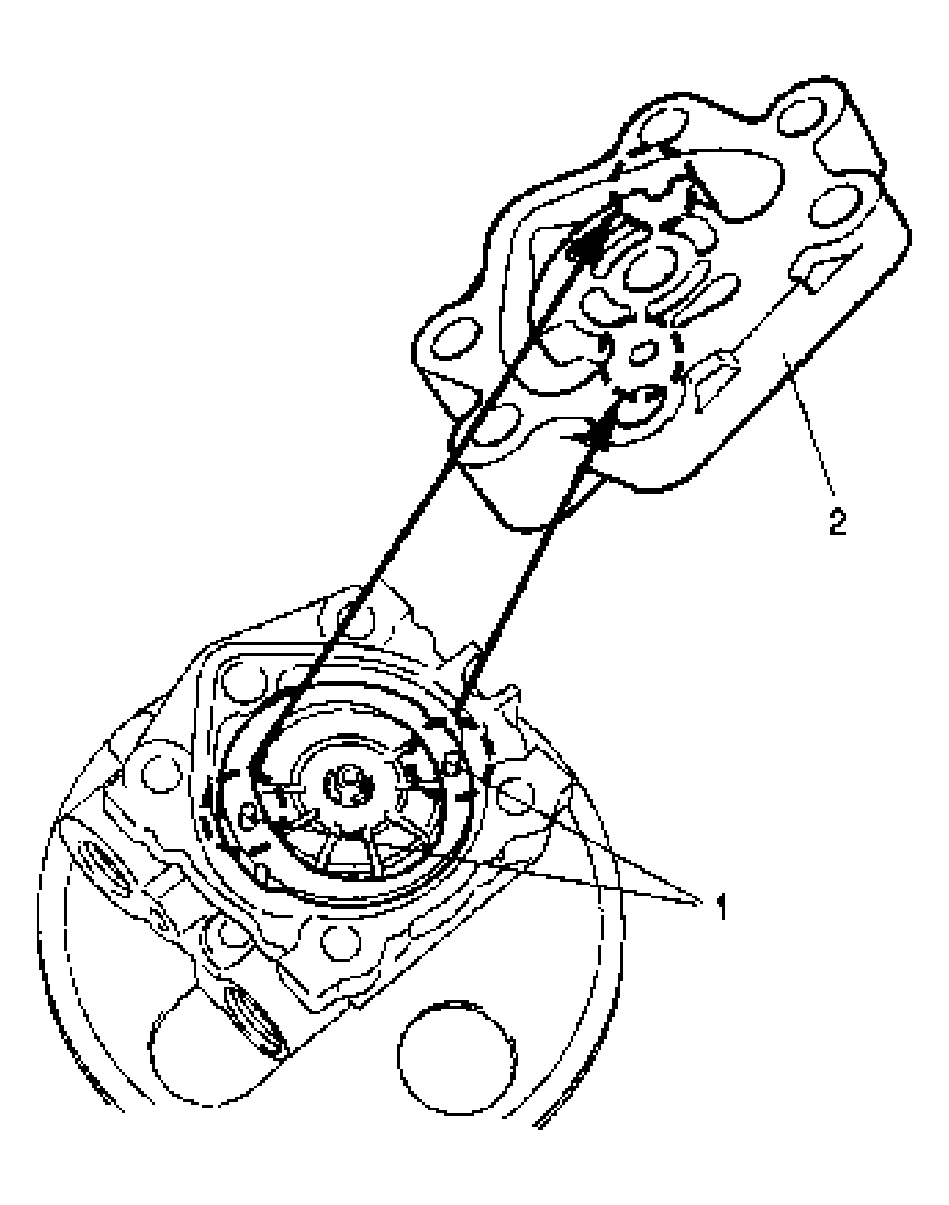

    Fig 8: Matching Dowel Pins To Holes Of Cover Plate

    Courtesy of SUZUKI OF AMERICA CORP.
15. Gradually tighten pump cover bolts to specified torque.
    NOTE: After installing pump cover (1), check to make sure that shaft can be turned by hand.

    Tightening torque

    Pump cover bolt (a): 28 N.m (2.8 kg-m, 20.0 lb-ft)

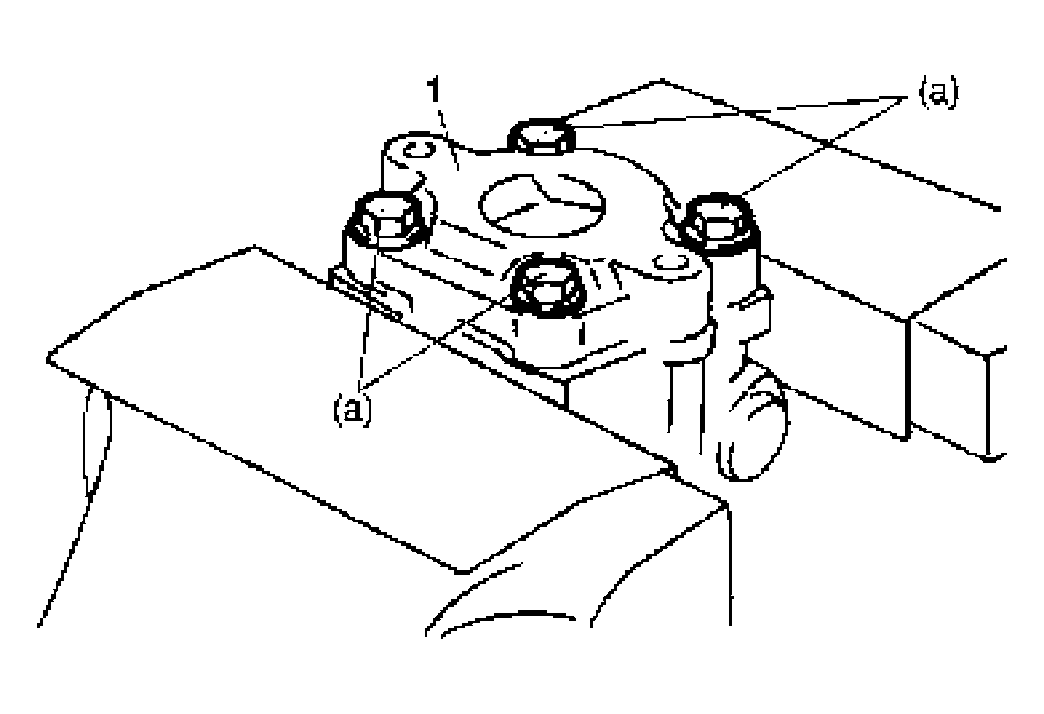

    Fig 9: Tightening Pump Cover Bolts To Specified Torque

    Courtesy of SUZUKI OF AMERICA CORP.
16. Apply power steering fluid to O-ring of terminal switch.
17. Install pressure switch (1) to pump body.

    Tightening torque

    Pressure switch (b): 28 N.m (2.8 kg-m, 20.0 lb-ft)

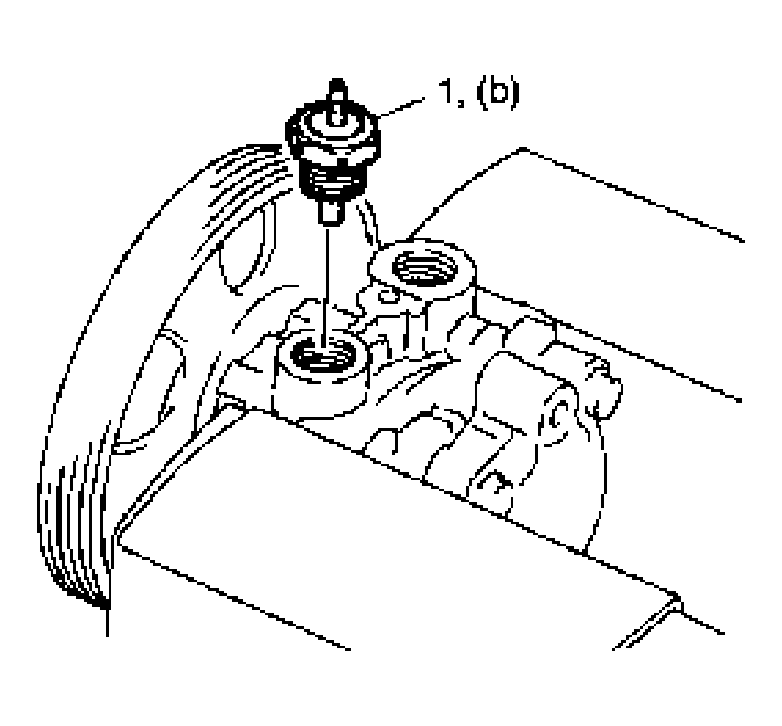

    Fig 10: Installing Pressure Switch To Pump Body

    Courtesy of SUZUKI OF AMERICA CORP.
18. Apply power steering fluid to relief valve (flow control valve).
19. Install relief valve (flow control valve) to pump body.
20. Install flow control spring.
21. Apply power steering fluid to O-rings of plug.
22. Install O-rings to plug.
23. Tighten plug (1) to specified torque.

    Tightening torque

    Plug (c): 60 N.m (6.0 kg-m, 43.5 lb-ft)

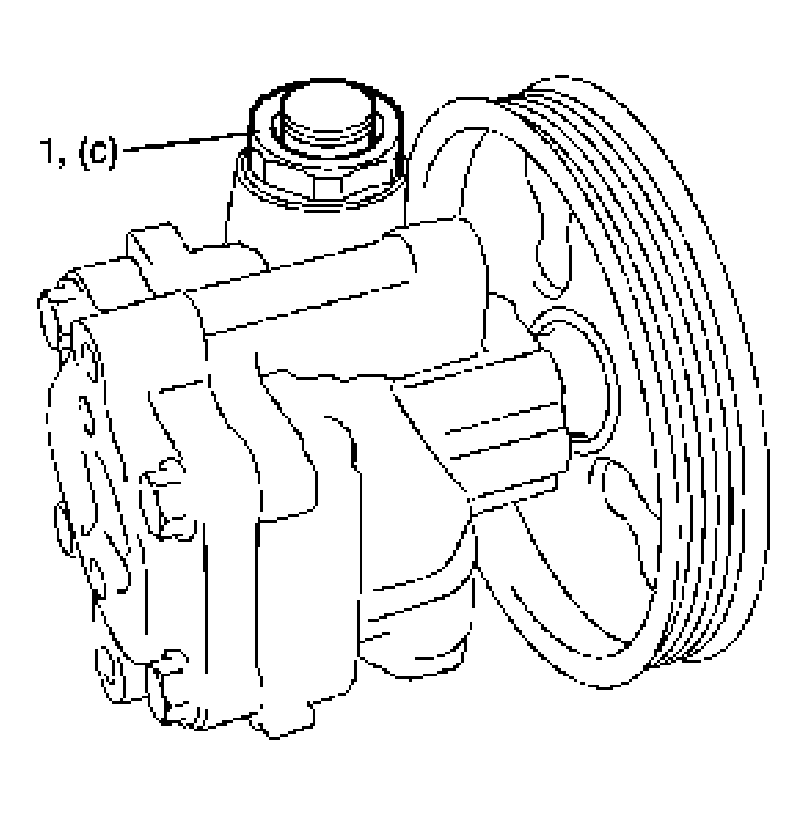

    Fig 11: Tightening Plug To Specified Torque

    Courtesy of SUZUKI OF AMERICA CORP.
24. Apply power steering fluid to O-ring (2), and install O-ring to suction connector (1).

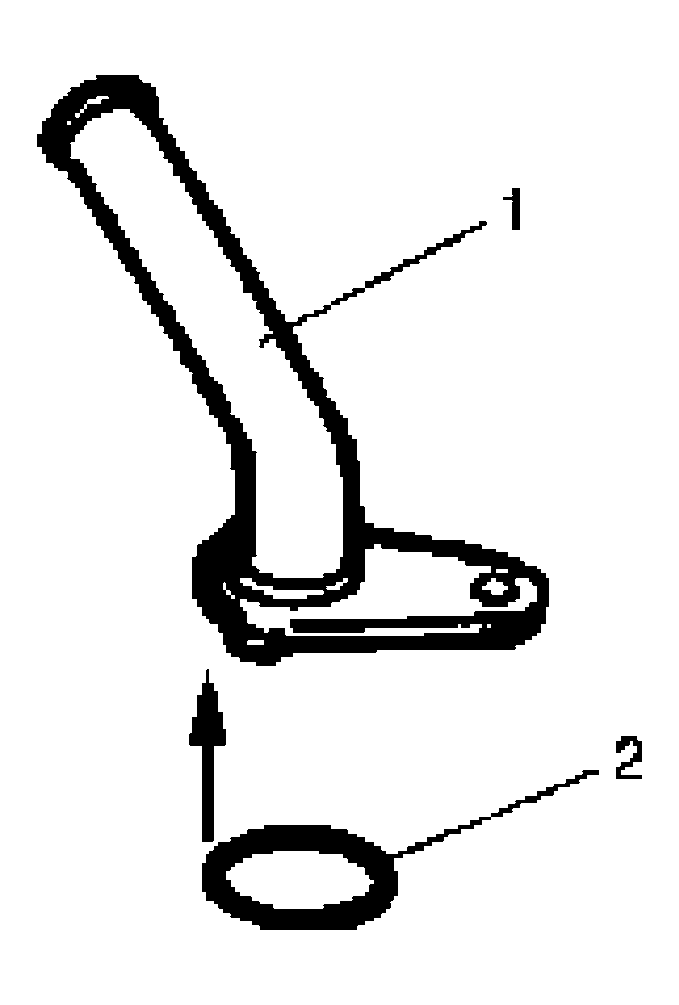

    Fig 12: Installing O-Ring To Suction Connector

    Courtesy of SUZUKI OF AMERICA CORP.

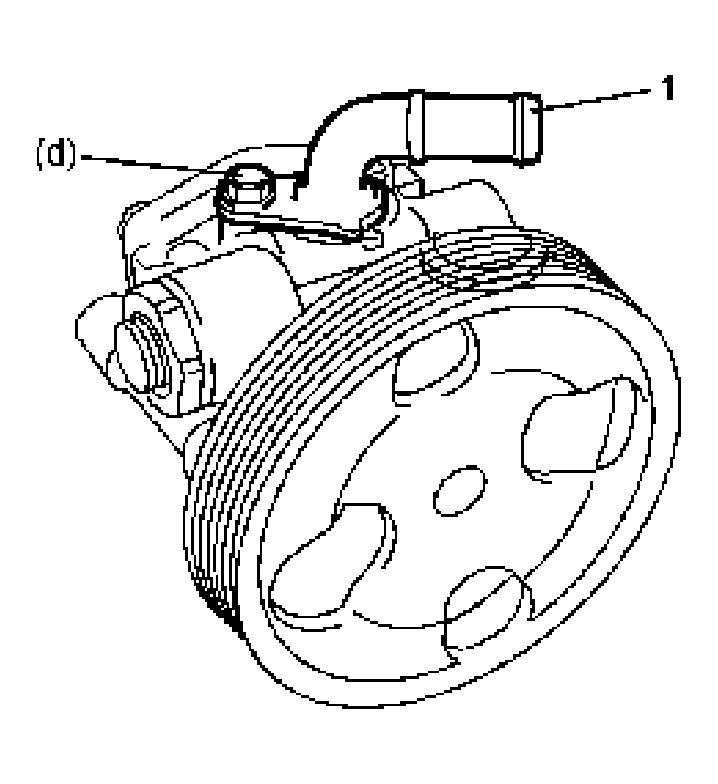

25. Install suction connector (1) to pump body as shown in figure. Tighten suction connector bolt to specified torque.

    Tightening torque

    Suction connector bolt (d): 12 N.m (1.2 kg-m, 8.5 lb-ft)

    Fig 13: Installing Suction Connector To Pump Body

    Courtesy of SUZUKI OF AMERICA CORP.
